DC1237A-B

LTC3527EUD-1 Demo Board | Dual, 1.2MHz or 2.2MHz, 0.5V ≤ V_IN ≤ 5V, V_OUT1 = 3V/3.3V/5V(800mA Switch), V_OUT2 = 1.8V/2.85V/3.3V(400mA Switch)

Buy Now

Top

Overview

Product Details

Product Details

Demonstration circuit 1237A-A (LTC3527) and 1237A-B (LTC3527-1) are dual output, high-efficiency synchronous boost converter demo boards with each having an 800mA and a 400mA power switch. With a light load, the boost converters can startup with an input voltage as low as 700mV and once started, the input can go as low as 500mV while maintaining a regulated output voltage. Jumpers set the output voltages to one of three options for each output: 3V, 3.3V or 5V for V_OUT1, and 1.8V, 2.85V or 3.3V for V_OUT2. The devices can provide 200mA at 3.3V from a 1.5V input. The LTC3527-1 actively discharges V_OUT1 or V_OUT2 when the respective SHDN pin goes low.

Applicable Parts

LTC3527

Documentation & Resources

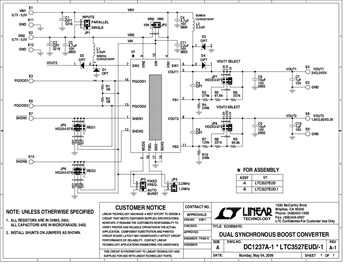

Demo Board Schematic

DC1237A - Schematic
9/24/2009

PDF

36K

User Guides

DC1237A - Demo Manual
9/24/2009

PDF

1M

Evaluation Design Files

DC1237A - Design File
9/24/2009

ZIP

912K

Software

LTspice

ASC

3.00K

LTC3527 Demo Circuit - Dual 800mA/400mA 1.2MHz/2.2MHz Synchronous Step-Up DC/DC Converter (0.7-5.5V to 3.3V @ 150mA & 1.8V @ 150mA)
