Overview

Product Details

Demonstration circuit DC1194A features the LTM8020, a 200mA DC/DC step-down μModule® regulator. The board is preset to deliver a 3.3V output at up to 200mA load current from an input voltage from 4.5V up to 36V. The output voltage may be modified by simply changing one resistor.

Applicable Parts

Documentation & Resources

  • View All (3)

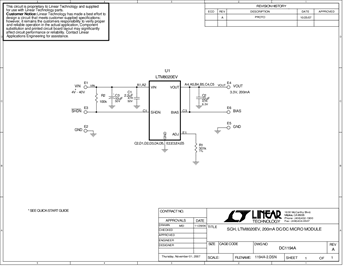

  • Demo Board Schematic (1)
  • User Guide (1)
  • Evaluation Design File (1)
