Demonstration circuit 1168 is a current mode synchronous switching regulator featuring the LTC3810-5. The circuit is configured as a synchronous step-down regulator operating at 250kHz switching frequency. Output voltage is 12V at 10A maximum load. The input voltage range is 14V to 60V.

Applicable Parts

Documentation & Resources

  • View All (3)

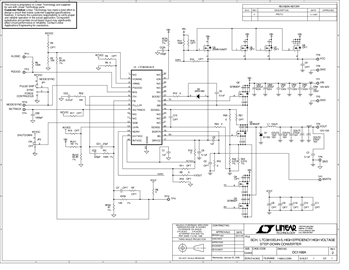

  • Demo Board Schematic (1)
