EVAL-BFFPGA-EZEXT

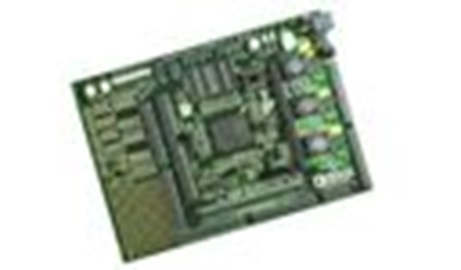

The Blackfin FPGA extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the Blackfin evaluation system with connect the Parallel Peripheral Interface (PPI) on the ADSP-BF533 EZ-KIT Lite and the ADSP-BF561 EZ-KIT Lite to a number of Analog Devices High Speed Converter (HSC) evaluation boards (ADC, mix signal, and DAC), the OV6630 OmniVision camera evaluation board, and an external LCD display. For information about compatible EZ-Board products, see the processors family's Software and Tools page.
Top
Overview
Features and Benefits
- Xilinx Spartan III FPGA (XC3S1000)
- 2MB of SRAM
- 25 MHz oscillator
- Socket for auxiliary oscillator
- Two push buttons
- Eight flag LEDs
- 7V Power Supply
- Allows quick access to Blackfin and FPGA pins for probing
- Allows access to Blackfin and FPGA pins for off-board connections
- Allows quick access to Blackfin and FPGA pins for probing
- Allows access to Blackfin and FPGA pins for off-board connections
Product Details
The Blackfin FPGA EZ-Extender daughter board aids the design and prototype phases of ADSP-BF533, ADSP-BF537 or ADSP-BF561 processor targeted applications. The board extends the evaluation system by providing a Xilinx FPGA with external memory, IDC connectors for off-board connections, and a small breadboard area. Applications and information about the use and connection of the various interfaces on the Blackfin FPGA EZ-Extender are available from Analog Devices.
Available:
Available now
Part Number:
ADZS-BFFPGA-EZEXT
Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
For additional information, contact your local Analog Devices Sales Office or Distributor.
Package Contents
- Blackfin FPGA EZ-Extender
- (plugs directly onto the expansion interface of the ADSP-BF533, ADSP-BF537, or ADSP-BF561 EZ-KIT Lite boards)
System Requirements
- Windows® 2000 SP4, Windows XP SP2, Windows Vista™ or (from update 7) Windows 7 Business/ Enterprise/ Ultimate editions
- Intel Pentium® processor (x86 compatible), 1 GHz or faster
- 512 MB RAM and 2 GB available hard disk space
- VisualDSP++ 5.0
Documentation & Resources
-
Blackfin® FPGA EZ-Extender® Manual (Rev. 2.1)7/26/2006PDF694 kB
-
HPUSB, USB, and HPPCI Emulator User’s Guide (Rev. 3.2)11/11/2009PDF746 kB
-
ICE-100B Emulator User’s Guide (Rev. 1.1)11/11/2009PDF348 kB
-
Getting Started With Blackfin Processors (Rev. 6.0)6/16/2016PDF3 M
-
