ADIsimRF™ is an easy to use RF signal chain calculator. It calculates signal levels, distortion, and noise for signal chains with up to 50 elements. Data are presented in tabular and graphical form and can be plotted vs. input power, gain, and frequency. Data can also be exported to Excel.

ADIsimRF includes frequency-dependent device models for most of ADI’s RF components, along with many DACs and ADCs and some transformers and filters from third-party vendors. To assist in device selection, component selection tables are included along with a device selection wizard.

Contact us at if you have any questions or comments on the ADIsimRF signal chain calculator.

Download ADIsimRF

*Requires Windows 7 or later and Microsoft .NET Framework 4 Client Profile (x86 and x64).

Key Features

  • Mix and match RF components to easily visualize signal levels, distortion, and noise for complex RF signal chains
  • Powerful frequency-dependent models of most ADI RF components
  • Quickly view data and visualize design trade-offs

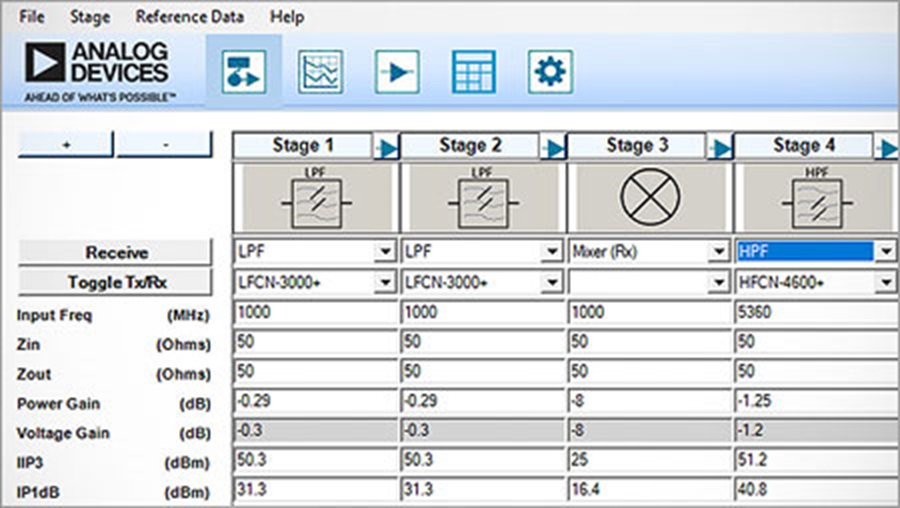

Select from a wide variety of RF components to create a complex signal chain. Modeled components include LNA, filters, amplifiers, attenuators, and more.

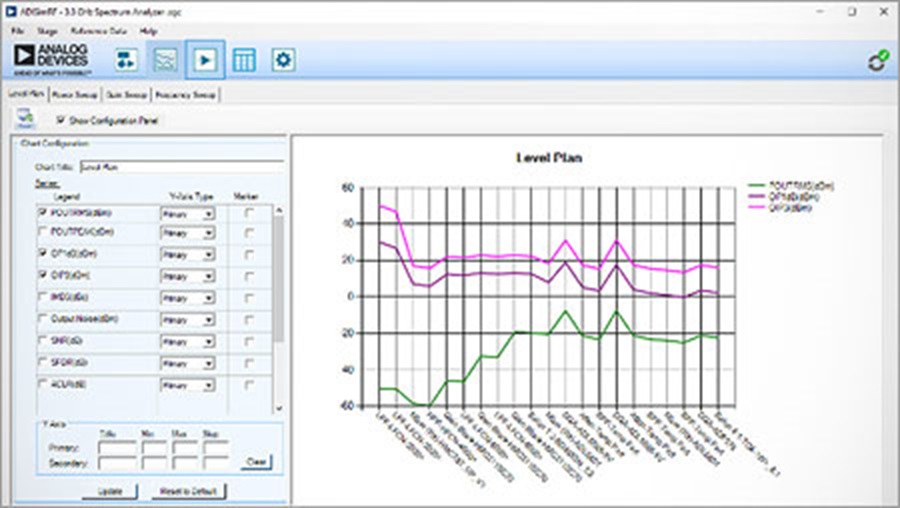

Instantly view level plan, power sweep, gain sweep, or frequency sweep data. Data can be exported to Excel for further analysis.


Introduction to ADIsimRF

To watch more educational videos on how to use ADIsimRF, visit the ADIsimRF video series page.
