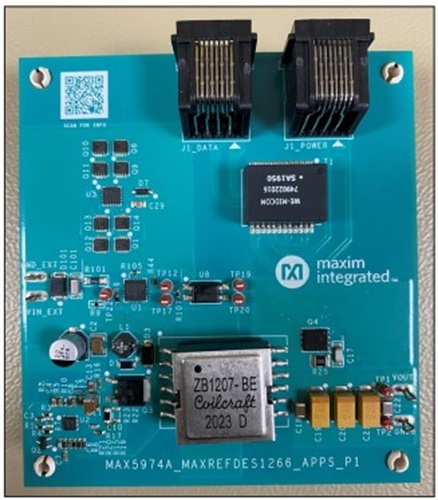

图示的电路板已装配完成且经过测试。

概览

设计资源

设计集成文件

  • Schematic
  • PCB Layout
  • BOM
  • Test Results
下载设计文件 1.69 M

描述

The MAXREFDES1266 is a 65W, 24V Power-over-Ethernet (POE) solution that delivers up to 2.7A load current. The design is optimized for applications with a 37V to 57V input voltage range. The design is a fully assembled, surface-mount circuit board featuring an Ethernet port, network-powered device (PD) interface controller, and a downstream CCM flyback converter. The design receives power from an IEEE® 802.3bt-compliant power-sourcing equipment (PSE).

The MAXREFDES1266 employs a MAX5974A fixed-frequency, current-mode PWM controller in continuous mode flyback configuration. The MAX5974A features unique circuitry to achieve output regulation without using an optocoupler. The device features a unique feed-forward maximum duty-cycle clamp that makes the maximum clamp voltage during transient conditions independent of the line voltage, allowing the use of a power MOSFET with lower breakdown voltage. The programmable frequency dithering feature provides low-EMI, spread-spectrum operation.

The MAX5995B is used to provide a complete interface for a PD to comply with the IEEE 802.3bt standard in a POE system. It provides the PD with a detection signature, classification signature, and an integrated isolation power switch with startup inrush current control. The devices support a multi-event classification method, as specified in the IEEE 802.3bt standard. They provide a signal to indicate a Type 1 to Type 4 PSE. The devices can detect the presence of a wall adapter power source connection and allow a smooth switchover from the PoE power source to the wall power adapter. The devices also provide a power-good (PG) signal, two-step current limit, and foldback control and overtemperature protection.

优势和特点

Features

  • Wide 37V to 57V input voltage range
  • Highly regulated output voltage with ±1% ripple
  • IEEE 802.3bt-compliant PD interface
  • Multi-event classification
  • Demonstrates a 65W PD design with isolated CCM flyback topology DC-DC converter
  • 24V output at 2.7A
  • Startup inrush current limit of 135mA (typ)
  • Flyback controller internal UVLO at +16V
  • Reduced BOM cost by employing primary sensing feedback
  • High-efficiency flyback design using synchronous rectification

Applications

  • Industrial Power Supplies
  • Access Control
  • E-Buildings
  • POE-Enabled Devices (e.g., IP phone, IP camera)
