概览

优势和特点

  • 2-phase stepper motor up to 2.1ARMS coil current (3APEAK)
  • Supply Voltage: 12V to 31V DC
  • SPI, RS485, and UART (optional) interface
  • TMCL™ and Modbus protocol stack
  • Integrated stepper motor driver
  • Integrated 8-point motion controller
  • Encoder interface and reference switch input
  • StealthChop2, CoolStep, StallGuard2, SpreadCycle Support
  • Analog and Digital IO

产品详情

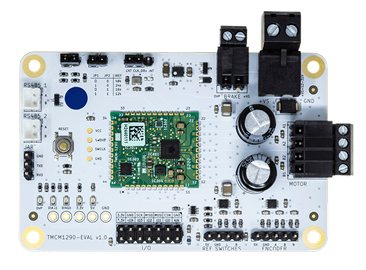

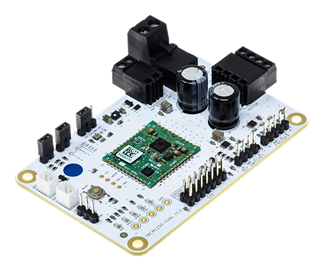

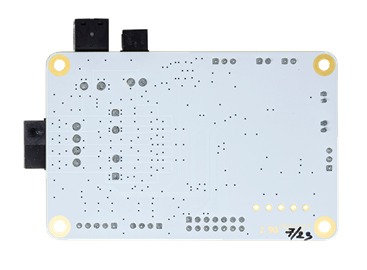

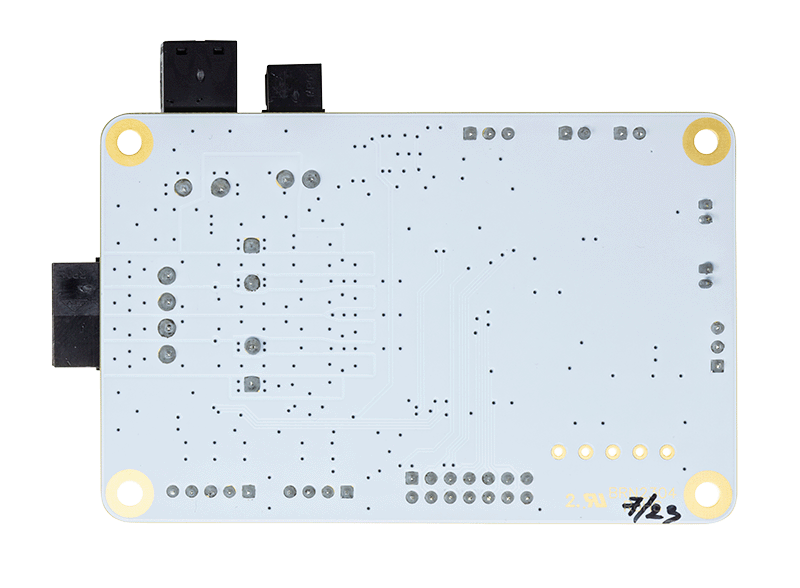

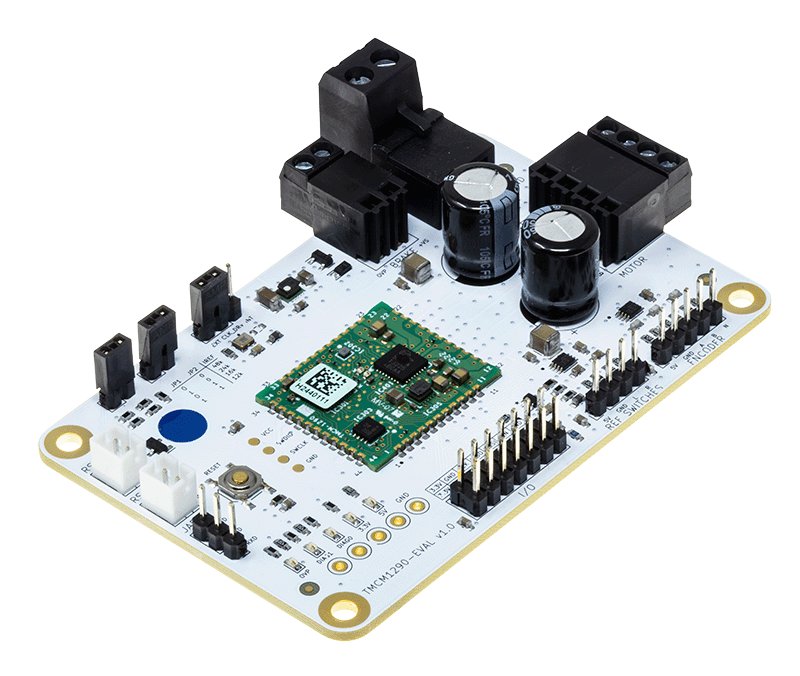

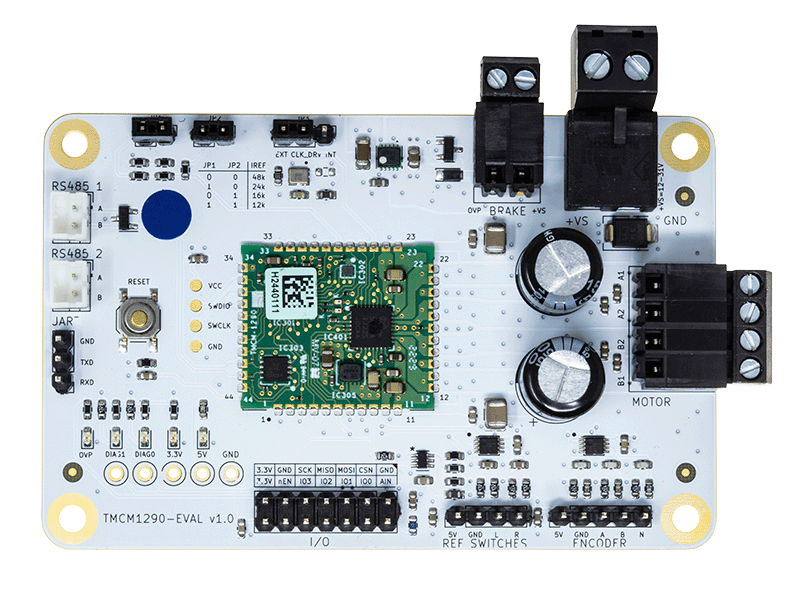

The TMCM-1290-EVAL evaluates the TMCM-1290 as a standalone board with TMCL-IDE evaluation capabilities. It uses the standard schematic and offers several options to test different modes of operation. The TMCM-1290 is a module for two-phase bipolar stepper motors up to 2.1ARMS (3APEAK). It can be con gured through an SPI/RS485/UART interface option.

APPLICATIONS

  • Broad Market
  • System Integrators
  • Lab Automation
  • Textile
  • Packaging
  • Life Sciences
  • Semiconductor Handling
  • Pumps and Motor Drives
  • Multi-Axis Applications
