概览
优势和特点
- TMC7300-LA low voltage DC motor driver
- Supply voltage 2-11V DC
- 2x DC motors at 1.2A (rms) or 1x DC motor at 2.4A (rms)
- UART interface for configuration and control with address setting
- Enable input and diagnosis output
- Low power standby mode
- Small size QFN package
- Board width 1.0", board height 0.8"
- 2x8 pin 0.1" header rows for pins/connectors
- 2A, 2 to 11V
产品详情

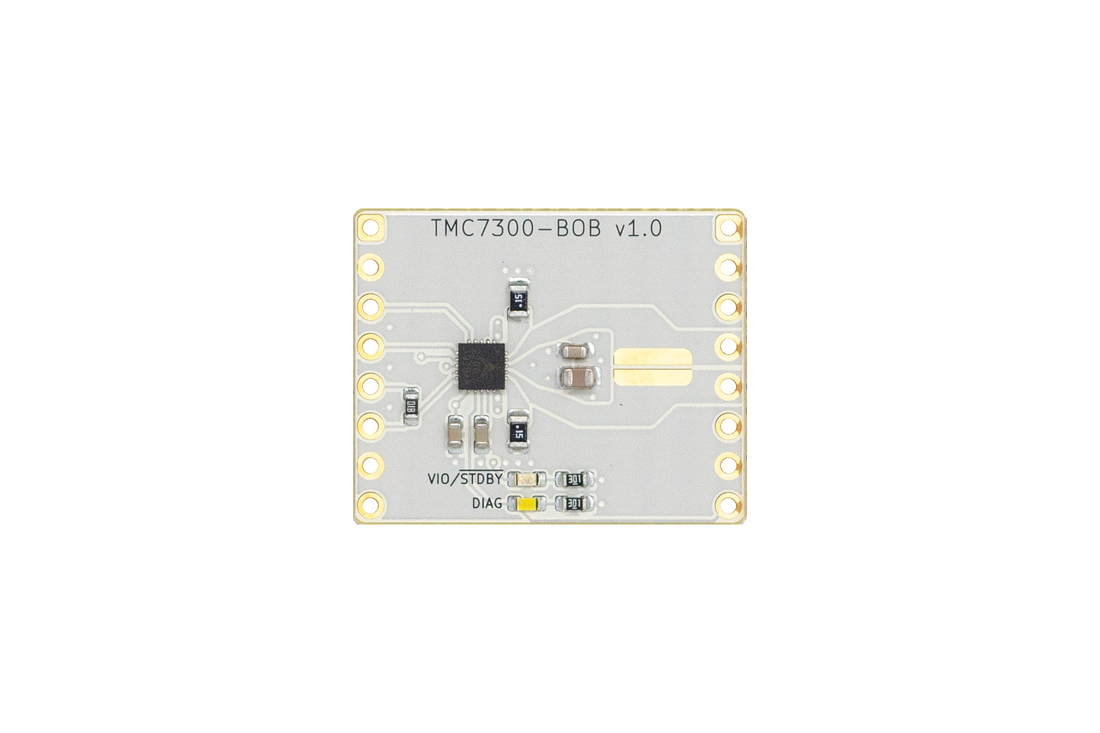

The TMC7300 breakout board is a development board with the dedicated TMC7300-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
相关产品
文档
-
TMC7300-BOB User Manual (Rev. 1.00)2021/2/1PDF676 K
-
TMC7300 Data Sheet (Rev. 1.08)2022/4/20PDF1M
-
Tmc7300 Bob Fabrication Data - Design Files (Rev. 1.0)2020/1/28ZIP109K
-
Tmc7300 Bob Layout Data - Design Files (Rev. 1.0)2020/1/28ZIP4M
-
Tmc7300 Bob Cad Files - Design Files (Rev. 1.0)2020/1/28ZIP105K
-
Tmc7300 Bob Bom - Design Files (Rev. 1.0)2020/1/28XLSX19K
