概览

优势和特点

  • Full-featured evaluation board for the ADRF5203
  • Easy connection to the test equipment
  • Thru line for calibration

产品详情

The ADRF5203 is a differential SPDT switch with DC input range ±8V manufactured in the silicon process.

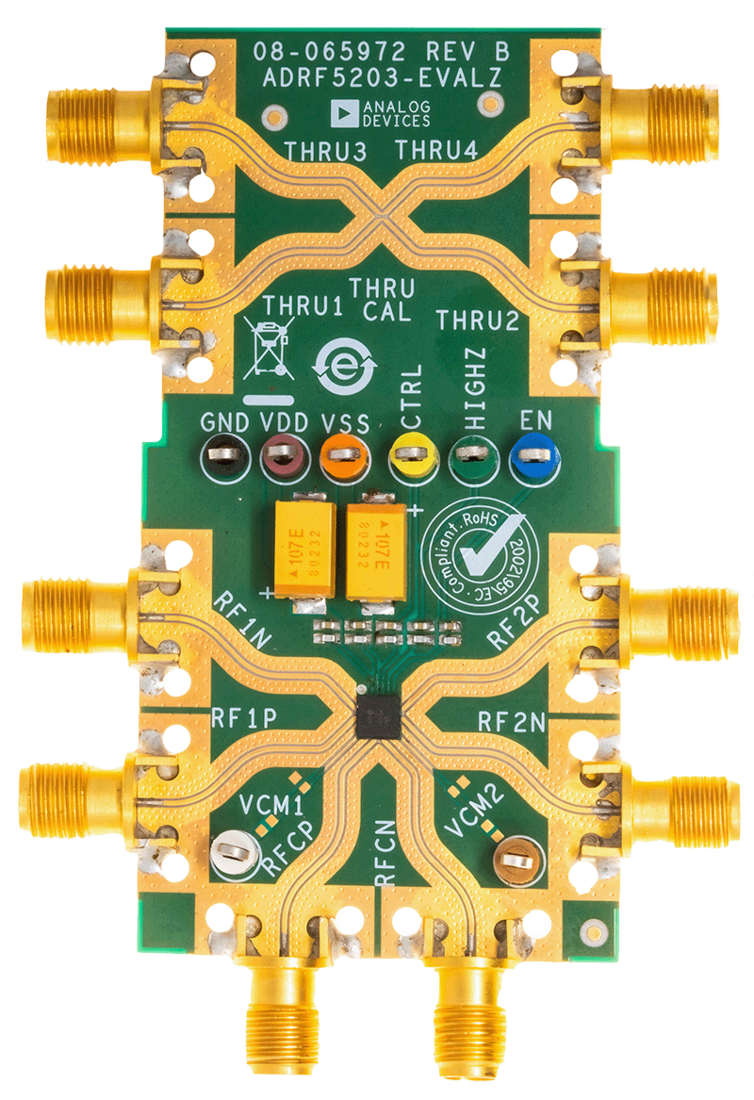

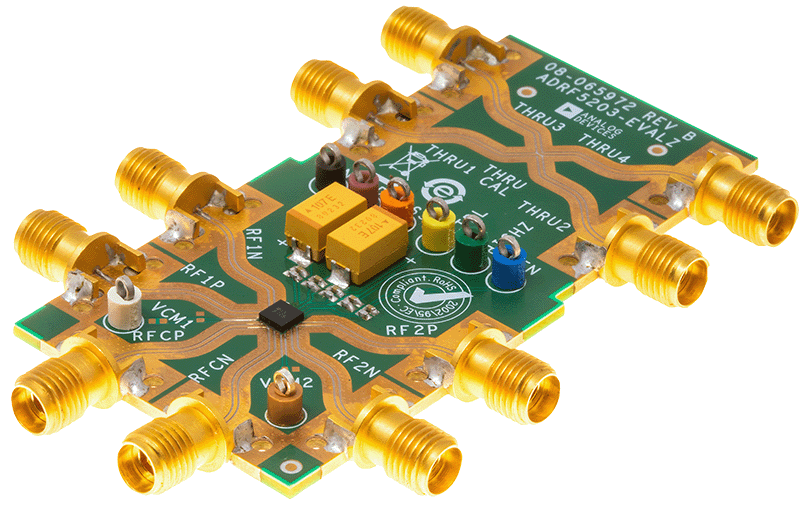

This user guide describes the ADRF5203-EVALZ evaluation board, designed to evaluate the features and performance of the ADRF5203. Figure 1 shows a photograph of the evaluation board.

Full specifications on the ADRF5203 are available in the ADRF5203 data sheet from Analog Devices, Inc. Consult the data sheet with this user guide when using the ADRF5203-EVALZ evaluation board.

相关产品

使用入门

EQUIPMENT NEEDED

  • DC power supplies
  • Network analyzer
