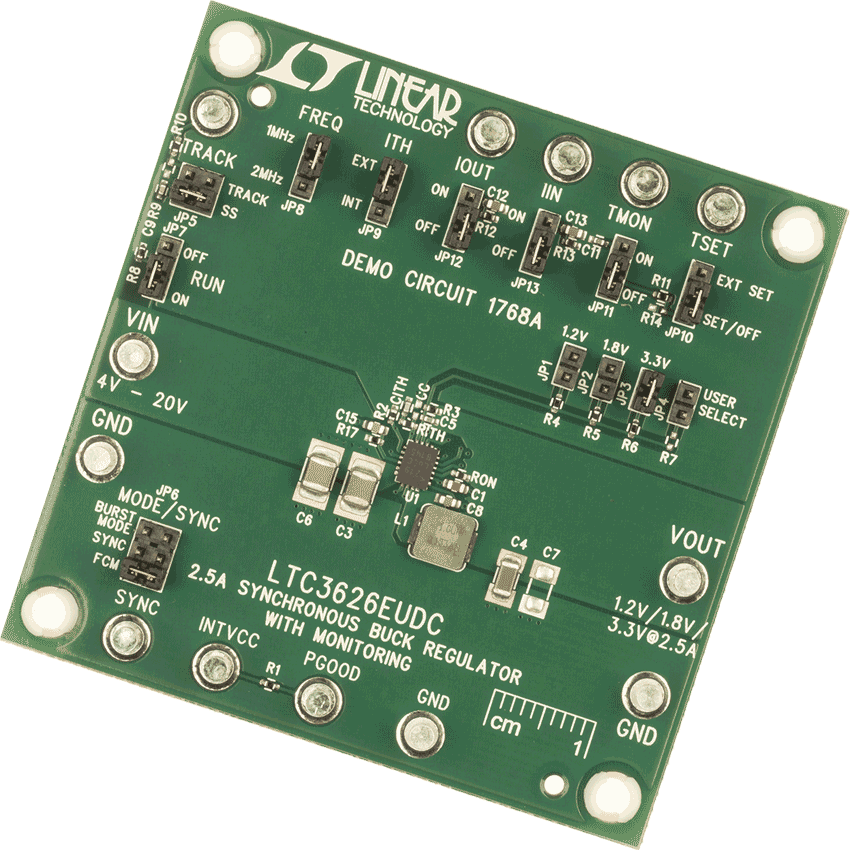

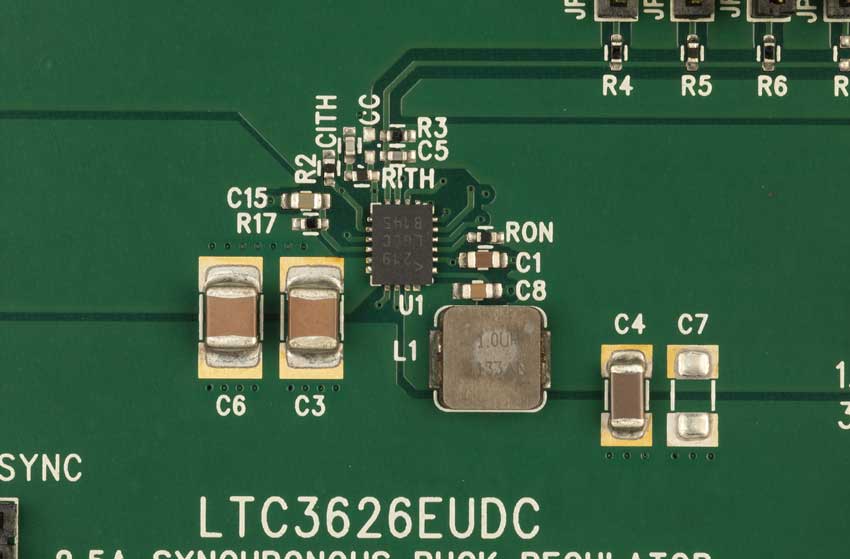

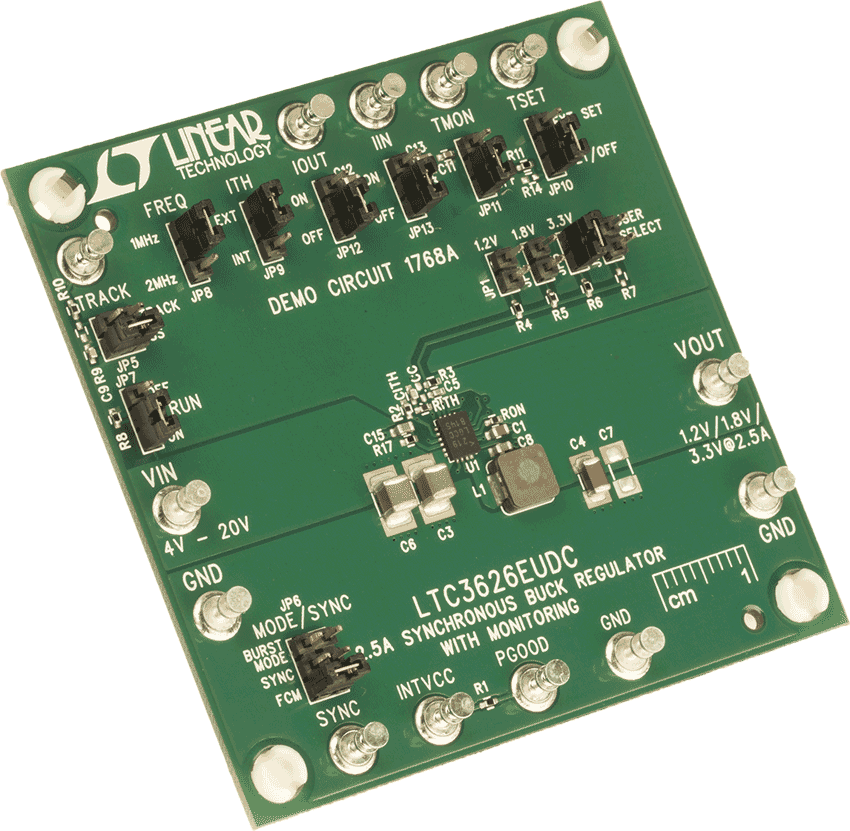

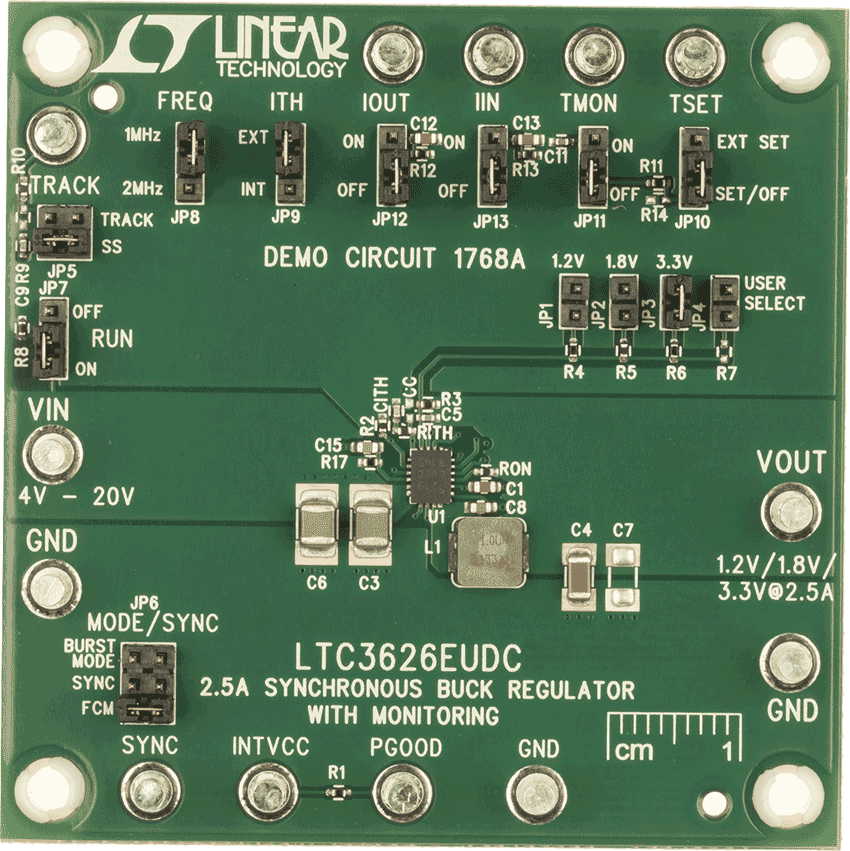

DC1768A
LTC3626EUDC Demo Board | 3.6V ≤ VIN ≤ 20V, VOUT = 0.6V @ 6V 2.5A, Current and Temp Monitoring
顶部
概览
产品详情
Demonstration circuit 1768A is a step-down converter, using the LTC3626 monolithic synchronous buck regulator, which has current and temperature monitoring capabilities. The 1768A has an input voltage range of 3.6V to 20V, and is capable of delivering up to 2.5A of output current. The output voltage range of the 1768A is 6V down to 0.6V.
相关产品
文档
-

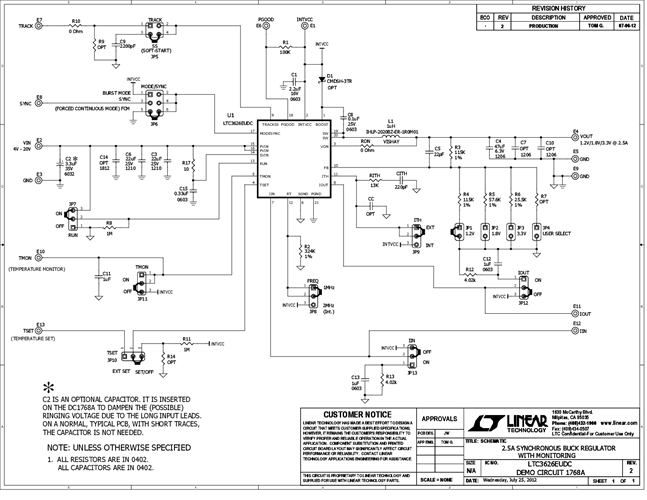

DC1768A - Schematic2012/10/10PDF66K
-
DC1768A - Demo Manual2013/3/14PDF510K
-
DC1768A - Design Files2012/10/10ZIP903K
-
