DC1332A-D

OBSOLETE: LTC2631-HZ12 12-Bit I²C DAC (4.096V ref, Reset to Zero-Scale) (requires DC590B)

顶部

概览

产品详情

产品详情

This evaluation board is obsolete and no longer recommended. The replacement board is the DC1332B.

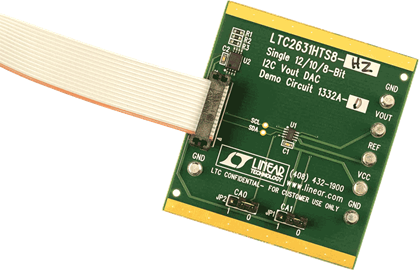

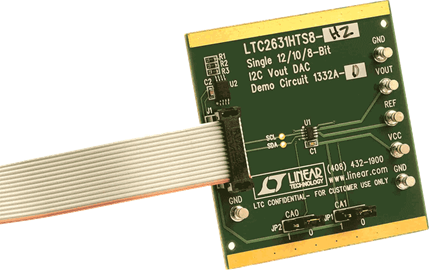

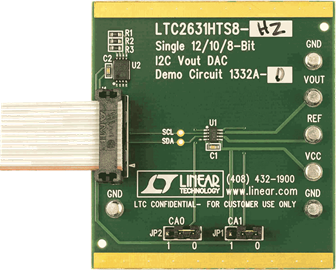

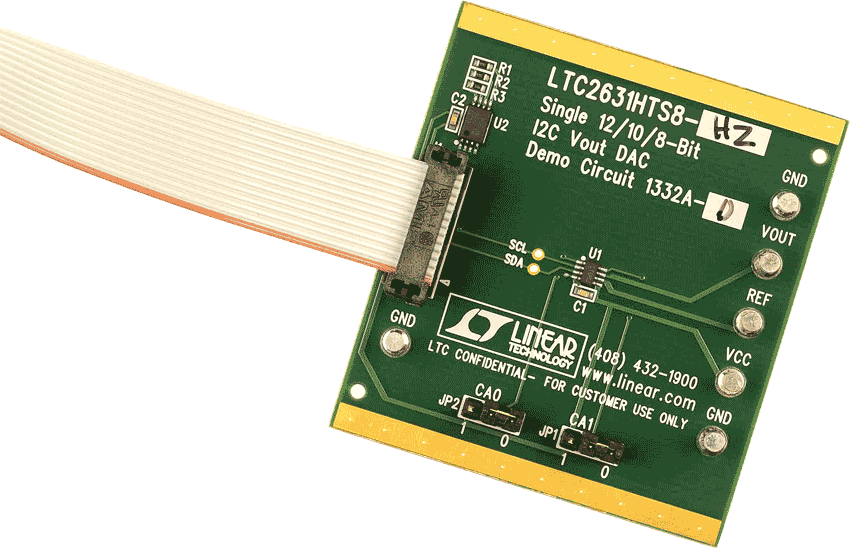

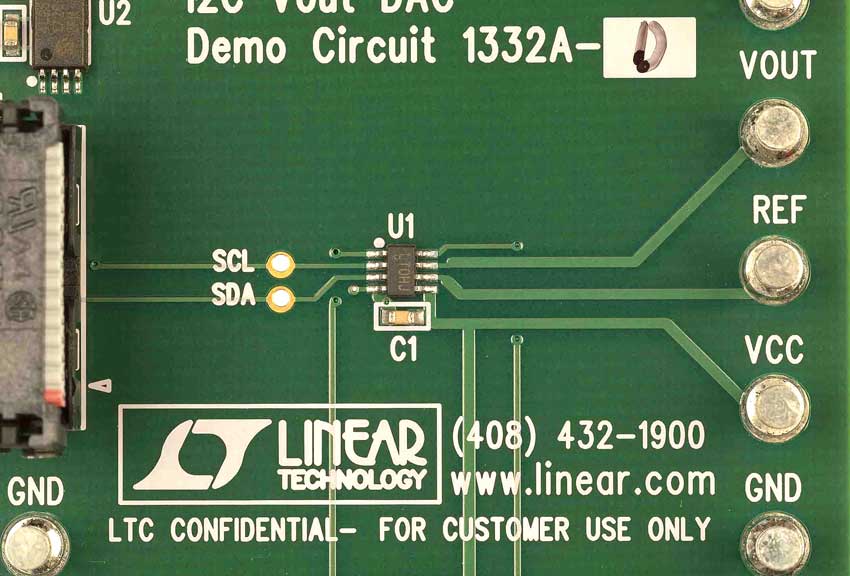

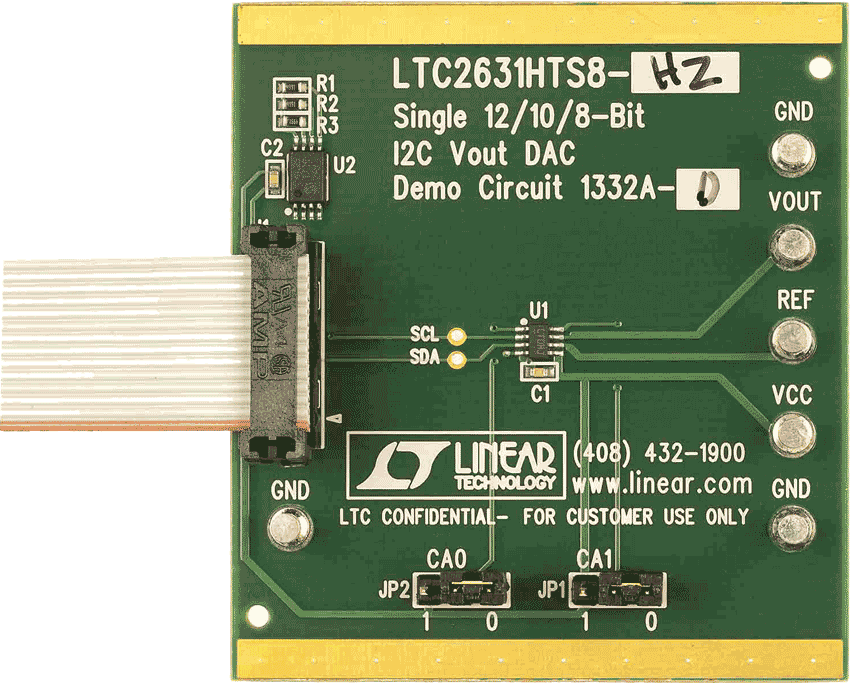

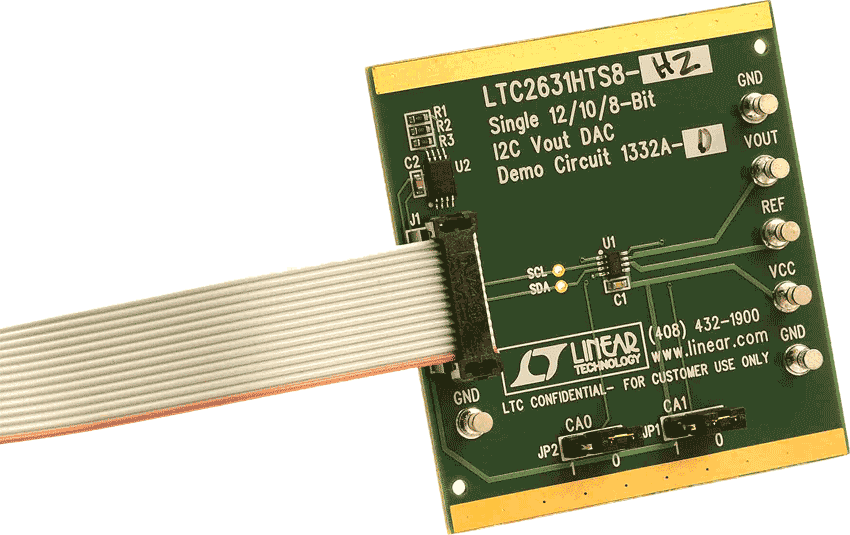

DC1332A-D: Demo Board for LTC2631 - Single 12-/10-/8-Bit I²C V_OUT DACs with 10ppm/°C Reference

相关产品

LTC2631

文档

演示板原理图

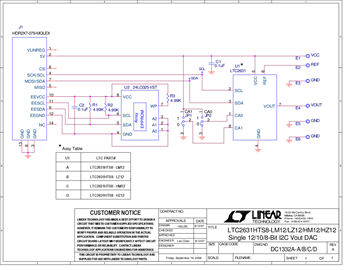

DC1332A - Schematic
2009/9/24

PDF

36K

用户手册

DC1332A - Demo Manual
2013/5/30

PDF

433K

评估设计文件

DC1332A - Design File
2009/9/24

ZIP

467K
