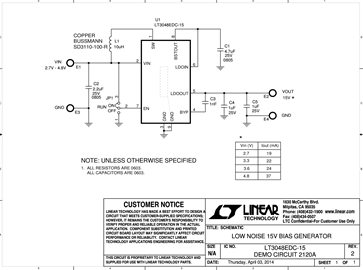

DC2120A - Schematic4/14/2014PDF25K
DC2120A
LT3048-15 Demo Board | Boost with Integrated Schottky and Post-Regulator LDO, 2.7V ≤ VIN ≤ 4.8V, 15VOUT @ up to 35mA
顶部
概览
产品详情
Demonstration circuit 2120A features the LT3048-15, a Boost DC/DC Converter with integrated Schottky diode and LDO in a 2mm × 2mm DFN package. This demo board is designed to convert a 2.7V to 4.8V input to a 15V output at 19mA to 35mA with low output ripple and noise. The LT3048-15 is programmed for 2MHz switching frequency.
相关产品
文档
-
DC2120A - Demo Manual4/14/2014PDF266K
-
DC2120A - Design Files4/14/2014ZIP1M
