User Guide Rev. 0
1 View All

Overview

Features and Benefits

  • Proven PCB Design and Layout Benefit
  • Fully Assembled and Tested
  • Sense Points Provided for High-Accuracy Measurements
  • MAXUSB_INTERFACE# Enables Easy Communication with a Windows PC
  • ACE Software Supports the I2C Serial Interface for Optional Software Control
  • I2C Interface Controls Enable (EN) Function, Ultrasonic Mode (USM), and Output Voltage

Product Details

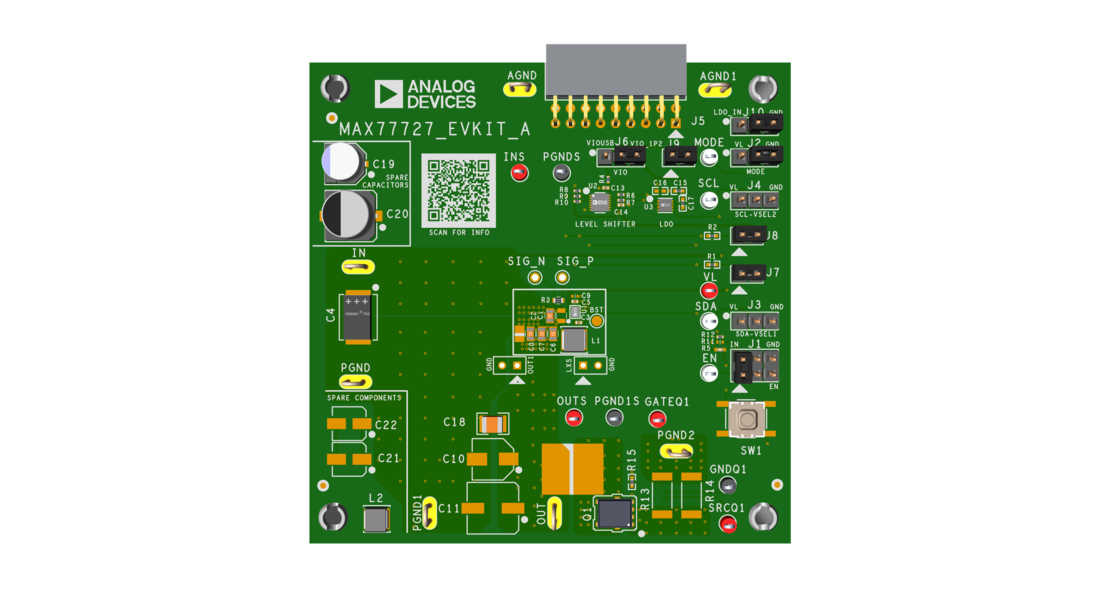

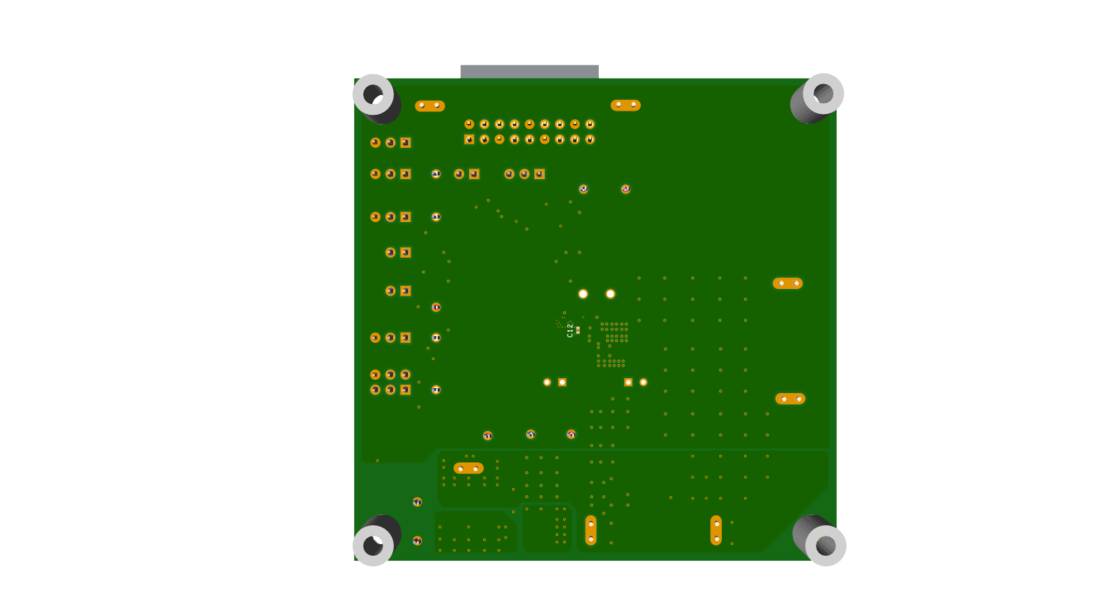

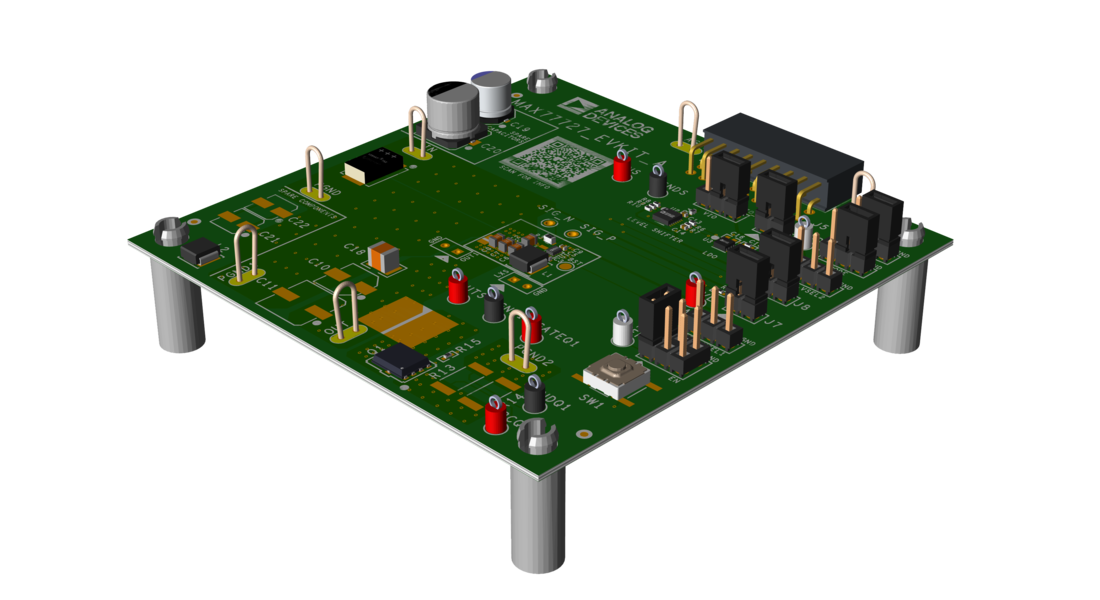

The MAX77727 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77727 synchronous buck converter with ultrasonic mode.

The EV kit is a step-down voltage regulator circuit based on the MAX77727. It supports an input voltage range from 3.6V to 22V and delivers up to 3A of continuous load current. The output voltage is adjustable through I2C, ranging from 1.8V to 4.9V with 100mV resolution and from 5V to 15V with 250mV resolution. F
