Custom Modules

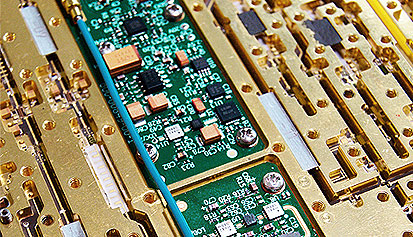

Uniquely Positioned Module Solutions

ADI is well known for our silicon (Si) and gallium arsenide (GaAs) based semiconductor expertise, and we're also being recognized for advancements in high-power gallium nitride (GaN) designs. Our Module and LRU designers engage with our customers’ design teams to develop solutions that are AHEAD OF WHAT’S POSSIBLE™. When you work with Analog Devices, you benefit from:

  • Decades of leadership in integrated solutions
  • The industry’s broadest component portfolio
  • Custom MMICs which enable highly-optimized solutions
  • Digital through millimeter-wave module experience

Three Levels of Integration

Line-Replaceable Unit (LRU)
Multi-Chip Packages
Custom MMICs

Our ability to integrate at any level makes ADI uniquely qualified to help you attain optimal performance, SWaP and reliability. With complete control of the process from the bare die to the manufacturing of key components, we can ensure superior obsolescence management and product lifecycle support.

Module Production, Reliability & Quality Assurance

Our module testing personnel are trained and equipped to accurately characterize digital and microwave modules for all parameters and for bands up to 110GHz. We also maintain a complete environmental testing facility for acceleration, shock, vibration, gross and fine leak testing, temperature cycling, burn-in, and other factors.

ADI’s state-of-the-art ISO9001 and AS9100 manufacturing facilities meet the demands for highly integrated, cost-effective chip and wire and surface mount assemblies. Our manufacturing and screening standards conform to MIL-PRF-38534/5 and MIL-STD-883.

We maintain Class 100,000 clean rooms for assembly and testing, as well as several Class 100 work areas devoted to testing and inspection of S-level products.

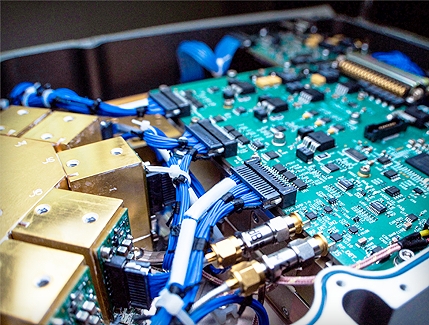

A History of Proven Innovation & Integration

ADI’s Custom Module operation combines decades of leadership in integrated solutions with the industry’s broadest component portfolio. We are uniquely positioned to create highly optimized standard or custom module solutions covering digital through millimeter wave applications.

With our component expertise, we can create perfectly tailored and highly reliable module solutions for your most challenging design requirements. Our ability to integrate on-chip, in-package and at the Line-Replaceable Unit (LRU) level makes ADI uniquely qualified to help you attain the best performance, SWaP and reliability possible

We have complete control of the process, from the bare die to the manufacturing of key components within our modules, which ensures unprecedented obsolescence management and product lifecycle support.

board image
