ADV7281
10-Bit, 4× Oversampled SDTV Video Decoder Decoder with Differential Inputs
Top
Alternative Parts
Overview
Features and Benefits
- Worldwide NTSC/PAL/SECAM color demodulation support
- One 10-bit analog-to-digital converter (ADC), 4× oversampling per channel for CVBS, Y/C, and YPrPb modes
- Analog video input channels with on-chip antialiasing filter
ADV7281: up to 4 input channels
ADV7281-M: up to 6 input channels
ADV7281-MA: up to 8 input channels - Video input support for CVBS (composite), Y/C (S-Video), and YPrPb (component)
- Short-to-battery (STB) diagnostics on 2 video inputs (ADV7281 and ADV7281-M only)
- Up to 4 V common-mode input range solution
- Excellent common-mode noise rejection capabilities
- 5-line adaptive 2D comb filter and CTI/DNR video enhancement
- Adaptive Digital Line Length Tracking (ADLLT), signal processing, and enhanced FIFO management provide mini-time base correction (TBC) functionality
- See data sheet for additional features
Product Details
The ADV7281 / ADV7281-M / ADV7281-MA are versatile one-chip, multiformat video decoders. The ADV7281/ ADV7281-M/ADV7281-MA automatically detect standard analog baseband video signals compatible with worldwide NTSC, PAL, and SECAM standards in the form of composite, S-Video, and component video.
The ADV7281 converts the analog video signals into a YCrCb 4:2:2 video data stream that is compatible with the 8-bit ITU-R BT.656 interface standard.
The ADV7281-M / ADV7281-MA convert the analog video signals into an 8-bit YCrCb 4:2:2 video data stream that is output over a mobile industry processor interface (MIPI®) CSI-2 interface.
The analog video inputs of the ADV7281 / ADV7281-M / ADV7281-MA accept single-ended, pseudo differential, and fully differential signals. The ADV7281 provides four analog inputs and two STB diagnostic pins. The ADV7281-M provides six analog inputs, two STB diagnostic pins, and three general-purpose outputs. The ADV7281-MA provides eight analog inputs and three general-purpose outputs.
The ADV7281 / ADV7281-M / ADV7281-MA are programmed via a 2-wire, serial bidirectional port (I2C compatible) and are fabricated in a 1.8 V CMOS process. The LFCSP package option makes these decoders ideal for space-constrained portable applications.
APPLICATIONS
- Smartphone/multimedia handsets
- Automotive infotainment
- DVRs for video security
- Media players
Product Categories
Markets and Technologies
Product Lifecycle
Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.

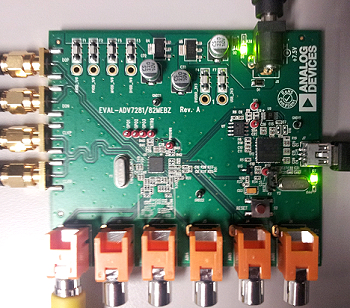

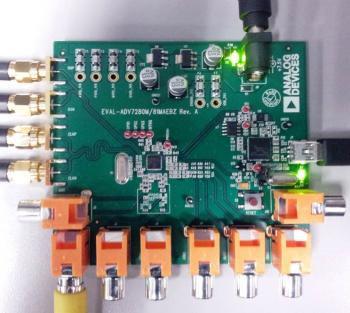

Evaluation Kits (2)
