ADuM4135
Single/Dual-Supply High-Voltage Isolated IGBT Gate Driver with Miller Clamp
Top
Overview
Features and Benefits
- 13 A short-circuit source current (0 Ω gate resistance)
- 14 A short-circuit sink current (0 Ω gate resistance)
- 4.61 A peak current (2 Ω gate resistance)
- Output power device resistance: <1 Ω
- Desaturation protection
- Isolated desaturation fault reporting
- Soft shutdown on fault
- Miller clamp output with gate sense input
- Isolated fault and ready functions
- Low propagation delay: 55 ns typical
- Minimum pulse width: 50 ns
- Operating temperature range: −40°C to +125°C
- Output voltage range to 30 V
- Input voltage range from 2.5 V to 6 V
- Output and input undervoltage lockout (UVLO)
- Creepage distance: 7.8 mm minimum
- 100 kV/μs common-mode transient immunity (CMTI)
- 20-year lifetime for 600 V rms or 1092 V dc working voltage
- Safety and regulatory approvals
- 5 kV ac for 1 minute per UL 1577
- CSA Component Acceptance Notice 5A
- DIN VDE V 0884-11:2017-01
- VIORM = 849 V peak (reinforced)
- Qualified for automotive applications
Product Details
The ADuM4135 is a single-channel gate driver specifically optimized for driving insulated gate bipolar transistors (IGBTs). Analog Devices, Inc., iCoupler® technology provides isolation between the input signal and the output gate drive.
The ADuM4135 includes a Miller clamp to provide robust IGBT turn-off with a single-rail supply when the gate voltage drops below 2 V (typical). Operation with unipolar or bipolar secondary supplies is possible, with or without the Miller clamp operation.
The Analog Devices chip scale transformers also provide isolated communication of control information between the high voltage and low voltage domains of the chip. Information on the status of the chip can be read back from dedicated outputs. Control of resetting the device after a fault on the secondary is performed on the primary side of the device.
Integrated onto the ADuM4135 is a desaturation detection circuit that provides protection against high voltage short-circuit IGBT operation. The desaturation protection contains noise reducing features such as a 370 ns (typical) masking time after a switching event to mask voltage spikes due to initial turn-on. An internal 537 μA (typical) current source allows low device count and the internal blanking switch allows the addition of an external current source if more noise immunity is needed.
The secondary UVLO is set to 11.67 V (typical) with common IGBT threshold levels taken into consideration.
APPLICATIONS
- MOSFET/IGBT gate drivers
- PV inverters
- Motor drives
- Power supplies
- Automotive
Product Categories
Markets and Technologies
Contact your local sales or distributor to request pre-released samples of the ADUM4135XRWZ.
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

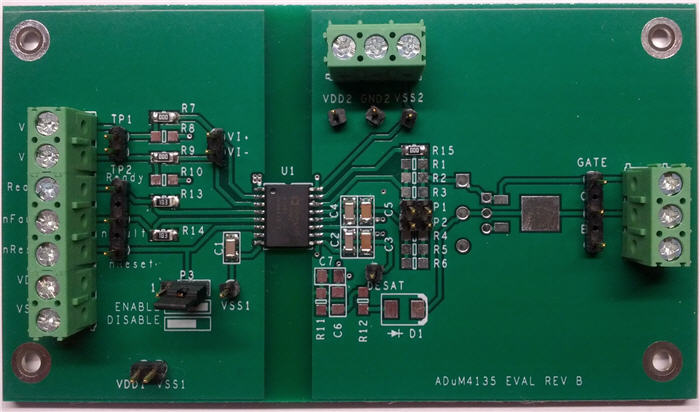

Evaluation Kits (2)
Documentation & Resources
-
AN-1316: Generating Multiple Isolated Bias Rails for IGBT Motor Drives with Flyback, SEPIC, and Ćuk Combination9/15/2020
-

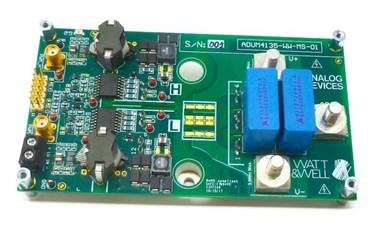

AN-1602: Using the ADuM4135 Gate Driver with the Microsemi APTGT75A120T1G 1200 V IGBT Module (Rev. 0)5/3/2019PDF505 K
-
AN-1536: ADuM4135 Gate Driver Performance Driving APTMC120AM20CT1AG SiC Power Switches (Rev. 0)4/5/2018PDF670 K
-
AN-1535: ADuM4135 Gate Driver Performance Driving SiC Power Switches (Rev. 0)1/3/2018PDF738 K
-
Intelligent Motion Control Driving Higher Levels of Flexibility, Productivity and Sustainability in Smart Manufacturing10/28/2021
-
Energy Storage Systems Boost Electric Vehicles’ Fast Charger Infrastructure3/18/2021
-
The Road to an All EV Future: Enabling Test & Measurement Solutions for Electric Vehicles3/9/2021
-
Short Circuit Protection for SiC with Isolated Gate Drivers11/23/2020
-
What Really Drives Your Electric Vehicle (EV)?4/9/2020
-
Overview of Brushless DC (BLDC) Motor Controls5/9/2019
-
Designing High Fidelity Isolated Power Inverter Interfaces10/28/2015
-
Digital Isolation and Interface Technology Selection Guide2/7/2020PDF4 M
-
ADI Isolated Gate Drivers and Wolfspeed SiC MOSFETs5/13/2020PDF366 K
-
ADI's Precision Isolated Gate Drive and Sense Signal Chains5/24/2022 -

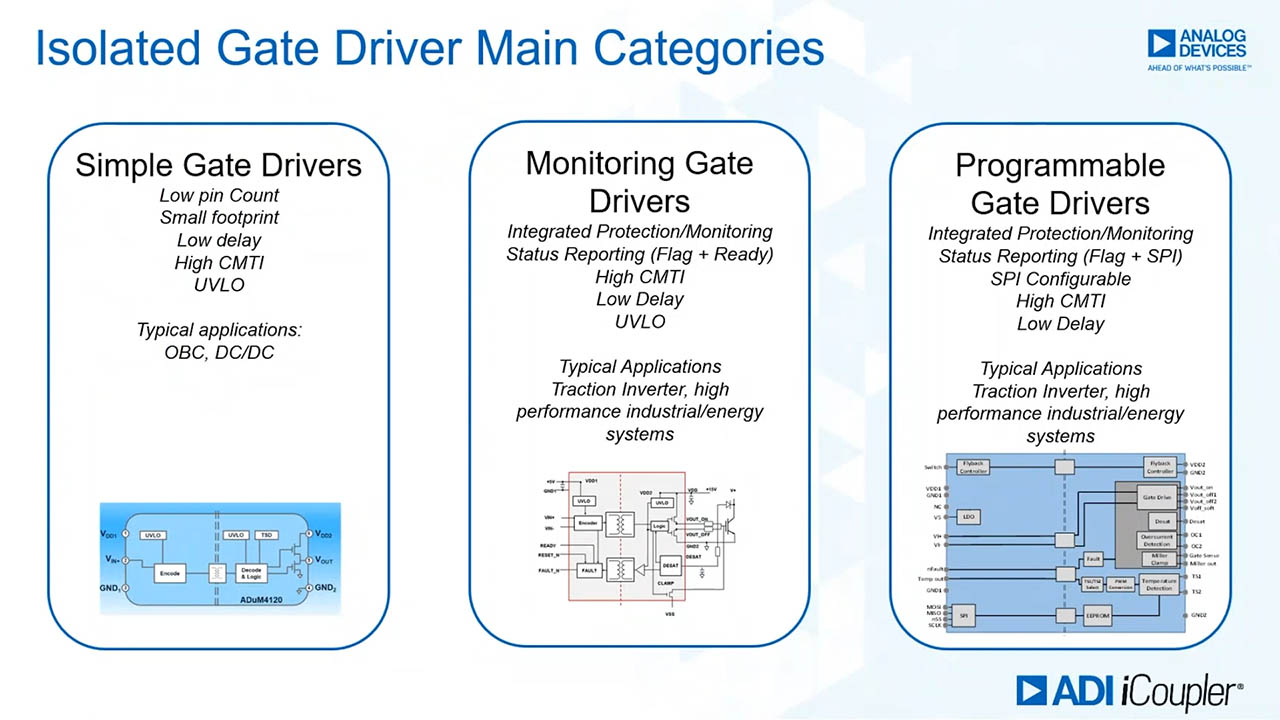

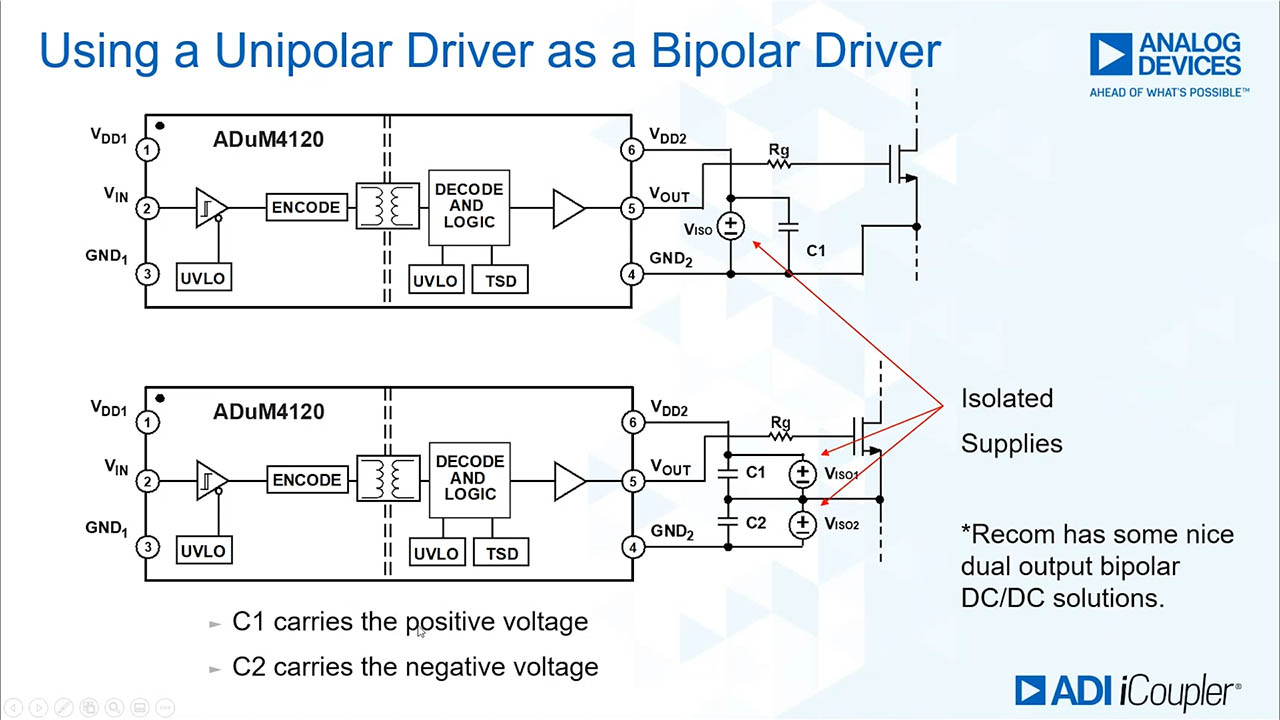

Fundamentals of Isolated Gate Drivers4/22/2022SERIES -
Protect your Innovations: from High Precision to High Power4/12/2022 -
EV Charging - High Power DC Charger with Storage Boost Battery3/3/2022 -
ADI iCoupler Gate Drivers - up to the SiC & GaN Challenge3/3/2022 -
Optimized ADuM4135 Gate Driver Solution for 1200V 450A SiC Module3/3/2022 -
Short Circuit Protection using Isolated Gate Drivers3/3/2022 -
Know your Voltage - Unearth Optimal SiC & GaN Drive Performance3/3/2022 -
Analog Devices' Isolation Technology for Industrial Motor Control3/3/2022 -
Aviation Isolation: Protecting the Critical Signal Paths3/3/2022 -

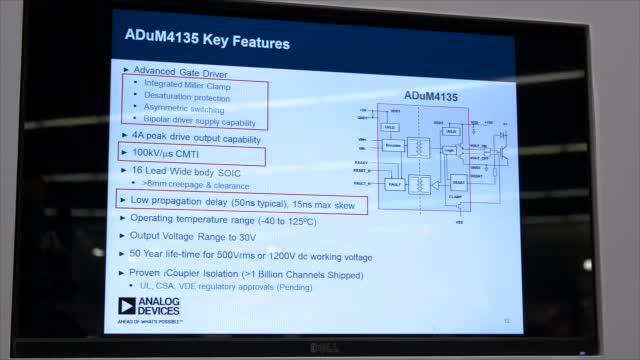

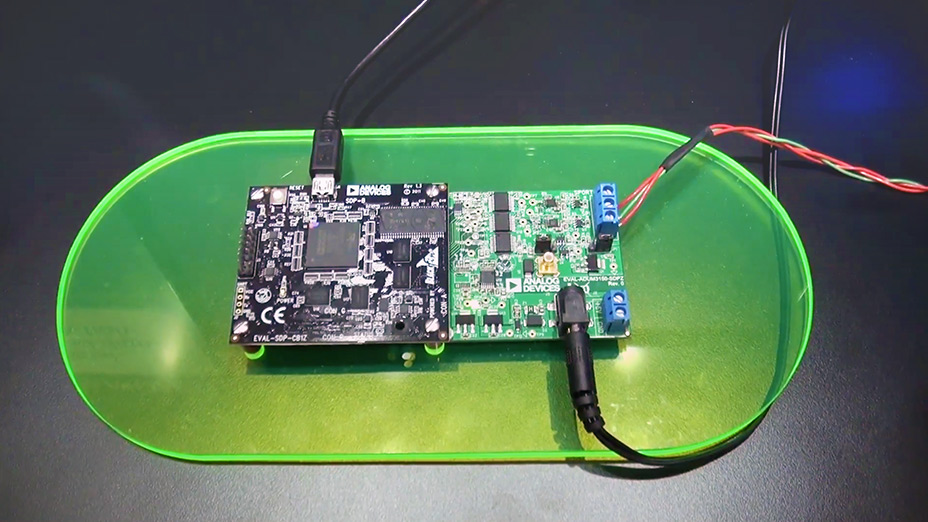

ADuM4135 High Voltage Isolated Gate driver1/4/2019 -
