ADL5380

RECOMMENDED FOR NEW DESIGNS

400 MHz TO 6000 MHz Quadrature Demodulator

Data Sheet (Rev. B) Product Selection Table

Part Models: 2
1ku List Price: Starting From $6.49

Viewing:

Part Details

Operating RF and LO frequency: 400 MHz to
6 GHz
Input IP3
30 dBm @ 900 MHz
28 dBm @1900 MHz
Input IP2: >65 dBm @ 900 MHz
Input P1dB (IP1dB): 11.6 dBm @ 900 MHz
Voltage conversion gain: ~7 dB
Demodulation bandwidth: ~390 MHz

Noise figure (NF)
10.9 dB @ 900 MHz
11.7 dB @ 1900 MHz
Quadrature demodulation accuracy @
900 MHz
Phase accuracy: ~0.2°
Amplitude balance: ~0.07 dB
Baseband I/Q drive: 2 Vp-p into 200 Ω
Single 5 V supply

Part Models: 2
1ku List Price: Starting From $6.49

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADL5380ACPZ-R7	24-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADL5380ACPZ-WP	24-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 5, 2014 - 14_0020 Conversion of 4x4mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
		PCN14_0020_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
ADL5380ACPZ-R7	PRODUCTION
ADL5380ACPZ-WP	PRODUCTION
May 22, 2012 - 12_0063 Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE-Korea.
		PCN12_0063_Form Material_Report Detailed Change Description Detailed Parts List Package Outline Drawing Qualification Report Summary
ADL5380ACPZ-R7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Baseband Programmable VGA-Filters 2
ADRF6510	Obsolete	30 MHz Dual Programmable Filters and Variable Gain Amplifiers
ADRF6516	Obsolete	31 MHz, Dual Programmable Filters and Variable Gain Amplifiers
Fractional-N PLL 1
ADF4156	PRODUCTION	6.2 GHz Fractional-N Frequency Synthesizer
Fully Differential Amplifiers 3
AD8366	RECOMMENDED FOR NEW DESIGNS	DC to 600 MHz, Dual-Digital Variable Gain Amplifiers

ADL5562	RECOMMENDED FOR NEW DESIGNS	3.3 GHz Ultralow Distortion RF/IF Differential Amplifier
ADL5565	RECOMMENDED FOR NEW DESIGNS	6 GHz Ultrahigh Dynamic Range Differential Amplifier
Integer-N PLL 2
ADF4350	PRODUCTION	Wideband Synthesizer with Integrated VCO
ADF4106	PRODUCTION	6 GHz integer-N PLL
Positive Linear Regulators (LDO) 1
ADP7104	RECOMMENDED FOR NEW DESIGNS	20 V, 500 mA, Low Noise, CMOS LDO
Single Channel A/D Converters 1
AD9262	NOT RECOMMENDED FOR NEW DESIGNS	16-Bit, 2.5 MHz/5 MHz/10 MHz, 30 MSPS to 160 MSPS Dual Continuous Time Sigma-Delta ADC
Single-Ended to Differential Amplifiers 4
ADA4950-1	RECOMMENDED FOR NEW DESIGNS	Low Power Selectable Gain Differential ADC Driver, G = 1, 2, 3
ADA4950-2	RECOMMENDED FOR NEW DESIGNS	Low Power Selectable Gain Differential ADC Driver, G = 1, 2, 3
ADA4930-1	RECOMMENDED FOR NEW DESIGNS	Ultralow Noise Drivers for Low Voltage ADCs
ADA4930-2	RECOMMENDED FOR NEW DESIGNS	Ultralow Noise Drivers for Low Voltage ADCs
Standard High Speed A/D Converters 6
AD9231	PRODUCTION	12-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Dual Analog-to-Digital Converter
AD9258	PRODUCTION	14-Bit, 125 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC)
AD9251	PRODUCTION	14-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Dual Analog-to-Digital Converter
AD9268	PRODUCTION	16-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Dual Analog-to-Digital Converter
AD9650	RECOMMENDED FOR NEW DESIGNS	16-Bit, 25 MSPS/65 MSPS/80 MSPS/105 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC)
AD9269	RECOMMENDED FOR NEW DESIGNS	16-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Dual Analog-to-Digital Converter

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

Evaluation Kits

AD-FMCOMMS6-EBZ Evaluation Board

Buy Now View Details

Features and Benefits

Reduces receiver complexity and the number of stages needed, increasing performance and reducing power consumption
Avoids image rejection issues and unwanted mixing

Product Details

The AD-FMCOMMS6-EBZ eval board is a 400MHz to 4.4GHz receiver based on the AD9652 dual 16bit analog to digital converter, the ADL5566 High Dynamic Range RF/IF Dual Differential Amplifier and the ADL5380 quadrature demodulator.

This is an I and Q demodulation approach to direct convert (also known as a homodyne or zero IF) receiver architecture. Direct conversion radios perform just one frequency translation compared to a super-heterodyne receiver that can perform several frequency translations. One frequency translation is advantageous because it:

Reduces receiver complexity and the number of stages needed, increasing performance and reducing power consumption
Avoids image rejection issues and unwanted mixing

This topology will provide image rejection and early implementation of the differential signal environment. There is an amplification stage to maintain the full-scale input to the ACD. The local oscillator and ADC clock are on board and share the same reference signal prevent smearing. The form factor is VITA57 compliant and all of the DC power is routed from the data capture board through an FMC connector. This evaluation board demonstrates a high performance receiver signal chain aimed at military and commercial radar using “commercial off the shelf” (COTS) components. The overall circuit has a bandwidth of 220MHz with a pass band flatness of +/_ 1.0 dB. The SNR and SFDR measured at an IF of 145MHz are 64dB and 75dBc, respectively.

Resources

AD-FMCOMMS6-EBZ User Guide
10/2/2015

ADL5380 Evaluation Boards

Buy Now View Details

Product Details

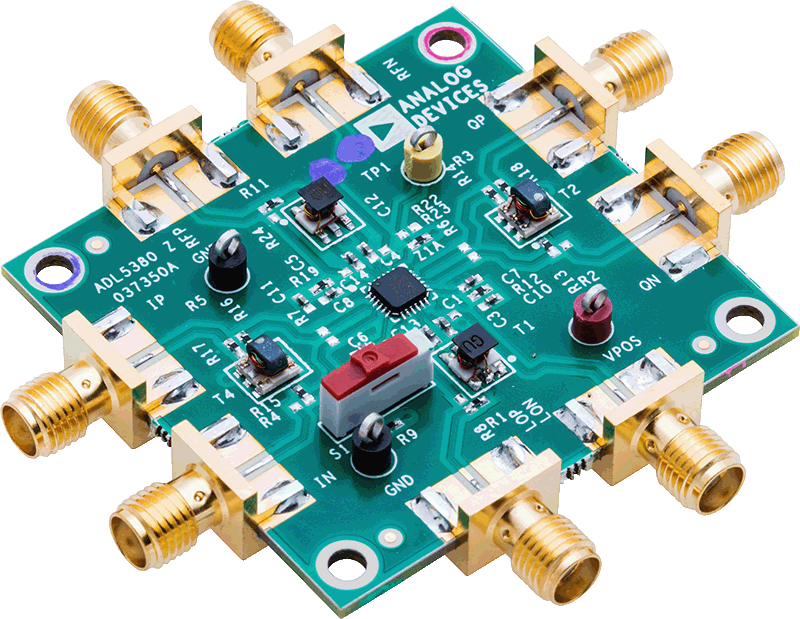

ADL5380-EVALZ is a fully populated, 4–layer, FR4 based evaluation board designed to allow easy evaluation of all features of the ADL5380 at RF input frequencies from 400 MHz to 6 GHz. The evaluation board integrates bypassable transformers to allow single ended or differential baseband I and Q outputs and an option to drive the RF and LO inputs with a single ended or differential signals. The evaluation board requires only a single supply within the range of 4.75 V to 5.25 V.

Resources

ADL5380-29A Archive-obsolete Board Gerber Files
9/16/2014

ADL5380-30A - Archive-obsolete Board Design and Schematics
9/13/2011

ADL5380-EVALZ Schematics and BOM
1/1/0001

FPGA Mezzanine Card for Wireless Communications

Buy Now View Details

Features and Benefits

Includes schematics, layout, BOM, Gerber files, HDL, Linux^® drivers, IIO Oscilloscope, VisualANALOG
FMC-compatible form factor
Powered from FMC connector
Provides one channel of ADC and one channel of DAC with full synchronization capabilities

Product Details

This board is no longer available for ordering.

The AD-FMCOMMS1-EBZ high-speed analog module is designed to showcase the latest generation high-speed data converters. The AD-FMCOMMS1-EBZ provides the analog front-end for a wide range of compute-intensive FPGA-based radio applications.

The AD-FMCOMMS1-EBZ is an analog front end hardware platform that addresses a broad range of research, academic, industrial and defense applications. The AD-FMCOMMS1-EBZ enables RF applications from 400MHz to 4 GHz. The module is customizable to a wide range of frequencies by software without any hardware changes, providing options for GPS or IEEE 1588 Synchronization, and MIMO configurations.

When combined with the Xilinx ZYNQ^® Software-Defined Radio Kit, AD-FMCOMMS1-EBZ enables a variety of wireless communications functions at the physical layer, from baseband to RF. With up to 4 GB of flash storage space, 512 MB of RAM, Gigabit Ethernet interface (depending on the base platform) and a Linux image built specifically for the AD-FMCOMMS1-EBZ, you can get everything you need for a easy out of the box experience. The platform offers enough flexibility for many applications, and supports streaming data, and standard web interfaces to analyze transmitted RF data.
