Features and Benefits
- Output frequency range: 800 MHz to 12.8 GHz
- Jitter = 18 fsRMS (integration bandwidth: 100 Hz to 100 MHz)
- Jitter = 27 fsRMS (ADC SNR method)
- Wideband noise floor: −160 dBc/Hz at 12 GHz
- PLL specifications
- −239 dBc/Hz: normalized in-band phase noise floor
- −147 dBc/Hz: normalized in-band 1/f noise
- Phase detector frequency up to 500 MHz
- Reference input frequency up to 1000 MHz
- Typical spurious fPFD: −95 dBc at fOUT = 12 GHz
- Reference input to output delay specifications
- Device-to-device standard deviation: 3 ps
- Temperature coefficient: 0.03 ps/°C
- Adjustment step size: < ±0.1 ps
- Multichip output phase alignment
- 3.3 V and 5 V power supplies
- 7 mm × 7 mm 48-lead LGA
integer-N phased locked loop (PLL) with an integrated voltage controlled oscillator (VCO) ideally suited for data converter and mixed signal front end (MxFE) clock applications. The high performance PLL has a figure of merit of −239 dBc/Hz, ultralow 1/f noise, and a high phase frequency detector (PFD) frequency that can achieve ultralow in-band noise and integrated jitter. The fundamental VCO and output divider of the ADF4377 generate frequencies from 800 MHz to 12.8 GHz. The ADF4377 integrates all necessary power supply bypass capacitors, saving board space on compact boards.
For multiple data converter and MxFE clock applications, the ADF4377 simplifies clock alignment and calibration routines required with other clock solutions by implementing the automatic reference to output synchronization feature, the matched reference to output delays across process, voltage, and temperature feature, and the less than ±0.1 ps, jitter free reference to output delay adjustment capability feature.
These features allow for predictable and precise multichip clock and system reference (SYSREF) alignment. JESD204B and JESD204C Subclass 1 solutions are supported by pairing the ADF4377 with an integrated circuit (IC) that distributes pairs of reference and SYSREF signals.
Markets and Technologies
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

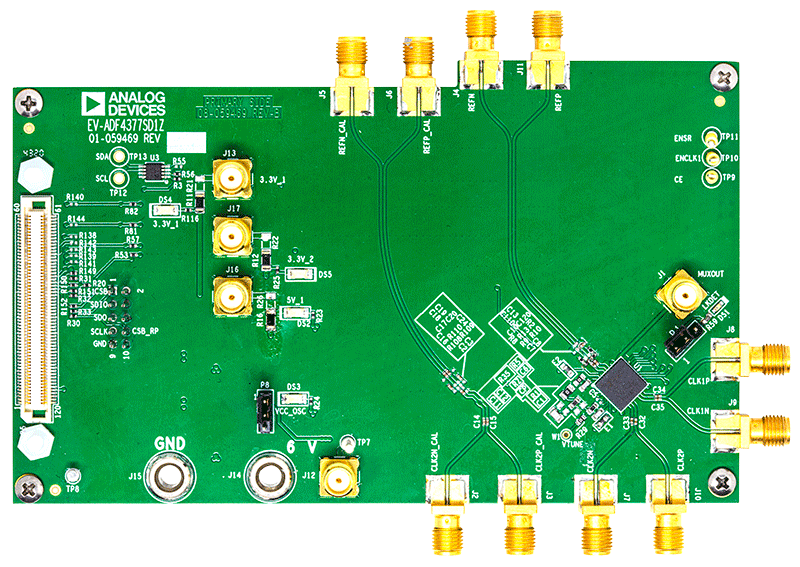

The EV-ADF4377SD1Z evaluates the performance of the ADF4377 frequency synthesizer with an integrated voltage controlled oscillator (VCO) for phase-locked loops (PLLs). A photograph of the EV-ADF4377SD1Z is shown in Figure 1 of the user guide. The EV-ADF4377SD1Z contains the ADF4377 frequency synthesizer with an integrated VCO, a USB interface, power supply connectors, on-board reference oscillator, propagation delay calibration paths, and Subminiature Version A (SMA) connectors. The outputs are ac-coupled with 50 Ω transmission lines making the outputs suitable to drive 50 Ω impedance instruments. The EV-ADF4377SD1Z requires an SDP-S board (not supplied with the kit). The SDP-S allows software programming of the EV-ADF4377SD1Z with ACE software. Full specifications for the ADF4377 frequency synthesizer are available in the ADF4377 data sheet, which must be consulted with the user guide when working with the EV-ADF4377SD1Z.
Features & Benefits
- Self-contained board, including ADF4377 frequency synthesizer with integrated VCO, loop filter, USB interface, on-board reference oscillator, propagation delay calibration paths, and voltage regulators
- Windows®-based software allows control of synthesizer functions from a PC
- Externally powered by 6 V
Documentation & Resources
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/20189M
5G mmW RF Front-End ICs 24 GHz to 48.2 GHz9/15/20224 M
Clock Skew in Large Multi-GHz Clock Trees1/1/2019 Analog Dialogue
Tools & Simulations
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
