Overview
Features and Benefits
- Ease of use—16-bit, 1 MSPS complete data acquisition system
- High impedance, 8-channel input: >500 MΩ
- Differential input voltage range: ±24.576 V maximum
- High input common-mode rejection: >100 dB
- User-programmable input ranges
- Channel sequencer with individual channel gains
- On-chip 4.096 V reference and buffer
- Auxiliary input—direct interface to PulSAR ADC inputs
- No latency or pipeline delay (SAR architecture)
- Serial 4-wire, 1.8 V to 5 V SPI-/SPORT-compatible interface
- LFCSP package (6 mm × 6 mm)
- LQFP package (7 mm × 7 mm) −40°C to +85°C industrial temperature range
Product Details

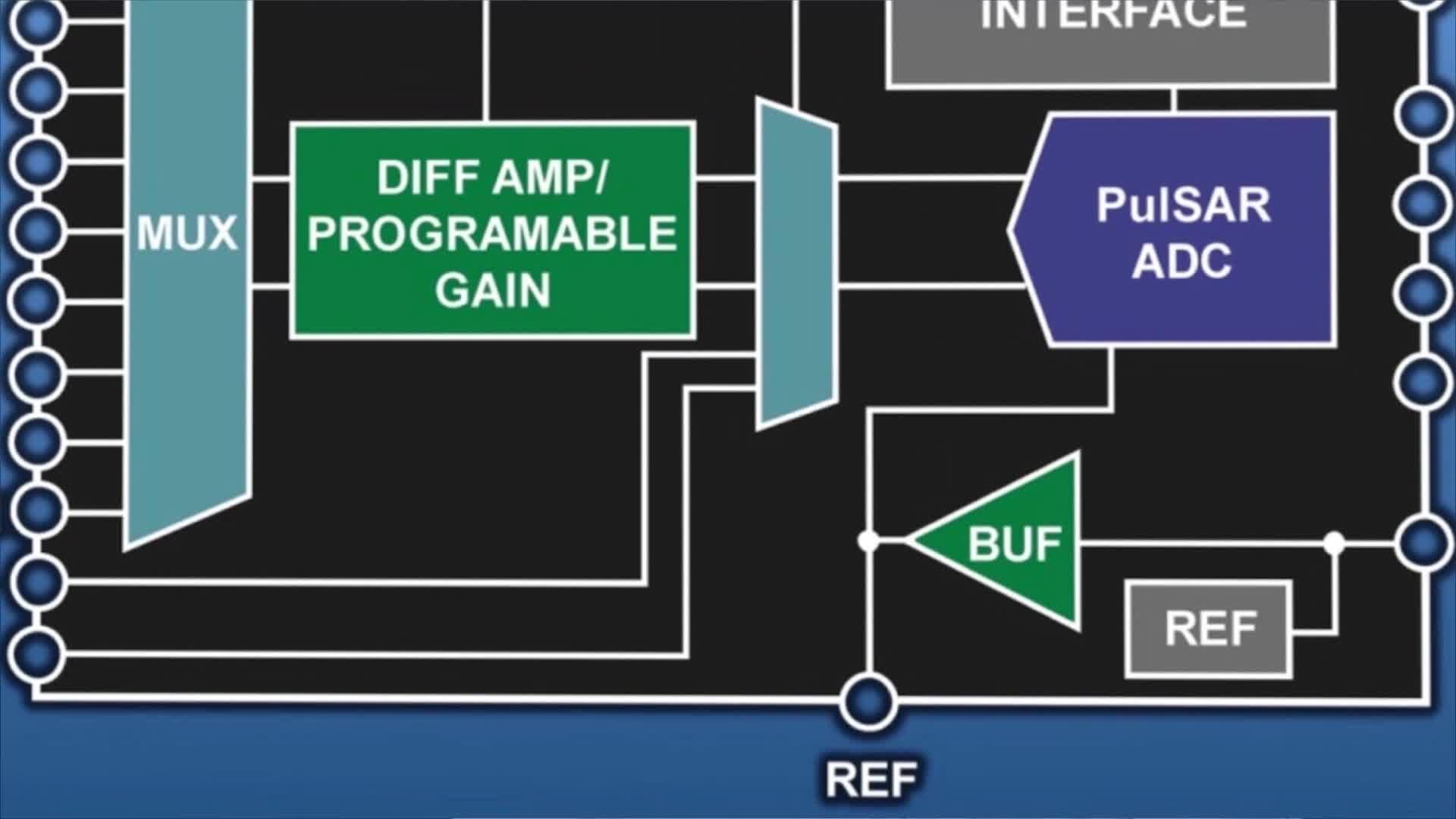

The ADAS3022 is a complete 16-bit, 1 MSPS, successive approximation–based analog-to-digital data acquisition system, which is manufactured on Analog Devices, Inc., proprietary iCMOS® high voltage industrial process technology. The device integrates an 8-channel, low leakage multiplexer; a high impedance programmable gain instrumentation amplifier (PGIA) stage with high common-mode rejection; a precision, low drift 4.096 V reference and buffer; and a 16-bit charge redistribution analog-to-digital converter (ADC) with successive approximation register (SAR) architecture. The ADAS3022 can resolve eight single-ended inputs or four fully differential inputs up to ±24.576 V when using ±15 V supplies. In addition, the device can accept the commonly used bipolar differential, bipolar single-ended, pseudo bipolar, or pseudo unipolar input signals, as shown in Table 1, thus enabling the use of almost any direct sensor interface.The ADAS3022 simplifies design challenges by eliminating signal buffering, level shifting, amplification/attenuation, common-mode rejection, settling time, and any other analog signal conditioning challenge while allowing a smaller form factor, faster time to market, and lower cost.
APPLICATIONS
- Multichannel data acquisition and system monitoring
- Process control
- Power line monitoring
- Automated test equipment
- Instrumentation
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

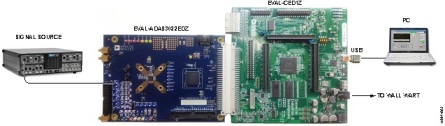

Evaluation Kits (1)
Documentation & Resources
-
Practical Filter Design Challenges and Considerations for Precision ADCs4/1/2016 Analog Dialogue
-
Exploring Different SAR ADC Analog Input Architectures1/1/2016
-
Let's Compare SAR & Δ-Σ Converters for a Mux'd DAS (Planet Analog, 12/2013)1/11/2014
-
• Part 1
-
• Part 2
-
• Part 3
-
• Part 4
-
• Part 5
-
Komplette Sensor-to-Bits-Lösung: Vereinfachte Entwicklung industrieller Datenerfassungssysteme10/14/2013
-
Sensor-To-Bits: Simplifying DAQ Design5/20/2013
-
Complete Sensor-to-Bits Solution Simplifies Industrial Data-Acquisition System Design4/1/2013 Analog Dialogue
Tools & Simulations
IBIS Model
Design Tool
Reference Designs (1)
Product Recommendations
ADAS3022 Companion Parts
Recommended Digital Isolators
- For SPI Interface, lowest power, 2.5 kVrms isolation: ADUM1401.
- For SPI Interface, enhanced system-level ESD performance, 2.5 kVrms isolation: ADUM3401.
- For SPI Interface, smallest package, low voltage I/O (1.8 V to 5.5 V): ADUM3481.
- For SPI Interface, low power, 5.0 kVrms isolation: ADUM4401.
Recommended Driver Amplifiers
- For low frequency, precision, low bias current applications: AD8476, AD8605, AD8615, AD8605.
- For precision, low power, low distortion applications: ADA4841-1, ADA4940-1, ADA4941-1.
- For high frequency, low noise, low distortion applications: ADA4897-1, AD8021.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADAS3022BCPZ | Material Declaration | Reliability Data | 40-Lead LFCSP (6mm x 6mm w/ EP) | |
| ADAS3022BCPZ-RL7 | Material Declaration | Reliability Data | 40-Lead LFCSP (6mm x 6mm w/ EP) | |
| ADAS3022BSTZ | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| ADAS3022SCPZ-EP | Material Declaration | Reliability Data | 40-Lead LFCSP (6mm x 6mm w/ EP) | |
| ADAS3022SCPZ-EP-RL | Material Declaration | Reliability Data | 40-Lead LFCSP (6mm x 6mm w/ EP) | |
| Wafer Fabrication Data |
