ADAR1000

RECOMMENDED FOR NEW DESIGNS

8 GHz to 16 GHz, 4-Channel, X Band and Ku Band Beamformer

Data Sheet (Rev. B) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

8 GHz to 16 GHz frequency range
Half-duplex for transmit and receive modes
Single-pin transmit and receive control
360° phase adjustment range
2.8° phase resolution
≥31 dB gain adjustment range
≤0.5 dB gain resolution
Bias and control for external transmit and receive modules

Memory for 121 prestored beam positions
Four −20 dBm to +10 dBm power detectors
Integrated temperature sensor
Integrated 8-bit ADC for power detectors and temperature sensor
Programmable bias modes
4-wire SPI interface

Part Models: 2
1ku List Price: price unavailable

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADAR1000ACCZN	88-Lead LGA (7mm x 7mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADAR1000ACCZN-R7	88-Lead LGA (7mm x 7mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 1

ADAR1000 Github Linux Driver Source Code

Can't find the software or driver you need?

Tools & Simulations

IBIS Model 1

ADAR1000 IBIS Model

S-Parameter 1

ADAR1000 S-Parameters

Evaluation Kits

Scalable 32 Element Hybrid Beamforming Phased-Array RADAR Development Platform

Buy Now View Details

Features and Benefits

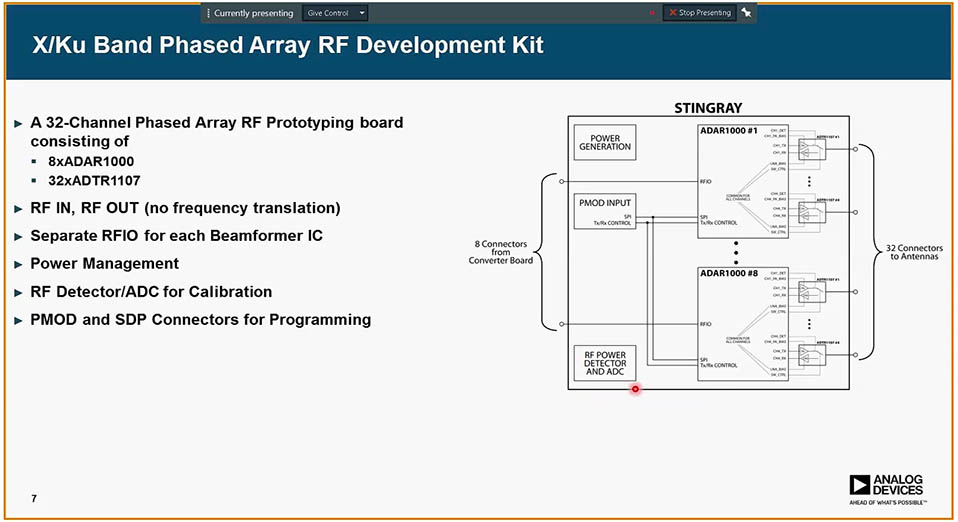

Stingray X/Ku Phased Array Proto-typing Board

32 Channel Analog Phased Array Prototyping Platform
8x ADAR1000 Analog Phased Array Beamforming ICs
32x ADTR Transmit/Receive ICs
RF In, RF Out Design
Individual RFIO for each BFIC
10 GHz Lattice Spacing
Stand-Alone RF Detector/ADC Combo for Calibration
PMOD and SDP Connectors for Programming
On-Board Power Regulation from Single 12V Power Adapter (Included)

XUD1A X/C Band Up/Down Converter

X Band (RF) to C Band (IF) up/down converter
4 TX/RX RF Input/Output via SMA
4 TX IF Inputs via SMPM
4 RX IF Output via SMPM
External LO or Internal PLL Options
PMOD Connector for Programming
Interposer Board via PMOD to allow SDP and FMC Connectors for Programming
On-Board Power Regulation from Single 12V Power Adapter (Included)

MxFE Evaluation Board

Mates with Xilinx ZCU102 Evaluation Board (Not Included)
4x RF Receive (Rx) Channels (8x Digital Rx Channels)

Total 4x 12-bit 4GSPS ADC
8x Digital Down Converters (DDCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
8x Programmable Finite Impulse Response Filters (pFIRs)

4x RF Transmit (Tx) Channels (8x Digital Tx Channels)

Total 4x 16-bit 12GSPS DAC
8x Digital Up Converters (DUCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)

Flexible Clock Distribution

On-Board Clock Distribution from Single External 500MHz Reference
Support for External Converter Clock

On-Board Power Regulation Powered by ZCU102 Evaluation Board via FMC Connector

Software Features and Benefits
Easy Control Tools and Platform Interfaces to Simplify Software Framework Developments:

MATLAB System Applications GUI
Example HDL Builds including JESD204b/JESD204c Bring-Up
Embedded Software Solutions for Linux and Device Drivers

Software Reference Design Examples for ADEF Applications to Reduce Prototyping Time:

Hybrid Beamsteering Capability
System Phase Calibration

Product Details

The X-Band Development Platform contains one MxFE^® software defined, direct RF sampling transceivers, X-Band to C-Band Up/Down Converter, and a X/Ku Band analog phased array proto-typing platform. The target application is phased array radars, electronic warfare, and ground-based SATCOM, specifically a X Band 32 transmit/32 receive channel hybrid beamforming phased array radar.

The X-Band Development Platform highlights a complete system solution. It is intended as a testbed for demonstrating hybrid beamforming phased array radar as well as the implementation of system level calibrations, beamforming algorithms, and other signal processing algorithms. The system is designed to mate with a ZCU102 Evaluation Board from Xilinx®, which features the Zynq^® UltraScale+^™ MPSoC FPGA, with provided reference software, HDL code, and MATLAB system-level interfacing software.

The system can be used to enable quick time-to-market development programs for applications like:

ADEF (Phased-Array, RADAR, EW, SATCOM)
Hybrid Beamforming
Electronic Test and Measurement

Resources

X-Band Phased Array RADAR Development Platform
3/10/2022

FMC X-Microwave Compatible Level Translator and Power Supply Kit

Buy Now View Details

Features and Benefits

FMC-compatible form factor
Powered from FMC connector with external supply possibility
Provides level translation and various supply values
Compatible with RaspberryPi X-MW controller

Product Details

The AD-FMCXMWBR1-EBZ is a level translator and power supply board, with FMC-compatible form factor. It is powered from the FMC connector, with the possibility to add an external supply, for application that require higher load currents. In this case, the external supply is prioritized.

AD-FMCXMWBR1-EBZ allows multiple level translated digital communications paths between a controller/FPGA device and X-MW blocks. The module provides multiple supply voltages with high current capability, that can be used to bias the X-MW blocks or other IC’s in a prototype design.

APPLICATIONS

RF and Microwave designs
Voltage level translation
General-purpose software radios
Radar systems
Point to point communication systems
Multiple input/multiple output (MIMO) radios
Automated test equipment

Resources

AD-FMCXMWBR1-EBZ User Guide
6/2/2022

ADAR1000 Evaluation Board

Buy Now View Details

Features and Benefits

For Rev B and Rev C/D please review schematics found below.
More info can be found on the ADAR1000 Wiki page.

Based on the ADAR1000 4-channel beamformer core chip
Controllable through SPI
Multiple forms of digital interface (3.3 V and 1.8 V logic)
On-board logic level translators with 1.8 V low dropout regulator for supply
Software control from a Windows-based PC through USB

Product Details

The ADAR1000-EVALZ evaluation board is designed for evaluating the performance of the ADAR1000, a 4-channel, X band and Ku band beamforming core chip for radar systems. All the radio frequency (RF) input/output channels and detector inputs are brought out to Subminiature Version A (SMA) connectors. On-board logic level translators convert the on-chip 1.8 V logic signals to 3.3 V for interfacing to external controllers running on 3.3 V. Two identical 20-pin, dual row rectangular headers provide the digital interface signals to allow daisy-chaining up to four ADAR1000-EVALZ evaluation boards together. A 24-pin connector provides control and bias outputs to interface to four external transmit and receive (T/R) modules with each ADAR1000-EVALZ evaluation board.

The ADAR1000-EVALZ evaluation board can be used with an Analog Devices, Inc., system demonstration platform (SDP) SDP-S or SDP-B board (supplied separately), which allows connection to a Microsoft Windows^®-based PC through the USB for controlling of all the ADAR1000 device functions.

For full details on the ADAR1000, see the ADAR1000 data sheet, which should be consulted in conjunction with this user guide when using this evaluation board.
