AD5162

PRODUCTION

256-Position Dual Channel SPI Digital Potentiometer

Data Sheet (Rev. C) Product Selection Table

Part Models: 9
1ku List Price: Starting From $1.33

Viewing:

Overview

2-Channel, 256-position potentiometer
End-to-End Resistance
2.5kΩ, 10kΩ, 50kΩ, 100kΩ
Compact 10-lead MSOP (3 mm x 4.9 mm) package
Fast settling time: t_s = 5 μs typical on power-up
Full read/write of wiper register
Power-On preset to midscale

Single Supply: 2.7 V to 5.5 V
Low Temperature
Coefficient 35 ppm/°C
Low power, I_DD = 6 µA maximum
Wide operating temperature: –40°C to +125°C

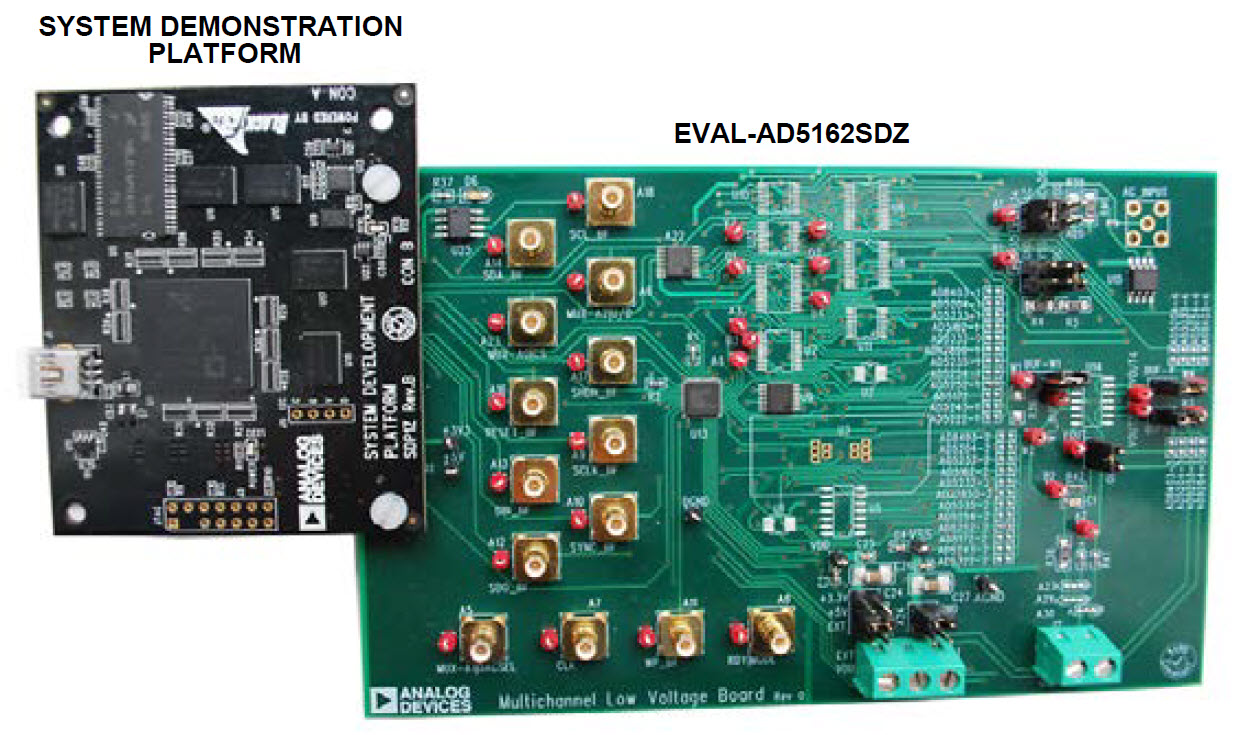

Evaluation board available
Qualified for automotive applications

The AD5162 provides a compact 3 mm × 4.9 mm packaged solution for dual 256 position adjustment applications. This device performs the same electronic adjustment function as a 3-terminal mechanical potentiometer. Available in four different end-to-end resistance values (2.5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ), this low temperature coefficient device is ideal for high accuracy and stability-variable resistance adjustments.

The wiper settings are controllable through the SPI compatible digital interface. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch.

Operating from a 2.7 V to 5.5 V power supply and consuming less than 6 µA allows the AD5162 to be used in portable battery-operated applications.

For applications that program the AD5162 at the factory, Analog Devices offers device programming software running on Windows^® NT/2000/XP operating systems. This software effectively replaces the need for external SPI controllers, which in turn enhances the time to market of systems. An AD5162 evaluation kit and software are available. The kit includes a cable and instruction manual.

APPLICATIONS

Systems calibrations
Electronics level settings
Mechanical trimmers replacement in new designs
Permanent factory PCB setting
Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
RF amplifier biasing
Automotive electronics adjustment
Gain control and offset adjustment
