MAX17505
4.5V-60V, 1.7A, High-Efficiency, Synchronous Step-Down DC-DC Converter with Internal Compensation
Industry's Only 60V, 1.7A Internal FET Synchronous Buck Converter
Top
Overview
Features and Benefits
- Eliminates External Components and Reduces Total Cost
- No Schottky-Synchronous Operation for High Efficiency and Reduced Cost
- Internal Compensation for Stable Operation at Any Output Voltage
- All-Ceramic Capacitor Solution: Ultra-Compact Layout with as Few as Eight External Components
- Reduces Number of DC-DC Regulators to Stock
- Wide 4.5V to 60V Input Voltage Range
- 0.9V to 90%VIN Output Voltage
- Delivers Up to 1.7A Over Temperature
- 100kHz to 2.2MHz Adjustable Frequency with External Synchronization
- MAX17505S Allows Higher Frequency Of Operation
- Available in a 20-Pin, 4mm x 4mm TQFN Package
- Reduces Power Dissipation
- Peak Efficiency > 90%
- PFM and DCM Modes for High Light-Load Efficiency
- Shutdown Current = 2.8µA (typ)
- Operates Reliably
- Hiccup-Mode Current Limit and Autoretry Startup
- Built-In Output-Voltage Monitoring (Open-Drain Active-Low RESET Pin)
- Resistor-Programmable EN/UVLO Threshold
- Adjustable Soft-Start and Prebiased Power-Up
- High Industrial -40°C to +125°C Ambient Operating Temperature Range/-40°C to +150°C Junction Temperature Range

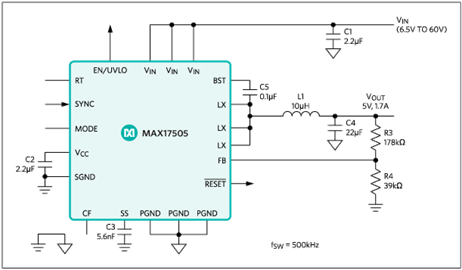

Product Details
The MAX17505/MAX17505S high-efficiency, high-voltage, synchronously rectified step-down converter with dual integrated MOSFETs operates over a 4.5V to 60V input. It delivers up to 1.7A and 0.9V to 90%VIN output voltage. Built-in compensation across the output voltage range eliminates the need for external components. The feedback (FB) regulation accuracy over -40°C to +125°C is ±1.1%. The device is available in a compact (4mm x 4mm) TQFN lead(Pb)-free package with an exposed pad. Simulation models are available.
The device features a peak-current-mode control architecture with a MODE feature that can be used to operate the device in pulse-width modulation (PWM), pulse-frequency modulation (PFM), or discontinuousconduction mode (DCM) control schemes. PWM operation provides constant frequency operation at all loads, and is useful in applications sensitive to switching frequency. PFM operation disables negative inductor current and additionally skips pulses at light loads for high efficiency. DCM features constant frequency operation down to lighter loads than PFM mode, by not skipping pulses but only disabling negative inductor current at light loads. DCM operation offers efficiency performance that lies between PWM and PFM modes. The MAX17505S offers a lower minimum on-time that allows for higher switching frequencies and a smaller solution size.
A programmable soft-start feature allows users to reduce input inrush current. The device also incorporates an output enable/undervoltage lockout pin (EN/UVLO) that allows the user to turn on the part at the desired input-voltage level. An open-drain active-low RESET pin provides a delayed power-good signal to the system upon achieving successful regulation of the output voltage.
Applications
- Base Station Power Supplies
- Distributed Supply Regulation
- General-Purpose Point-of-Load
- High-Voltage Single-Board Systems
- Industrial Power Supplies
- Wall Transformer Regulation
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (3)
Documentation & Resources
-
MAX17505 Reliability Data1/12/2023PDF42K
-
UG-5861: EE-SIM Design and Simulation Environment User Guide5/5/2014PDF3M
Tools & Simulations
EE-Sim Power® Tools
The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.
SIMPLIS Models

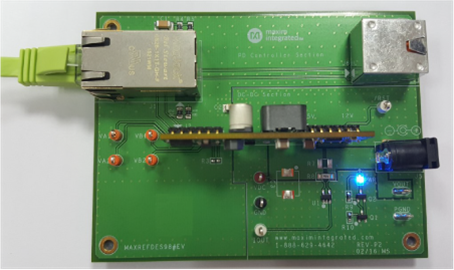

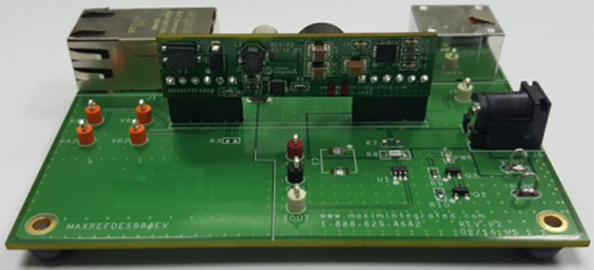

Reference Designs (1)
