Layout Guidelines for the MAX16974/MAX16975/MAX16976 DC-DC Converters

Layout Guidelines for the MAX16974/MAX16975/MAX16976 DC-DC Converters

著者の連絡先情報

The MAX16974/MAX16975/MAX16976 DC-DC converters are standard buck controllers designed for automotive applications. These controllers feature an integrated high-side N-channel FET and an external free-wheeling diode. Proper PCB layout of the IC, along with all the external components, is critical for reliable operation and for minimizing EMI emissions. This application note highlights some of the key points of the circuits for optimizing the layout. Figure 1 shows the typical application circuit of these high-performance converters.

Typical Applications Schematic

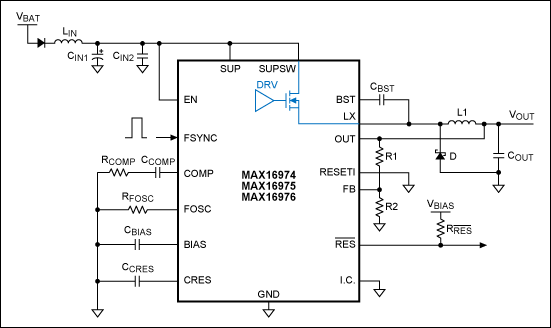

Figure 1. Typical application circuit

Figure 1. Typical application circuit
