ユーザ・ガイド Rev. 0
1 すべてを表示
評価用ソフトウェア Rev. 1.0
1 すべてを表示

製品概要

機能と利点

  • Evaluates the MAX77928 10A 3:1/2:1/1:1 Switched-Capacitor Direct Charger for a 1S Li-Ion Battery
  • Demonstrates 10A Bi-Directional Switched-Capacitor Converter
  • Demonstrates 3:1/2:1/1:1 from VIN to VOUT for Battery Charging
  • Demonstrates 1:3/1:2/1:1 from VOUT to VIN for OTG Mode
  • Demonstrates 2-Channel Gate Drivers to Drive External MOSFET(s) or GaN FET for OVP or Input Selection
  • Demonstrates Integrated VB FET with 24V AMR and 40mΩ Switch
  • Demonstrates 12bit ADC
  • Demonstrates SYNC Operation
  • Demonstrates Skip Mode and Audio Mode
  • Demonstrates Frequency Dithering
  • Fully Assembled and Tested
  • On-Board I2C Serial Interface
  • Windows 7 or Newer Compatible Software

製品概要

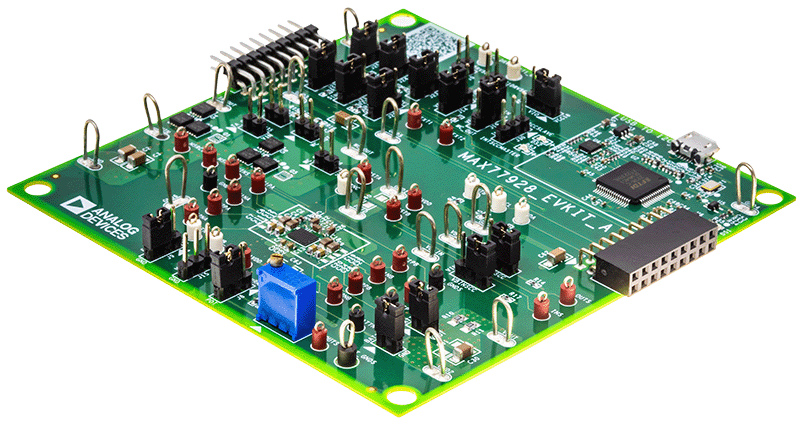

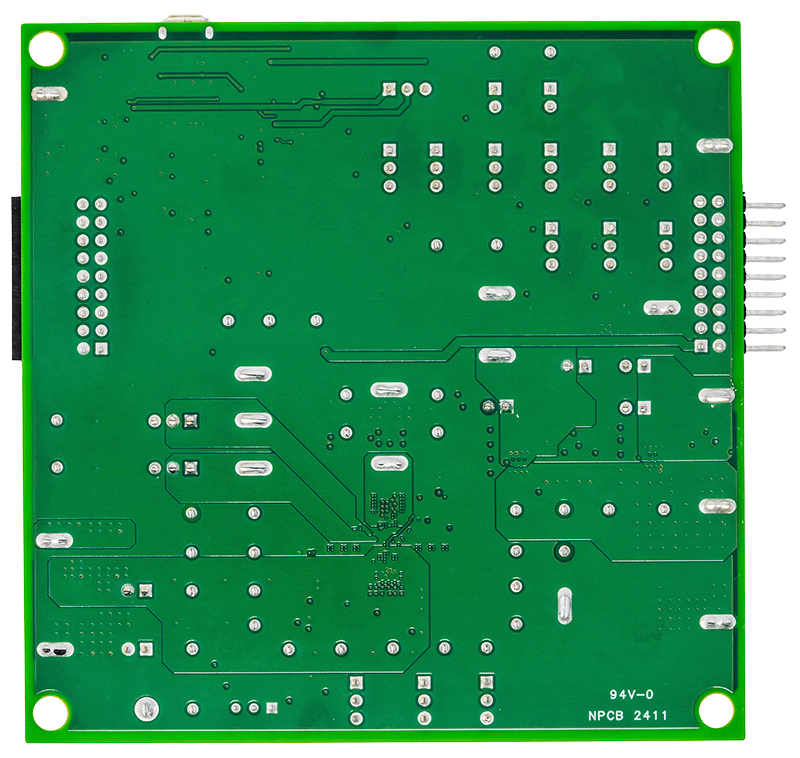

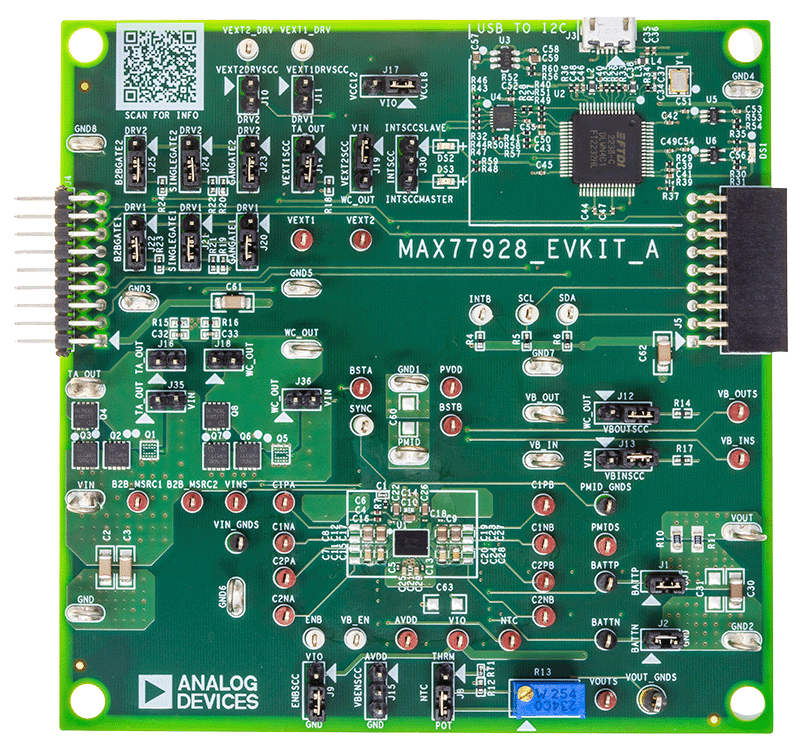

The MAX77928 evaluation kit (EV kit) is a fully assembled and tested surface-mount PCB that evaluates the MAX77928, a bi-directional 3:1/2:1/1:1 switched-capacitor converter (SCC) direct charger for a 1S battery. The MAX77928 EV kit includes the IC evaluation board with an integrated I2C communication interface and a USB micro-B cable. Windows® based graphical-user interface (GUI) software is available for use with the EV kit and can be downloaded from ADI’s website at www.analog.com/products/MAX77928evkit. A Windows 7 or newer Windows operating system is required to use the EV kit software.
