製品概要
機能と利点
- Proven PCB Reference Design and Layout
- Easy to Use
- Simple Hardware Control: Jumpers and Test Points for IN, EN, SEL, VL, and OUT
- Fully Assembled and Tested
製品概要

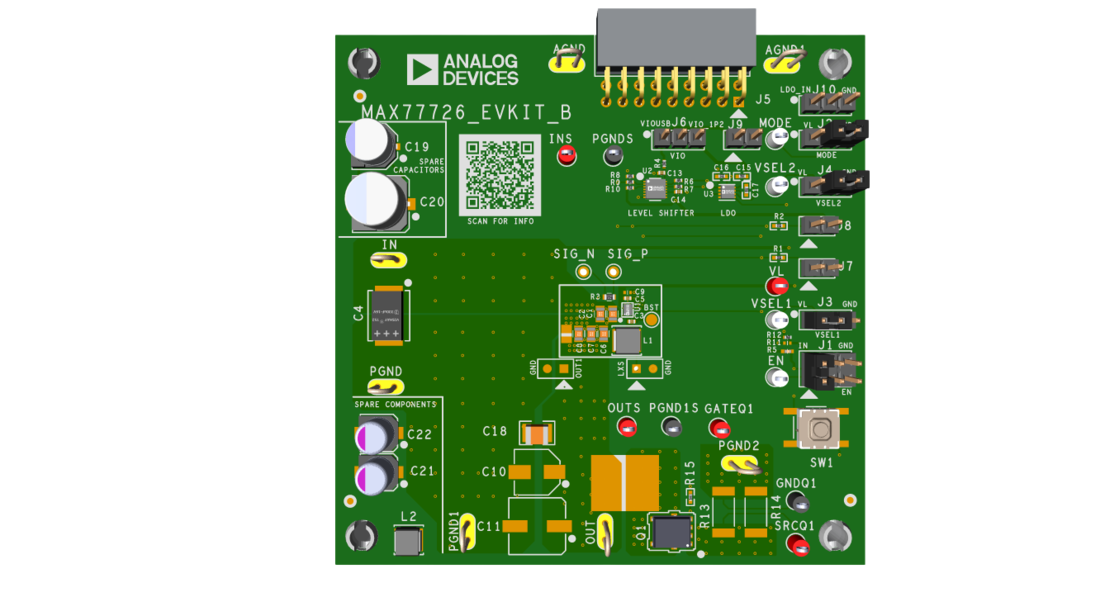

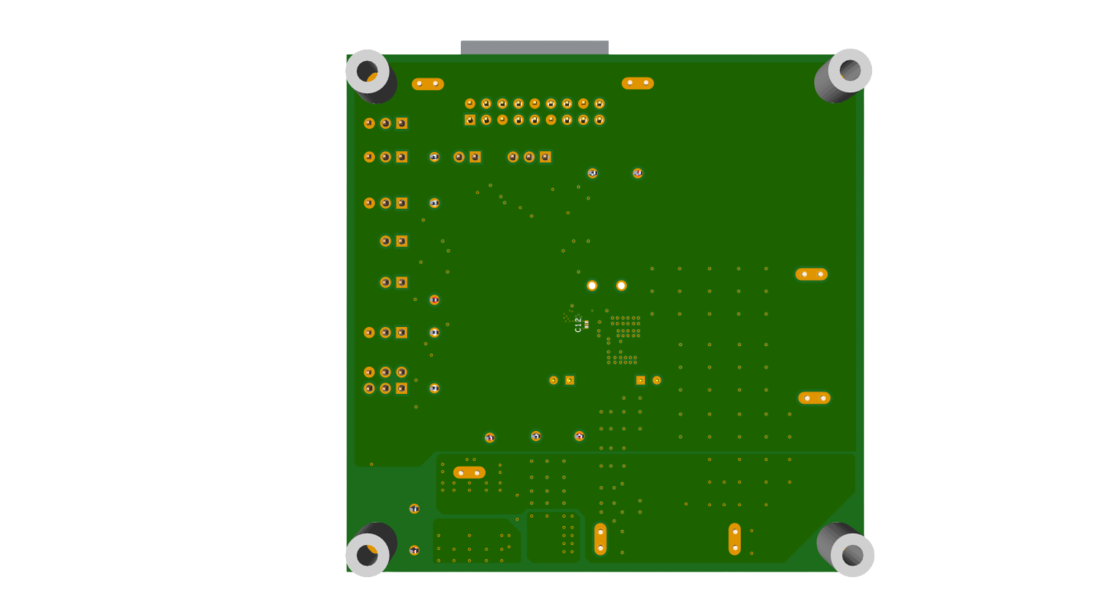

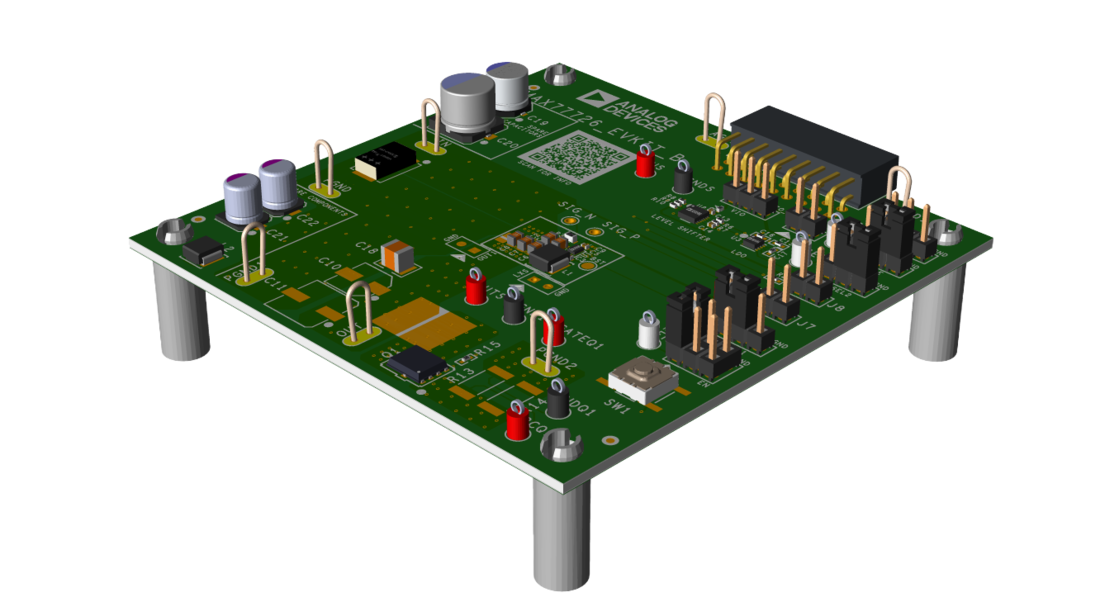

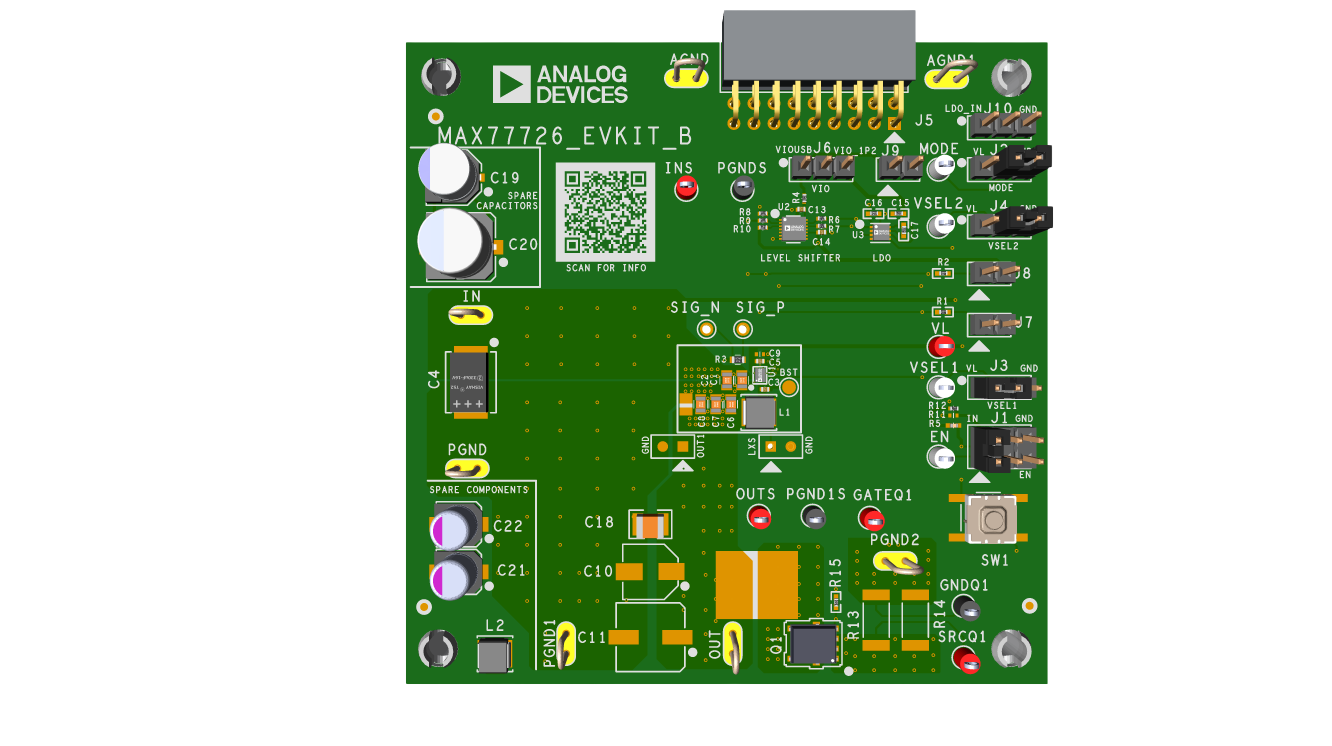

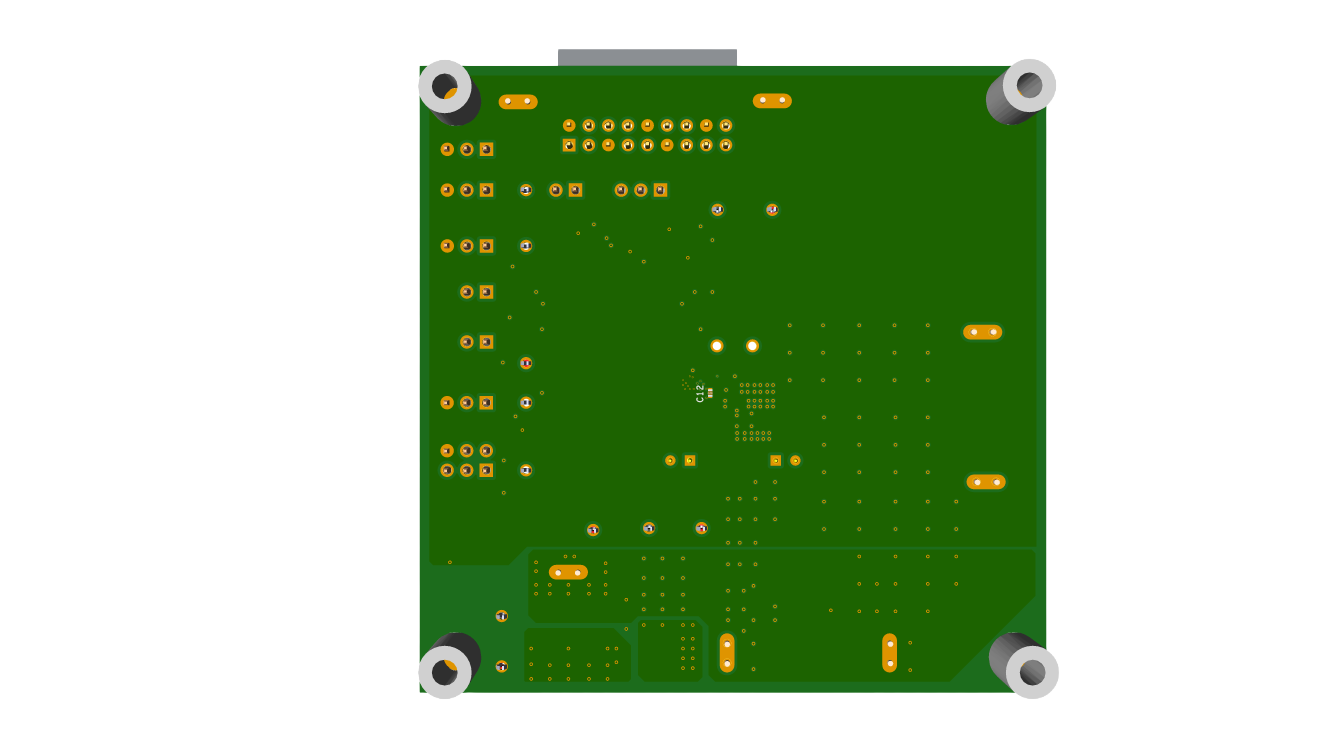

The MAX77726 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77726, synchronous buck converter with ultrasonic mode.
The EV kit is a step-down voltage regulator circuit using the MAX77726 that is capable of a 3.6V to 22V input, 3A of continuous load, and an adjustable output voltage between 3.3V, 5.0V, 9.0V, and 15V using logic level on the VSEL1 and VSEL2 pins.
対象となる製品
関連資料
-
MAX77726EVKIT User Guide: Evaluates MAX77726 (Rev. 0)2026/01/14PDF1 MB
