ユーザ・ガイド Rev. 0
1 すべてを表示

製品概要

機能と利点

  • 3V to 36V Input Supply Range
  • 5V or 3.3V Fixed Output Voltage, or Adjustable Between 0.8V and 10V
  • Delivers up to 6A Output Current (up to 5A for MAX26405, up to 4A for MAX26404)
  • Frequency Synchronization Input
  • 99% Duty-Cycle Operation with Low Dropout
  • Spread Spectrum Frequency Modulation
  • Voltage-Monitoring PGOOD Output
  • Proven PCB Layout
  • Fully Assembled and Tested

製品概要

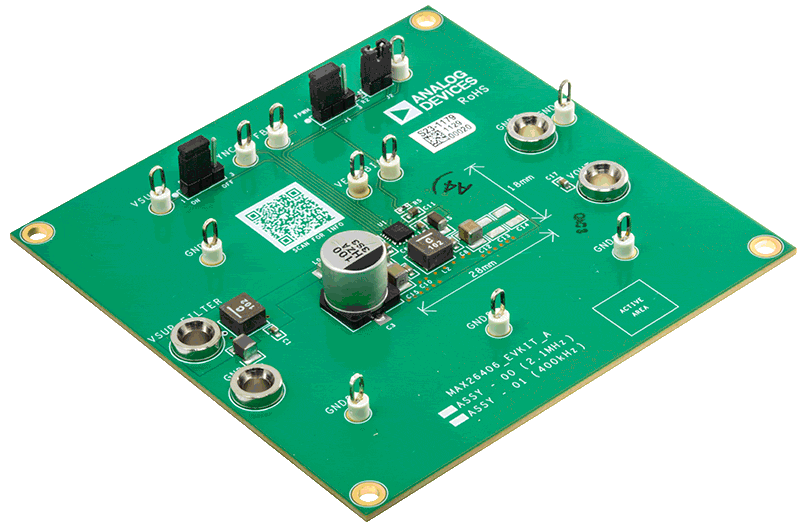

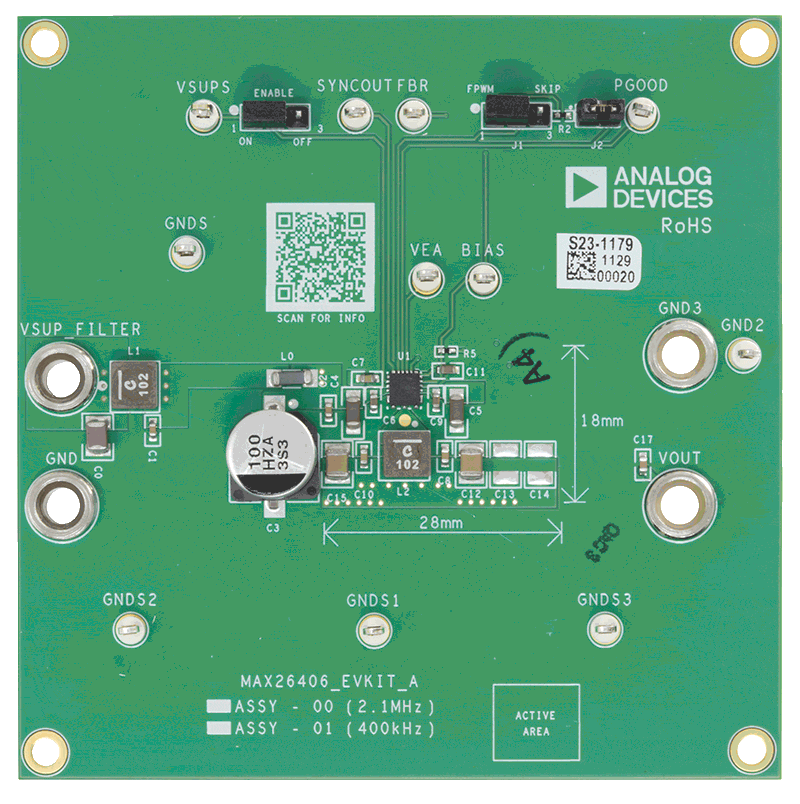

The MAX26406 evaluation kit (EV kit) provides a proven design to evaluate the MAX26406, 2.1MHz synchronous Silent Switcher® buck converter in a 17-pin, side-wettable FC2QFN package. The various test points and jumpers are included for the evaluation.

The MAX26406 EV kit comes with the MAX26406AFOBY+ installed (2.1MHz, 3.3V). The MAX26406 EV kit output voltage is fixed and is easily configured with minimum component changes. Use this EV kit to evaluate all variants of the MAX26404/MAX26405/MAX26406 with minimal component changes.

対象となる製品

はじめに

  • MAX26406 EV kit
  • Power supply
  • Voltmeter
  • Electronic load
