EVAL-ADRF6614
ADRF6614 Evaluation Board
トップへ
-web.gif?rev=2de928c95a544118b51e43005ddf417b&sc_lang=ja&h=500&thn=1&hash=C308E0336637BA5A54178CD17BE2F401)
-web.gif?rev=4beb6d8691c14841a06575ea0eea1993&sc_lang=ja&h=500&thn=1&hash=3F263745E56CD4FDC3EBAE993113CB7C)
-web.gif?rev=2de928c95a544118b51e43005ddf417b&sc_lang=ja&h=270&thn=1&hash=55C9F4BC115CF7D52075005999E89E34)
-web.gif?rev=4beb6d8691c14841a06575ea0eea1993&sc_lang=ja&h=270&thn=1&hash=E177F82D51D1B7FB4CB7A061B4FD04D3)
製品概要
機能と利点
- Full featured evaluation board for the ADRF6612/ADRF6614
- Single supply: 5 V operation
製品概要

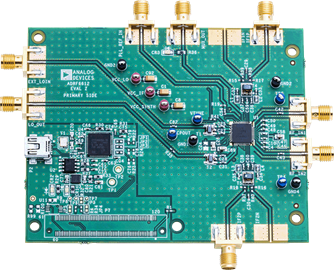

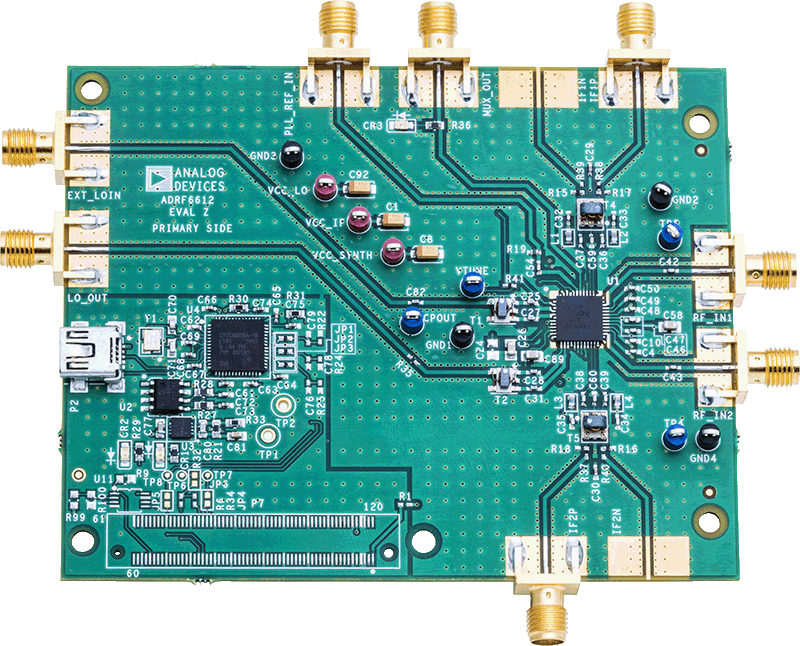

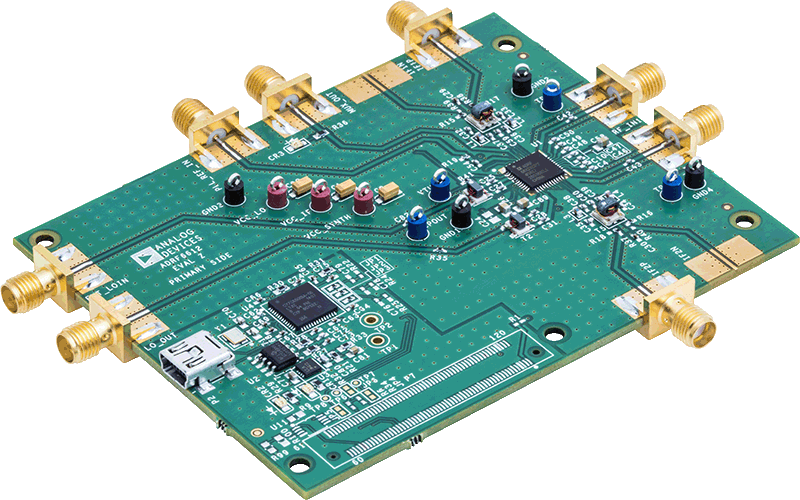

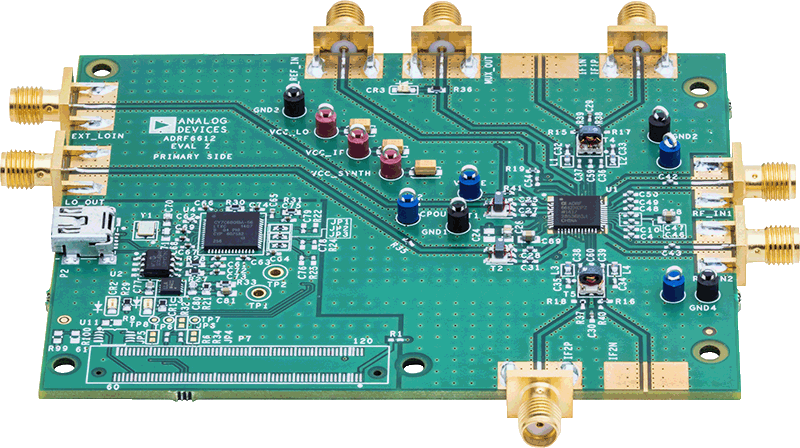

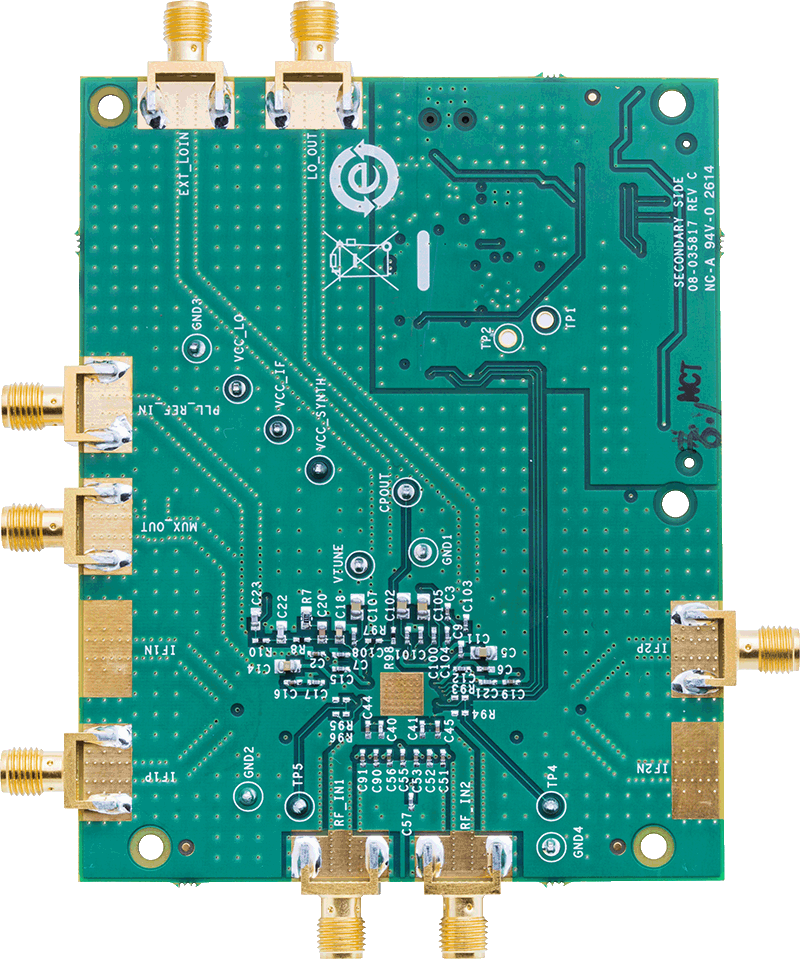

This page contains information for evaluating the ADRF6612/ADRF6614, 700 MHz to 3000 MHz Rx Dual Mixer with Integrated Fractional-N PLL and VCO. The ADRF6612/ADRF6614 is a full featured evaluation board with a single supply of 5 V.The user guide UG-969 allows the user to quickly power up and run the software for the ADRF6612/ADRF6614 integrated synthesizer and mixers. It complements the ADRF6612/ADRF6614 data sheet, which should be used in conjunction with the user guide.
The ADRF6612/ADRF6614 evaluation board provides all of the support circuitry required to operate the ADRF6612/ADRF6614 in various modes and configurations.
関連資料
-
ADRF6614 Gerber Files2017/05/19ZIP377 K
