ユーザ・ガイド Rev. 0
1 すべてを表示

製品概要

機能と利点

  • Full-featured evaluation board for the ADRF5203
  • Easy connection to the test equipment
  • Thru line for calibration

製品概要

The ADRF5203 is a differential SPDT switch with DC input range ±8V manufactured in the silicon process.

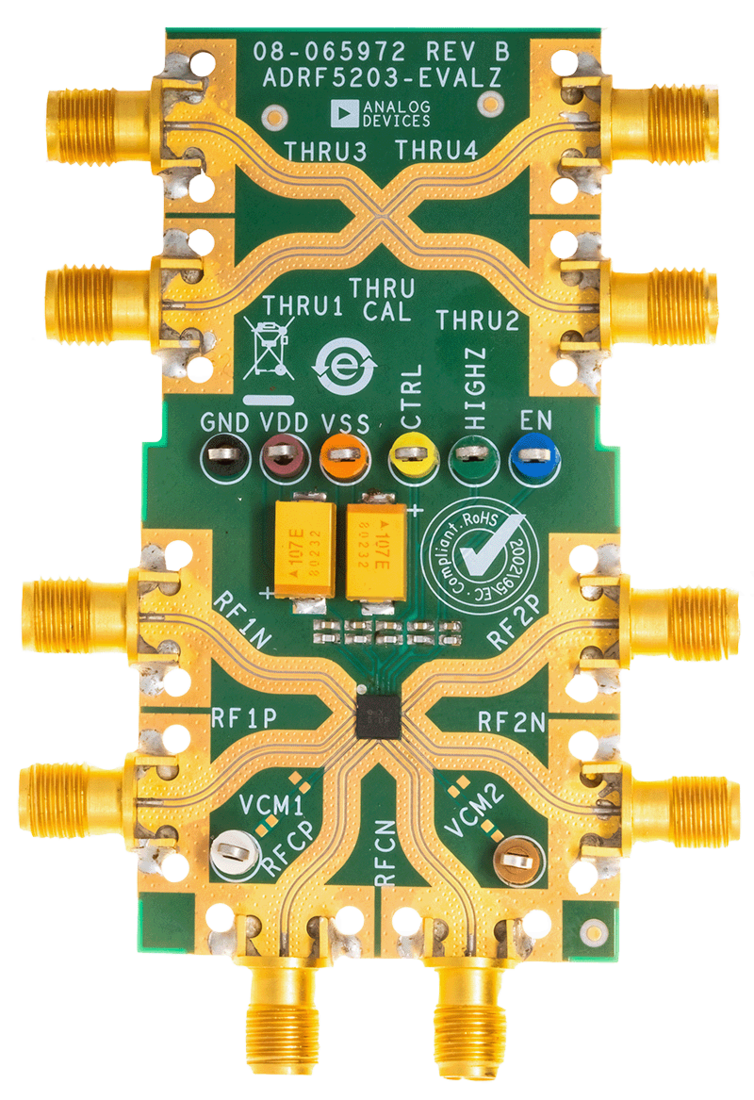

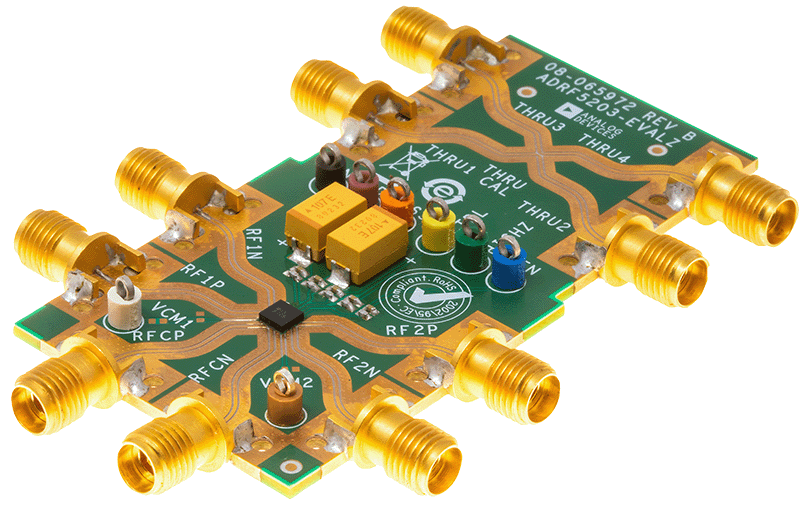

This user guide describes the ADRF5203-EVALZ evaluation board, designed to evaluate the features and performance of the ADRF5203. Figure 1 shows a photograph of the evaluation board.

Full specifications on the ADRF5203 are available in the ADRF5203 data sheet from Analog Devices, Inc. Consult the data sheet with this user guide when using the ADRF5203-EVALZ evaluation board.

対象となる製品

はじめに

EQUIPMENT NEEDED

  • DC power supplies
  • Network analyzer
