EVAL-ADRF5162
Evaluating the ADRF5162 High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz
トップへ
製品概要
機能と利点
- Full featured evaluation board for the ADRF5162
- Easy connection to the test equipment
- Thru line for calibration
製品概要
The ADRF5162 is a single-pole, double-throw (SPDT) switch manufactured in the silicon process.

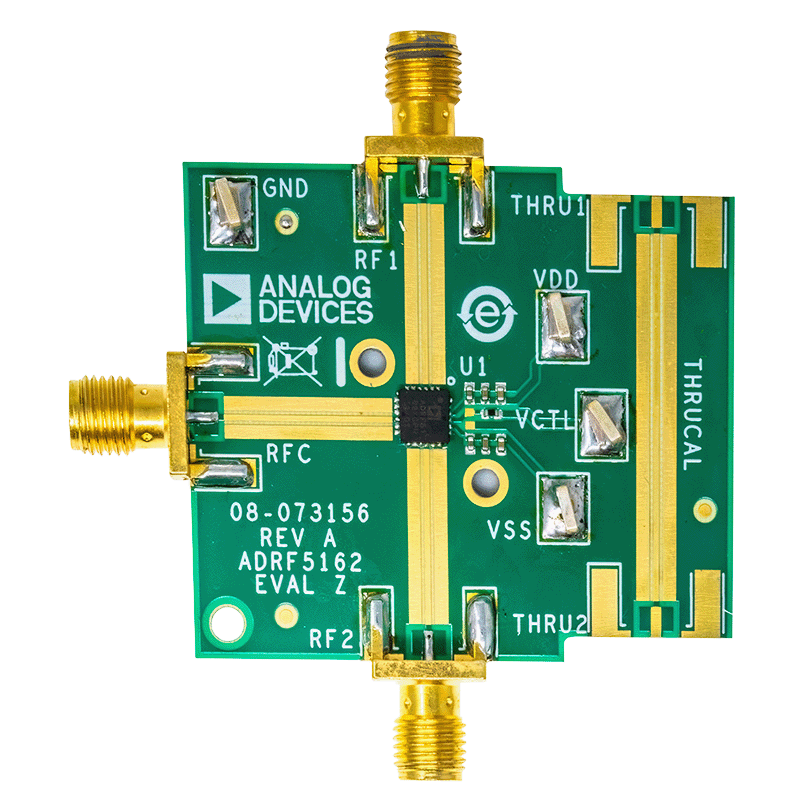

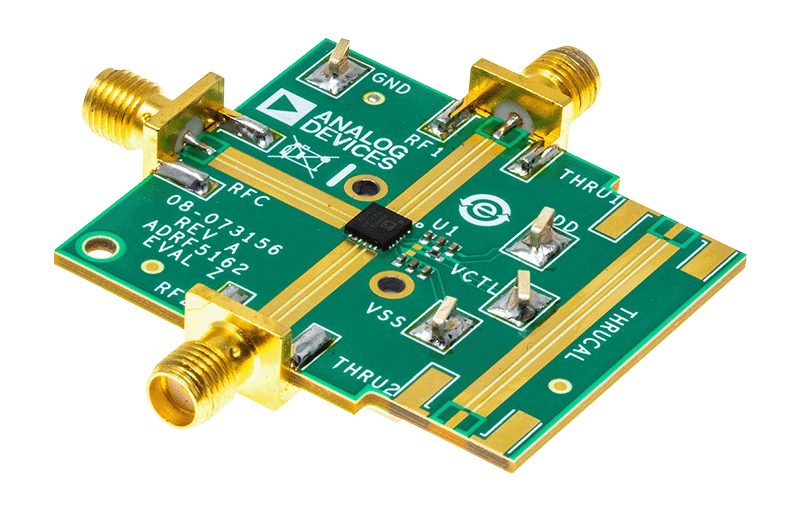

This user guide describes the ADRF5162-EVALZ evaluation board, designed to simply evaluate the features and performance of the ADRF5162. Figure 1 shows a photograph of the evaluation board.
The ADRF5162 data sheet provides full specifications for the ADRF5162. Refer to the ADRF5162 data sheet with this user guide when using the ADRF5162-EVALZ.
