製品概要

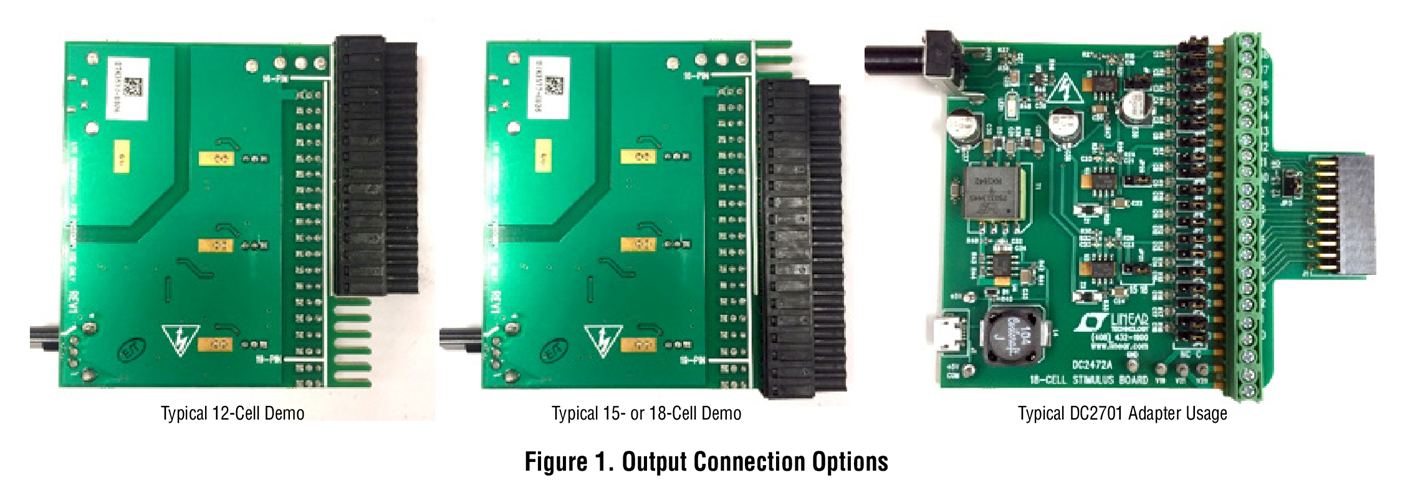

Demonstration circuit 2472A is a USB-powered resistorstring, voltage ladder with variable output. The DC2472A provides a simple battery stack simulator for connection directly to most of ADI's LTC68xx “battery stack monitor” demo boards.
関連資料
-
DC2472A - Schematics2017/12/05PDF44K
-
DC2472A - Demo Board Manual2017/12/05PDF267K
-
DC2472A - Design Files2017/12/05ZIP1M
