DC1272A
LT3693EMSE Demo Board | 6.3V ≤ VIN ≤ 36V, VOUT = 5V @ 3.5A
トップへ
製品概要
製品概要
Demonstration circuit 1272 is a monolithic stepdown DC/DC switching regulator featuring LT3693. The demo board is designed for 5V@3.5A output from a 6.3V to 36V input.
対象となる製品
関連資料
-

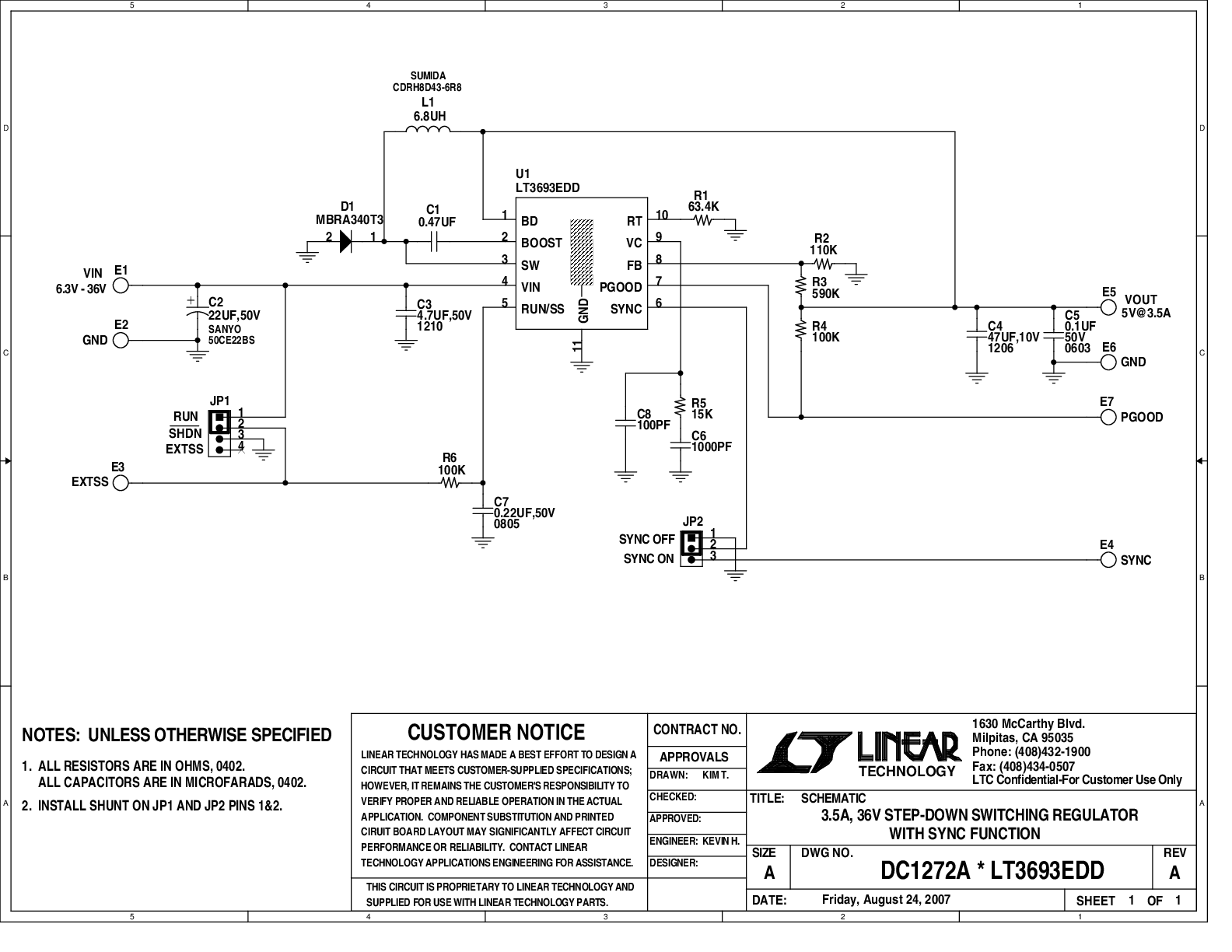

DC1272A - Schematic2009/09/24PDF28K
-
DC1272A - Demo Manual2009/09/24PDF646K
-
DC1272A - Design File2009/09/24ZIP694K
