# Add Margining Capability to a DC/DC Converter

### 要約

You can easily add margining capability (digital adjustment of the output voltage) to a DC/DC converter by adding a 2- or 4-channel, I^{2}C-adjustable current DAC (DS4402 or DS4404) at the converter's feedback input. Because each DAC output is 0mA at power up, the extra circuitry is transparent to the system until a command is written via the I^{2}C bus.

### Introduction

A similar version of this article appeared in the September 18, 2008 issue of *EDN* magazine.

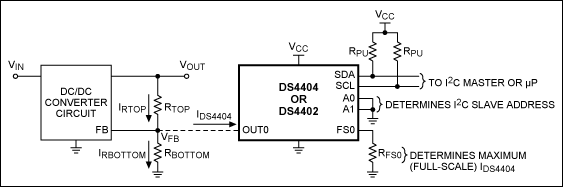

You can easily add margining capability to a DC/DC converter (digital adjustment of the output voltage) by making a single connection to the existing circuit as shown by the dotted line in Figure 1. The extra IC is a 2- or 4-channel, I^{2}C-adjustable current DAC (DS4402 or DS4404). Because each DAC output is 0mA at power up, the extra circuitry is essentially transparent to the system until a command is written via the I^{2}C bus.

As an example, assume V_{IN} = 3V to 5.5V, V_{OUT} = 1.8V (the desired nominal output voltage), and V_{FB} = 0.6V (not to be confused with V_{REF} of the DS4404). You can obtain the V_{FB} value from the DC/DC converter datasheet, being sure to verify that it is within the OUTx voltage range specified in the current DAC datasheet (specified as V_{OUT:SINK} and V_{OUT:SOURCE} depending on whether you are sinking or sourcing current). It's also important to verify the input impedance of the DC/DC converter's FB pin (the circuit shown assumes a high impedance).

Assume we want to add a ±20% margining capability to the DC/DC converter output (V_{OUT}):

V_{OUTMAX} = 2.16V

V_{OUTNOM} = 1.8V

V_{OUTMIN} = 1.44V

First, determine the necessary relationship between R_{TOP} and R_{BOTTOM} that yields the nominal output (V_{OUTNOM}) when I_{DS4404} = 0A:

Solving for R_{TOP},

For our example,

The current (I_{DS4404}) required to make V_{OUT} increase to V_{OUTMAX} is derived by summing currents at the FB node:

This equation can be simplified by solving Equation 1 for R_{BOTTOM} and substituting, which yields:

In terms of margin percentage:

where margin = 0.2, to implement ±20% margining in this case. Before you can use this relationship to calculate R_{TOP} and R_{BOTTOM}, you must select the full-scale current I_{FS}.

According to the DS4404 datasheet, the full-scale current (specified as I_{OUT:SINK} or I_{OUT:SOURCE}) must be between 0.5mA and 2.0mA, to guarantee the specifications for accuracy and linearity. Unfortunately, no formula is available for calculating the ideal full-scale current. That value is influenced by the desired number of steps, the step size, and the values for R_{TOP} and R_{BOTTOM}. Another factor affecting the full-scale current value would be the requirement that a particular register setting correspond to a particular margin percentage.

In any case, your selection of a full-scale current will likely require several iterations, in which you select an arbitrary value (within the range), and then calculate R_{TOP}, R_{BOTTOM}, R_{FS}, and step size. When you've determined an acceptable full-scale current value, you may want to further adjust it (or some of the resistor values) to ensure that the resistor values finally specified are commonly available.

To calculate R_{TOP} for the original example, we choose IFS = IDS4404, which gives us 31 equal increments (steps) from V_{OUTNOM} to V_{OUTMAX}, as well as 31 steps from V_{OUTNOM} to V_{OUTMIN}. This resolution is more than adequate for our example.
We could, for instance, begin by arbitrarily choosing I_{FS} in the center (1.25mA) of the specified range, and then performing all the calculations. Instead, for illustrative purposes we perform calculations for the endpoints of the range (0.5mA, 2.0mA).

So, for I_{FS} = I_{DS4404} = 0.5mA:
Using Equation 3 and solving for R_{TOP},

To calculate R_{FS}, use the formula in the DS4404 datasheet plus the V_{REF} value also found in that datasheet:

Finally, for completeness we determine the DS4404 output current as a function of register setting:
I_{OUT}(register setting) = step size × register setting.

Note that the register setting above does not include the sign bit, which is used to select sink or source. The DS4404 sinks current when the sign bit = 0, making V_{OUT} increase to V_{OUTMAX}. It sources current when the sign bit = 1, making V_{OUT} decrease towards V_{OUTMIN}.

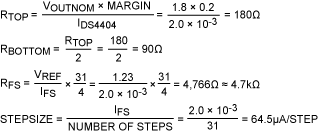

For I_{FS} = I_{DS4404} = 2.0mA:

Comparing R_{TOP} and R_{BOTTOM} for the two cases (I_{FS} = 0.5mA vs. 2.0mA), you can see that I_{FS} = 0.5mA is more attractive because the resistances are higher.
