Analog Devices Wireless Sensor Network (WSN) Solutions

Industry WSN System Theory and Typical Architecture

Wireless sensor networks (WSNs) consist of spatially distributed autonomous sensors to monitor physical or environmental conditions, such as temperature, sound, vibration, pressure, humidity, motion, or pollutants. These sensors cooperatively pass their data through the network to a main location, the base station. Modern WSNs are bidirectional, enabling users to control the activity of the sensors.
WSNs are built of "nodes," from as little as a few to potentially thousands, with each node connected to one or more sensors. Each such sensor network node typically has several parts: a radiotransceiver with an internal antenna or connection to an external antenna, a microcontroller, an electronic circuit for interfacing with the sensors, and an energy source, usually a battery or an embedded form of energy harvesting.

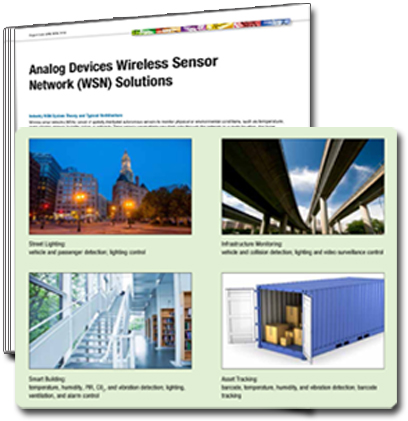

> To learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.

Free Download Now

Main Signal Chain of WSN Node


Notes: The signal chains above are representative of a wireless sensor network application system. The technical requirements of the blocks vary, but the products listed in the table are representative of ADI solutions that meet some of those requirements.

Product Table List

Product Type Sensor ISM Band Transceiver Processor Power Supply
ADuCRF101/ADuCM3xx/ADuC7026 ADP125/ADP160/ADP3330/ADP5054
Product Type Energy Harvesting Amp Mux ADC
ADP5090 AD8236/ADA4692-2/ADA4692-4 ADG439F/ADG509F/ADG1208/ADG1209
More WSN applications and products information
The complete WSN demo system
