ADI Radar Solutions

Overview


water-page-pic-en

Radar, originally developed during World War II, has myriad applications today, such as defense, civilian (air traffic control and weather), and automotive. ADI provides Classic Radar Signal Chain (Super-Heterodyne Architectures) and Next-Generation Radar Signal Chain (Direct RF and Higher IF Sampling). Meanwhile, ADI provides the whole signal chain chipsets for 24 GHz radar, which can be used in automotive ADAS and industrial applications.





ADI offers:
•  Complete RF-to-bits solutions
•  Highest levels of performance
•  Smaller size, Lower power and system cost

Download


To Learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.

Free Download Now

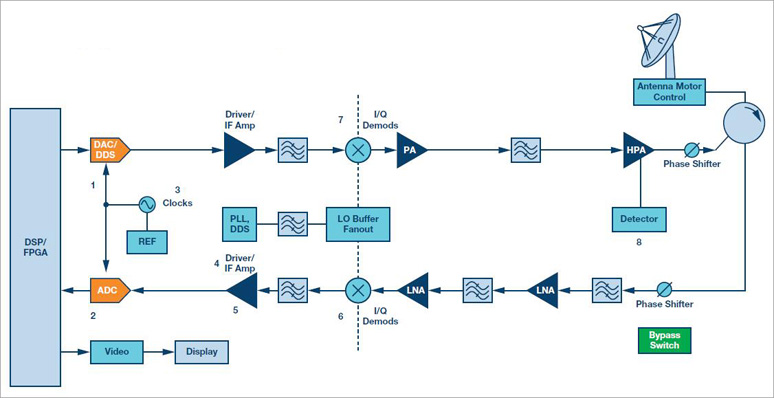

System Block Diagram


radar-solutions-pic1

Product

Product Type 1.RF Agile Transceivers 2. ADCs 3. Clock
Model
AD9361/AD9364 AD9625/AD9680 HMC7044
Product Type 4. Digital Gain Amplifier 5. Track-and-Hold Amplifiers 6. Mixers
Model
ADA4961 HMC661/HMC1061 ADL5367/HMC558A/HMC773
Product Type 7. I/Q Demodulators 8. Detectors 9. Switches
Model
ADL5363/ADL5380 ADL6010/HMC1094/
HMC1013
HMC232A/HMC986A/
ADGM1304

Other

Circuits From the Lab® Reference Circuits for Radar Technical Articles/Application Notes Design Tools/Forums
If You Need More ADI Radar Applications and Products Information, Please Visit: www.analog.com/en/applications/markets/aerospace-and-defense/radar.html
