LTC4260

Positive High Voltage Hot Swap Controller with I2C Compatible Monitoring

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 12
1ku List Price Starting From $7.84
Features
  • Allows Safe Insertion into Live Backplane
  • 8-Bit ADC Monitors Current and Voltage
  • I2C/SMBus Interface
  • Wide Operating Voltage Range: 8.5V to 80V
  • High Side Drive for External N-Channel MOSFET
  • Input Overvoltage/Undervoltage Protection
  • Optional Latchoff or Autoretry After Faults
  • Alerts Host After Faults
  • Foldback Current Limiting
  • Available in 24-Lead SO, 24-Lead Narrow SSOP and 32-Lead (5mm × 5mm) QFN Packages
Additional Details
show more Icon

The LTC4260 Hot Swap controller allows a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at an adjustable rate. An I2C interface and onboard ADC allow monitoring of board current, voltage and fault status.

The device features adjustable analog foldback current limit with latch off or automatic restart after the LTC4260 remains in current limit beyond an adjustable time-out delay.

The controller has additional features to interrupt the host when a fault has occurred, notify when output power is good, detect insertion of a load card and power-up in either the on or off state.

Applications

  • Electronic Circuit Breakers
  • Live Board Insertion
  • Computers, Servers
Part Models 12
1ku List Price Starting From $7.84

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4260CGN#PBF
  • HTML
  • HTML
LTC4260CGN#TRPBF
  • HTML
  • HTML
LTC4260CSW#PBF
  • HTML
  • HTML
LTC4260CSW#TRPBF
  • HTML
  • HTML
LTC4260CUH#PBF
  • HTML
  • HTML
LTC4260CUH#TRPBF
  • HTML
  • HTML
LTC4260IGN#PBF
  • HTML
  • HTML
LTC4260IGN#TRPBF
  • HTML
  • HTML
LTC4260ISW#PBF
  • HTML
  • HTML
LTC4260ISW#TRPBF
  • HTML
  • HTML
LTC4260IUH#PBF
  • HTML
  • HTML
LTC4260IUH#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 10, 2022

- 22_0177

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC4260CGN#PBF

PRODUCTION

LTC4260CGN#TRPBF

PRODUCTION

LTC4260IGN#PBF

PRODUCTION

LTC4260IGN#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0176

Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL

LTC4260CSW#PBF

PRODUCTION

LTC4260CSW#TRPBF

PRODUCTION

LTC4260ISW#PBF

PRODUCTION

LTC4260ISW#TRPBF

PRODUCTION

Jan 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC4260CUH#PBF

PRODUCTION

LTC4260CUH#TRPBF

PRODUCTION

LTC4260IUH#PBF

PRODUCTION

LTC4260IUH#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 10, 2022

- 22_0177

arrow down

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC4260CGN#PBF

PRODUCTION

LTC4260CGN#TRPBF

PRODUCTION

LTC4260IGN#PBF

PRODUCTION

LTC4260IGN#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0176

arrow down

Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL

LTC4260CSW#PBF

PRODUCTION

LTC4260CSW#TRPBF

PRODUCTION

LTC4260ISW#PBF

PRODUCTION

LTC4260ISW#TRPBF

PRODUCTION

Jan 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC4260CUH#PBF

PRODUCTION

LTC4260CUH#TRPBF

PRODUCTION

LTC4260IUH#PBF

PRODUCTION

LTC4260IUH#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

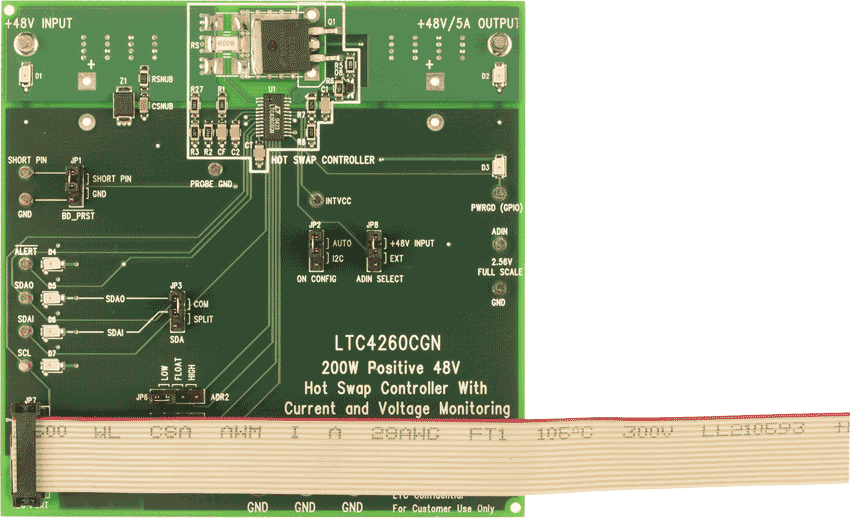

DC786A

LTC4260CGN | 200W Positive 48V Hot Swap Controller With Current and Voltage Monitoring (requires DC590)

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.

Purchase Linduino

windows iconapple iconcomputer icon
redirectbutton
Reference Designs

Reference Designs 1

DE-10 Nano Kit

zoomopens a dialog

terasic-de10-nano-kit

terasic-de10-nano-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
