LT4363

High Voltage Surge Stopper with Current Limit

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 44
1ku List Price Starting From $2.99
Features
  • Withstands Surges Over 80V with VCC Clamp
  • Wide Operating Voltage Range: 4V to 80V
  • Adjustable Output Clamp Voltage
  • Fast Overcurrent Limit: Less Than 5μs
  • Reverse Input Protection to –60V
  • Adjustable UV/OV Comparator Thresholds
  • Low 7μA Shutdown Current
  • Shutdown Pin Withstands –60V to 100V
  • Adjustable Fault Timer
  • Controls N-Channel MOSFET
  • Less Than 1% Retry Duty Cycle During Faults, LT4363-2
  • Available in 12-Pin (4mm × 3mm) DFN, 12-Pin MSOP or 16-Pin SO Packages
Additional Details
show more Icon

The LT4363 surge stopper protects loads from high voltage transients. It regulates the output during an overvoltage event, by controlling the gate of an external N-channel MOSFET. The output is limited to a safe value allowing the loads to continue functioning. The LT4363 also monitors the voltage drop between the SNS and OUT pins to protect against overcurrent faults. An internal amplifier limits the voltage across the current sense resistor to 50mV. In either fault condition, a timer is started inversely proportional to MOSFET stress. Before the timer expires, the FLT pin pulls low to warn of an impending power down. If the condition persists, the MOSFET is turned off. The LT4363-1 remains off until reset whereas the LT4363-2 restarts after a cool down period.

Two precision comparators can monitor the input supply for overvoltage (OV) and undervoltage (UV) conditions. When the potential is below the UV threshold, the external MOSFET is kept off. If the input supply voltage is above the OV threshold, the MOSFET is not allowed to turn back on. Back-to-back MOSFETs can be used in lieu of a Schottky diode for reverse input protection, reducing voltage drop and power loss. A shutdown pin reduces the quiescent current to less than 7μA during shutdown.

Applications

  • Avionic/Industrial Surge Protection
  • Hot Swap/Live Insertion
  • High Side Switch for Battery Powered Systems
  • Intrinsic Safety Applications
Part Models 44
1ku List Price Starting From $2.99

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT4363CDE-1#PBF
  • HTML
  • HTML
LT4363CDE-1#TRPBF
  • HTML
  • HTML
LT4363CDE-2#PBF
  • HTML
  • HTML
LT4363CDE-2#TRPBF
  • HTML
  • HTML
LT4363CMS-1#PBF
  • HTML
  • HTML
LT4363CMS-1#TRPBF
  • HTML
  • HTML
LT4363CMS-2#PBF
  • HTML
  • HTML
LT4363CMS-2#TRPBF
  • HTML
  • HTML
LT4363CS-1#PBF
  • HTML
  • HTML
LT4363CS-1#TRPBF
  • HTML
  • HTML
LT4363CS-2#PBF
  • HTML
  • HTML
LT4363CS-2#TRPBF
  • HTML
  • HTML
LT4363HDE-1#PBF
  • HTML
  • HTML
LT4363HDE-1#TRPBF
  • HTML
  • HTML
LT4363HDE-2#PBF
  • HTML
  • HTML
LT4363HDE-2#TRPBF
  • HTML
  • HTML
LT4363HMS-1#PBF
  • HTML
  • HTML
LT4363HMS-1#TRPBF
  • HTML
  • HTML
LT4363HMS-2#PBF
  • HTML
  • HTML
LT4363HMS-2#TRPBF
  • HTML
  • HTML
LT4363HS-1#PBF
  • HTML
  • HTML
LT4363HS-1#TRPBF
  • HTML
  • HTML
LT4363HS-2#PBF
  • HTML
  • HTML
LT4363HS-2#TRPBF
  • HTML
  • HTML
LT4363IDE-1#PBF
  • HTML
  • HTML
LT4363IDE-1#TRPBF
  • HTML
  • HTML
LT4363IDE-2#PBF
  • HTML
  • HTML
LT4363IDE-2#TRPBF
  • HTML
  • HTML
LT4363IMS-1#PBF
  • HTML
  • HTML
LT4363IMS-1#TRPBF
  • HTML
  • HTML
LT4363IMS-2#PBF
  • HTML
  • HTML
LT4363IMS-2#TRPBF
  • HTML
  • HTML
LT4363IS-1#PBF
  • HTML
  • HTML
LT4363IS-1#TRPBF
  • HTML
  • HTML
LT4363IS-2#PBF
  • HTML
  • HTML
LT4363IS-2#TRPBF
  • HTML
  • HTML
LT4363MPMS-1#PBF
  • HTML
  • HTML
LT4363MPMS-1#TRPBF
  • HTML
  • HTML
LT4363MPMS-2#PBF
  • HTML
  • HTML
LT4363MPMS-2#TRPBF
  • HTML
  • HTML
LT4363MPS-1#PBF
  • HTML
  • HTML
LT4363MPS-1#TRPBF
  • HTML
  • HTML
LT4363MPS-2#PBF
  • HTML
  • HTML
LT4363MPS-2#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT4363CMS-1#PBF

PRODUCTION

LT4363CMS-1#TRPBF

PRODUCTION

LT4363CMS-2#PBF

PRODUCTION

LT4363CMS-2#TRPBF

PRODUCTION

LT4363HMS-1#PBF

PRODUCTION

LT4363HMS-1#TRPBF

PRODUCTION

LT4363HMS-2#PBF

PRODUCTION

LT4363HMS-2#TRPBF

PRODUCTION

LT4363IMS-1#PBF

PRODUCTION

LT4363IMS-1#TRPBF

PRODUCTION

LT4363IMS-2#PBF

PRODUCTION

LT4363IMS-2#TRPBF

PRODUCTION

LT4363MPMS-1#PBF

PRODUCTION

LT4363MPMS-1#TRPBF

PRODUCTION

LT4363MPMS-2#PBF

PRODUCTION

LT4363MPMS-2#TRPBF

PRODUCTION

Aug 6, 2022

- 22_0173

Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]

LT4363CS-1#PBF

PRODUCTION

LT4363CS-1#TRPBF

PRODUCTION

LT4363CS-2#PBF

PRODUCTION

LT4363CS-2#TRPBF

PRODUCTION

LT4363HS-1#PBF

PRODUCTION

LT4363HS-1#TRPBF

PRODUCTION

LT4363HS-2#PBF

PRODUCTION

LT4363HS-2#TRPBF

PRODUCTION

LT4363IS-1#PBF

PRODUCTION

LT4363IS-1#TRPBF

PRODUCTION

LT4363IS-2#PBF

PRODUCTION

LT4363IS-2#TRPBF

PRODUCTION

LT4363MPS-1#PBF

PRODUCTION

LT4363MPS-1#TRPBF

PRODUCTION

LT4363MPS-2#PBF

PRODUCTION

LT4363MPS-2#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT4363CMS-1#PBF

PRODUCTION

LT4363CMS-1#TRPBF

PRODUCTION

LT4363CMS-2#PBF

PRODUCTION

LT4363CMS-2#TRPBF

PRODUCTION

LT4363HMS-1#PBF

PRODUCTION

LT4363HMS-1#TRPBF

PRODUCTION

LT4363HMS-2#PBF

PRODUCTION

LT4363HMS-2#TRPBF

PRODUCTION

LT4363IMS-1#PBF

PRODUCTION

LT4363IMS-1#TRPBF

PRODUCTION

LT4363IMS-2#PBF

PRODUCTION

LT4363IMS-2#TRPBF

PRODUCTION

LT4363MPMS-1#PBF

PRODUCTION

LT4363MPMS-1#TRPBF

PRODUCTION

LT4363MPMS-2#PBF

PRODUCTION

LT4363MPMS-2#TRPBF

PRODUCTION

Aug 6, 2022

- 22_0173

arrow down

Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]

LT4363CS-1#PBF

PRODUCTION

LT4363CS-1#TRPBF

PRODUCTION

LT4363CS-2#PBF

PRODUCTION

LT4363CS-2#TRPBF

PRODUCTION

LT4363HS-1#PBF

PRODUCTION

LT4363HS-1#TRPBF

PRODUCTION

LT4363HS-2#PBF

PRODUCTION

LT4363HS-2#TRPBF

PRODUCTION

LT4363IS-1#PBF

PRODUCTION

LT4363IS-1#TRPBF

PRODUCTION

LT4363IS-2#PBF

PRODUCTION

LT4363IS-2#TRPBF

PRODUCTION

LT4363MPS-1#PBF

PRODUCTION

LT4363MPS-1#TRPBF

PRODUCTION

LT4363MPS-2#PBF

PRODUCTION

LT4363MPS-2#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 5

reference details image

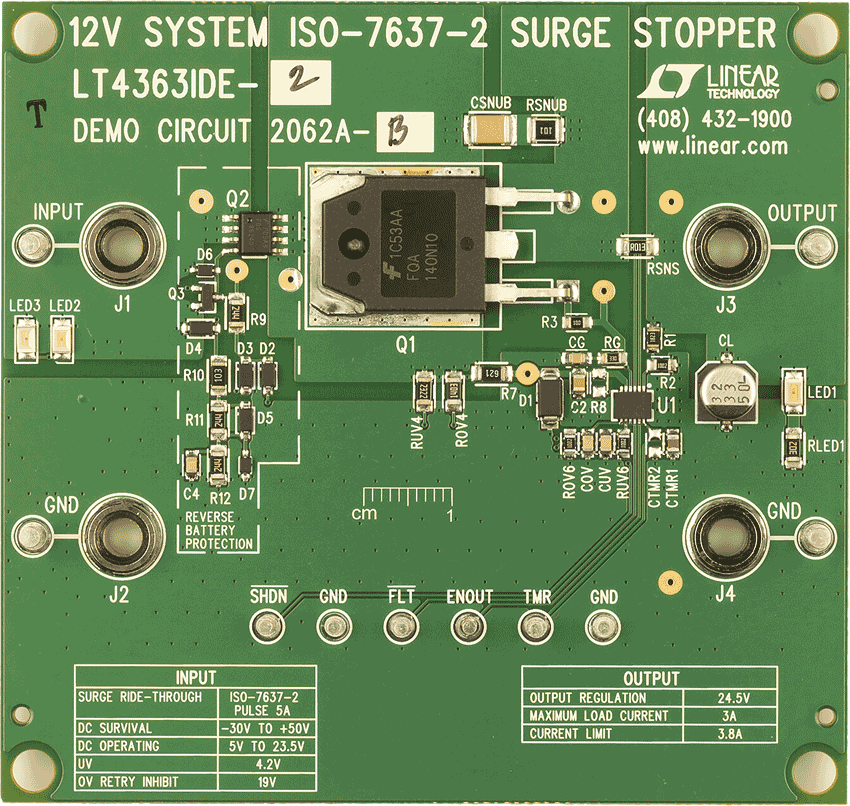

DC2062A-B

LT4363IDE-2 Demo Board: 12V System ISO-7637-2 Surge Stopper, Auto-Retry Version

reference details image

DC1935A-A

LT4363-1 Demo Board: High Voltage Surge Stopper with Current Limit, Latch-Off Version

reference details image

DC1935A-B

LT4363-2 Demo Board: High Voltage Surge Stopper with Current Limit, Auto-Retry Version

reference details image

DC2062A-A

LT4363IDE-1 Demo Board: 12V System ISO-7637-2 Surge Stopper, Latch-Off Version
