ADH1048S

Double Balanced Mixer SMT, 2 - 18 GHz

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 1
1ku List Price
price unavailable
Features
  • Passive: No DC bias required
  • High input IP3: 23 dBm
  • LO/RF isolation: 38 dB
  • LO/IF isolation: 28 dB
  • RF/IF isolation: 15 dB
  • IF bandwidth: DC - 4 GHz
  • Downconverter applications

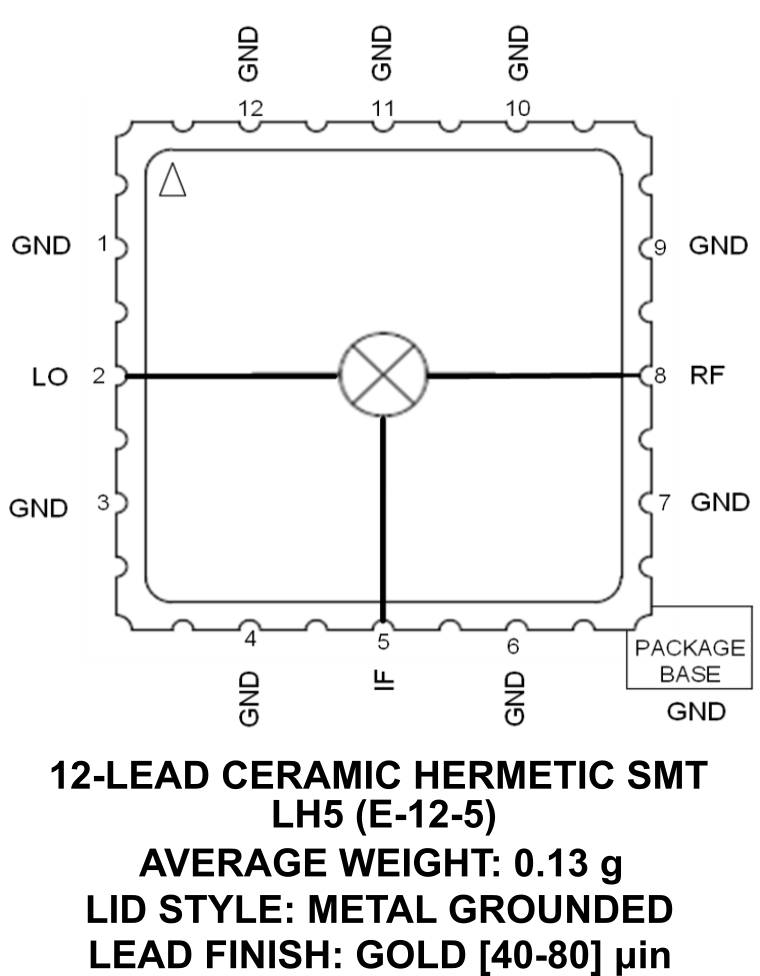

  • 12-lead ceramic 3x3 mm SMT package: 9 mm²
Additional Details
show more Icon

The HMC1048LC3B is a general purpose double balanced mixer that can be used as a downconverter with DC to 4 GHz at the IF port and 2 to 18 GHz at the RF port. This mixer requires no external components or matching circuitry. The HMC1048LC3B provides excellent LO/RF, LO/IF and RF/IF isolation The mixer operates with LO drive levels from +9 dBm to +17 dBm. The HMC1048LC3B eliminates the need for wire bonding and allows the use of surface mount manufacturing techniques.

Applications

  • Filtering LO Harmonics to
    Reduce Modulator Sideband
    Rejection & Demodulator
    Image Rejection
  • Amplifier Harmonic Filtering
  • RF Filtering


Part Models 1
1ku List Price
price unavailable

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
HMC8250LH5
