16 Channel-To-Channel Isolated Ai Solution For High End TC/RTD Modules

Overview

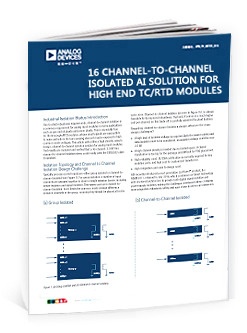

plc-ai-solution_en

Due to strict robustness requirements, channel-to-channel isolation is a common requirement for analog input modules in many applications such as gas and oil plants and power plants. This is especially true for thermocouple/RTD modules, whose small signals are susceptible to noise and where the bare sensing element may be exposed to high common-mode voltages. This article will outline a high density, easy to design, channel-to-channel isolation solution for analog input modules. Test results are included and verified that a 16-channel, 2.5 kV rms channel-to-channel isolation demo could easily pass the EN55022 class B standard.

Download


To Learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.

Free Download Now

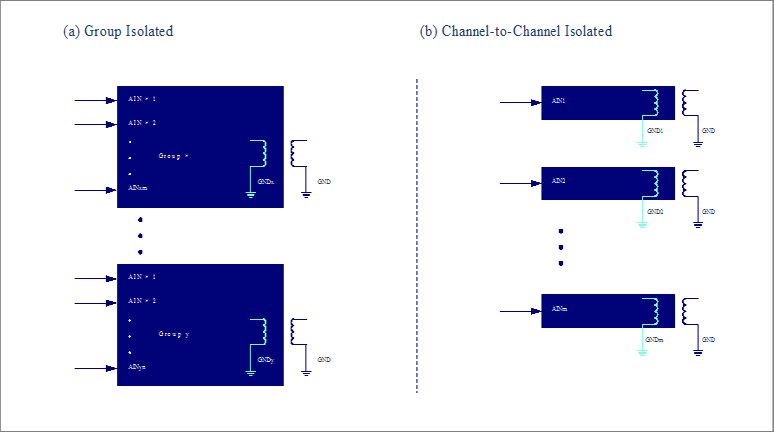

System Block Diagram


plc-ai-solution-pic_en

Other

Reference

AN-0971: Recommendations for Control of Radiated Emissions with isoPower Devices

AN-1349: PCB Implementation Guidelines to Minimize Radiated Emissions on the ADM2582E/ADM2587E RS-485/RS-422 Transceivers
