Continuous Non Invasive Blood Pressure Solutions

Overview


continuous-non-invasive-blood-pressure-solutions_en

Continuous Non Invasive Blood Pressure (cNIBP) is one kind of technology to monitor the human body's systolic and diastolic blood pressure real time or in short time interval. ADI provides an extensive selection of high integration PPG AFE, ECG AFE, low power MCU, power management solution and flexible discrete component to maximize product quality and reliability for wearable cNIBP application. In addition, ADI provides evaluation boards, simulation tools and applications expertise to support customer design and development efforts.





ADI offers:
  • Main Signal Chain- Discrete component
  • Main Signal Chain- AFE based
  • Power Solution

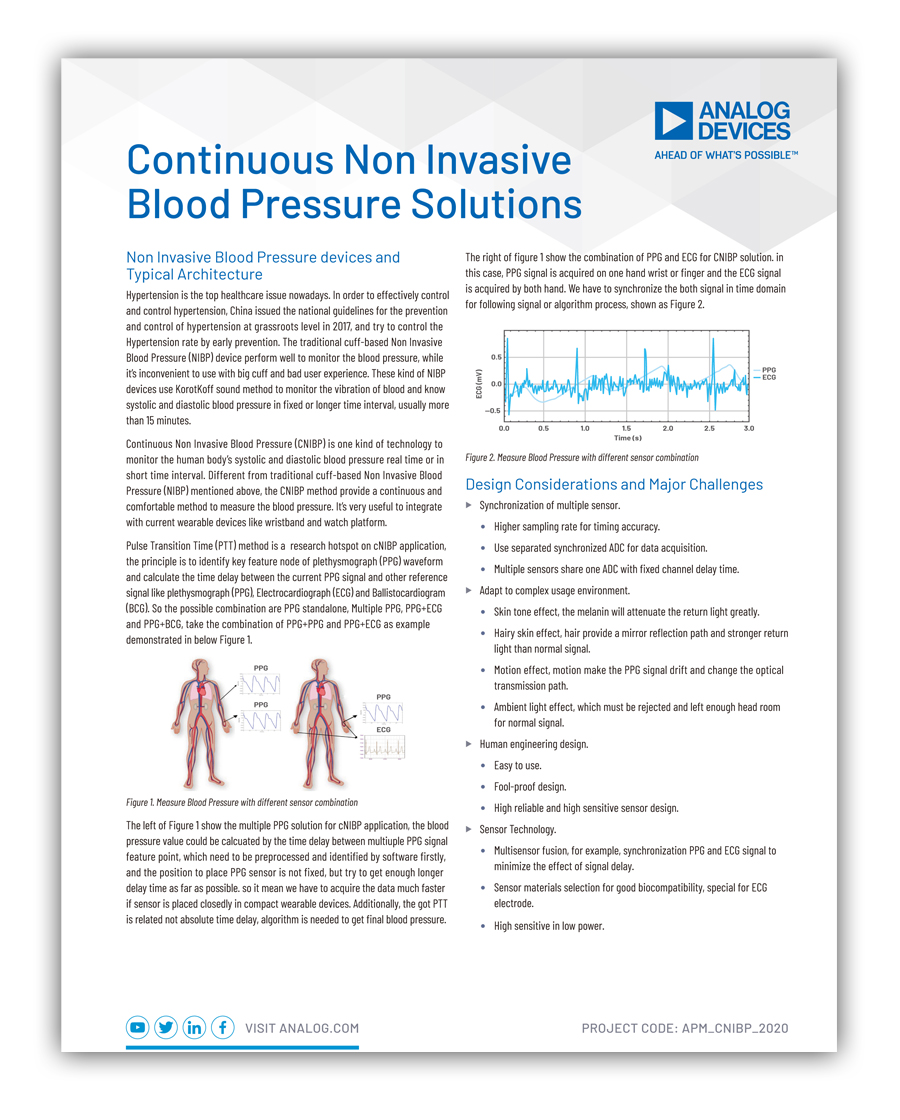

Download


To Learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.

Free Download Now

System Block Diagram

apm-continuous-non-invasive-blood-pressure-solutions-pic

Product

Product Type Microprocessor ECG Circuit In-Amp ECG Circuit Op Amp
Model
ADuCM350/ADuCM3027/
ADuCM3029/ADuCM4050
AD8236/AD8237/ AD8421/AD8221/AD8220 AD8500/AD8502/
AD8504/ADA4505-1
/ADA4505-2/ADA4505-4/
AD8506/AD8508/
AD8546/AD8548
Product Type PPG Circuit TIA Amp Photodiode ADC
Model
AD8605/AD8606/
AD8546/AD8548/
AD8613/AD8617/
AD8619
ADPD2210/ADPD2211/
ADPD2212/ADPD2214
AD7091R/AD7124-4
/AD7915/AD4008/
AD4011/AD7949/AD7682
Product Type Wireless Analog Mux Switch
Model
ADF7020/
ADF7024/ADF7241
ADG719/ADG604/
ADG704/ADG839

Other

Design Resources

Evaluation Board
Circuits from the Lab®
  • Powering an ECG Front End in Battery Powered Patient Monitoring Applications (CN-0308) — analog.com/en/cn-0308.pdf
  • Precision Pulse Oximeter LED Current Sinks Using the ADA4505-2 Op Amp, the ADR1581 Shunt Reference, and the ADG1636 Switches (CN-0125) — analog.com/en/cn-0125.pdf
  • 2 MHz Bandwidth PIN Photodiode Preamp with Dark Current Compensation (CN-0272) — analog.com/en/cn-0272.pdf
