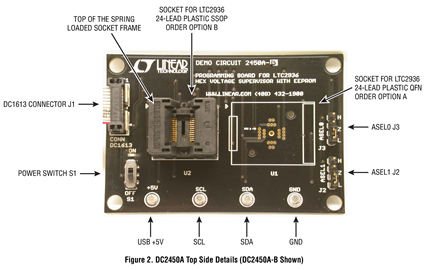

The DC2450A programming board contains the circuitry needed to program and verify the EEPROM of the LTC2936. This is its sole purpose. The LTC2936 comes in either a 24-pin SSOP or a 24-pin QFN package. The DC2450A-A supports the QFN and the DC2450A-B supports the SSOP package.
Documentation & Resources
DC2450A - Schematic1/25/201627K
DC2450A - Demo Manual1/25/20162M
DC2450A - Design Files1/25/2016ZIP1M
