DC1166A
LT3590EDC Demo Board | Buck Mode LED Driver, Tiny Package, 4.5V ≤ VIN ≤ 54V, VLED up to 40V at 50mA
Top
Overview
Product Details
Demonstration circuit 1166 is a 48V Buck-Mode LED Driver featuring the LT3590. The LT3590 is a fixed frequency buck mode converter specifically designed to drive up to 10 LEDs in series at up to 50mA LED current. Series connection of the LEDs results in uniform LED brightness, eliminating the need for ballast resistors. The demo board targets 48V power applications but has a wide 4.5V to 54V (55V absolute max) input voltage range.
Applicable Parts
Documentation & Resources
-

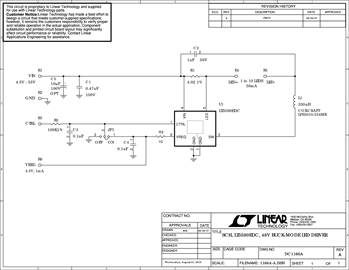

DC1166A - Schematic10/3/2016PDF24K
-
DC1166A - Demo Manual9/28/2016PDF430K
-
DC1166A - Design File10/3/2016ZIP1M
