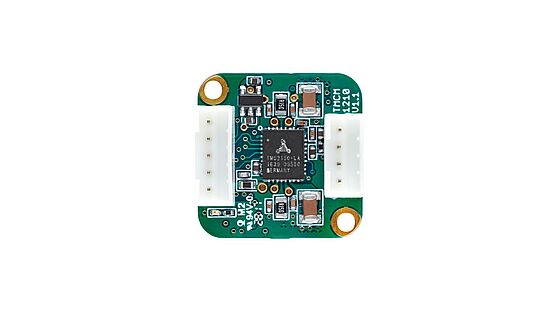

TMCM-1210

Motor mountable stepper motor controller/driver module 7 to 30V, 0.6A, 256 µSteps, SixPoint ramp controller with RS485 Interface, StallGuard, CoolStep, StealthChop

推荐新设计使用

不是您想寻找的产品？

去产品选项表

查看所有文档

提问

在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:

搜索

您可以在其他地方找到帮助

支持

ADI 一站式购物体验可以回答您的所有问题

访问 ADI 技术支持页面

在 ADI 论坛寻求帮助

在 EngineerZone 交流

FAQs

Sales & Ordering FAQs

特性

Motion Control

Motion profile calculation in hardware in real-time
Motion controller supports linear and sixPoint^™ ramps
On the fly alteration of motor parameters (e.g. position, velocity, acceleration)
High performance microcontroller (Cortex-M0+) for overall system control and serial communication protocol handling

Bipolar stepper motor driver

Up to 256 microsteps per full step
Highly integrated and highly efficient operation
Dynamic current control
stallGuard2^™ feature for stall detection

Interfaces

RS485 2-wire communication interface
Digital input IN0 (+24V compatible), can be used as reference switch or left and/or right stop switch input, also

Electrical Data

Supply voltage: +7V to +30V DC
Motor current: up to 0.6A RMS (programmable)

On board hall sensor

Absolute sensor within one motor rotation
12bit / 4096 steps / revolution max.
Low-cost sensor - suitable for low velocity applications (few hundred rpm) – e.g. initial reference search (together with HOME sensor input) after power-up

Software

TMCL^™ remote (direct mode) and standalone operation with memory for up to 876 TMCL commands
Fully supported by TMCL-IDE (PC based integrated development environment)

Mechanical Data

Board size: 20mm x 20mm, overall height 9mm max. (without mating connectors and cables)
Mounting holes compatible with NEMA 8 stepper motors (for mounting the board to the rear side of a NEMA 8 stepper motor using two of the four existing screw)

更多细节

The TMCM-1210 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic stallGuard2^™, coolStep^™, spreadCycle^™ chopper and stealthChop^™ technology and has a sixPoint^™ ramp generator. The TMCM-1210 is capable of driving up to 0.8A of current from each output (with proper heatsinking). It is designed for an operating voltage of 6 to 26V. The device provides a RS485 interface. An integrated protocol processor supplies a high level TMCL communication.

查看所有文档

提问

在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:

搜索

您可以在其他地方找到帮助

支持

ADI 一站式购物体验可以回答您的所有问题

访问 ADI 技术支持页面

在 ADI 论坛寻求帮助

在 EngineerZone 交流

FAQs

Sales & Ordering FAQs

技术文档 3

TMCM-1210 User Guide (Rev.0.93) 02/13/2019

Tmcm 1210 Hardware Manual Hw1.10 (Rev.0.93) 02/12/2021

Tmcm 1210 Tmcl Firmware Manual Fw1.12 (Rev.1.03) 11/23/2021

Evaluation Software 1

Short for Trinamic Motion Control Language-Integrated Development Environment, the TMCL-IDE is an integrated development environment made for developing applications using ADI Trinamic™ modules and chips. The GUI provides tools for easily setting parameters, for visualizing data in real-time, and for developing and debugging stand-alone applications with TMCL.
