TMCM-1076
推荐新设计使用Stepper motor controller/driver module 10 to 30V, 3A, 256 µSteps, with S/D and Uart Interface, StallGuard, CoolStep and StealthChop
产品详情
- Supply Voltage +10 to +30V DC
- Up to 3A RMS motor current
- Step and direction interface
- MicroPlyer™ to 256 microsteps
- StealthChop™ silent PWM mod
- SpreadCycle™ smart mixed decay
- StallGuard2™ load detection
- CoolStep™ autom. current scaling
- UART configuration interface

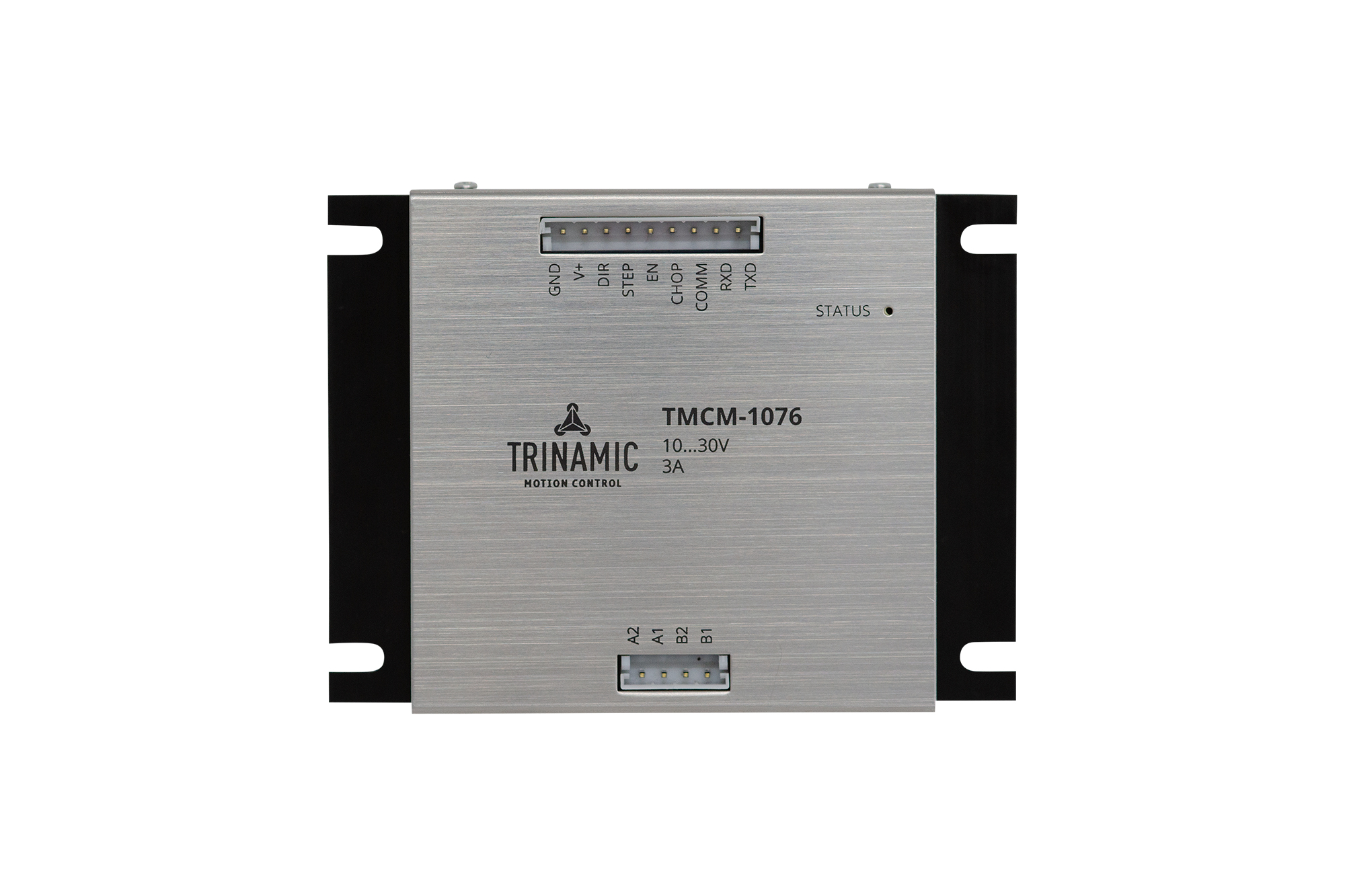

The TMCM-1076 is an easy to use stepper motor driver unit with state of the art feature set. It is highly integrated and offers a convenient handling.
The module is controlled via a step and direction interface. One configuration pin selects the current control mode between StealthChop™ for absolute silent motor control and SpreadCycle™ for high speed. A TTL UART interface allows for more advanced configuration and permanent parameter storage via TMCL™- IDE.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
APPLICATIONS:
- Lab-Automation
- Manufacturing
- Robotics
- Factory Automation
- CNC
参考资料
软件资源
Evaluation Software 1
TMCL-IDE
Short for Trinamic Motion Control Language-Integrated Development Environment, the TMCL-IDE is an integrated development environment made for developing applications using ADI Trinamic™ modules and chips. The GUI provides tools for easily setting parameters, for visualizing data in real-time, and for developing and debugging stand-alone applications with TMCL.
