TMC2100

Silent stepper motor driver 5 to 46V, up to 1.2A with S/D Interface, 256 µSteps, SpreadCycle and Stealthchop

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
产品模型 4
特性
  • 2-phase stepper motors up to 2.0A coil current (2.5A peak)
  • Standalone Driver
  • Voltage Range 4.75to 46V DC
  • Smooth Run 256 microsteps from 4 or 16 microsteps input (or from halfstepping, SpreadCycle only.
  • Step/Dir Interface with microstep interpolation MicroPlyer
  • StealthChop for quiet operation and smooth motion
  • SpreadCycle highly dynamic motor control chopper
  • Integrated Current Sense Option
  • Standstill Current Reduction
  • Full Protection & Diagnostics (two outputs)
  • Small Size 5x6mm2 QFN36 package or TQFP48 package
更多细节
show more Icon

The TMC2100 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the completely noiseless current control mode StealthChop™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2100 is capable of driving up to 2.5A of current from each output (with proper heatsinking). TMC2100 is designed for a supply voltage of 5...46V. The device has a step and direction interface and can be configured with digital pins.

Applications

  • 3D printers
  • Textile, Sewing Machines
  • Office Automation
  • Consumer, Home
  • CCTV, Security
  • ATM, Cash recycler
  • POS
  • Printers & Scanners

Technical Details

  TMC2100-LA TMC2100-TA
Status Active Active
Axes 1 1
Motor Supply 5 to 46V 5 to 46V
Microsteps 1 to 256 1 to 256
Step/Dir
MicroPlyer
SpreadCycle
StealthChop
Phase Current, RMS 1.2A 1.4A
Package QFN36 (5x6) eTQFP48 (7x7)
产品模型 4

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
TMC2100-LA
  • HTML
  • HTML
TMC2100-LA-T
  • HTML
  • HTML
TMC2100-TA
  • HTML
  • HTML
TMC2100-TA-T
  • HTML
  • HTML
软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 1

reference details image

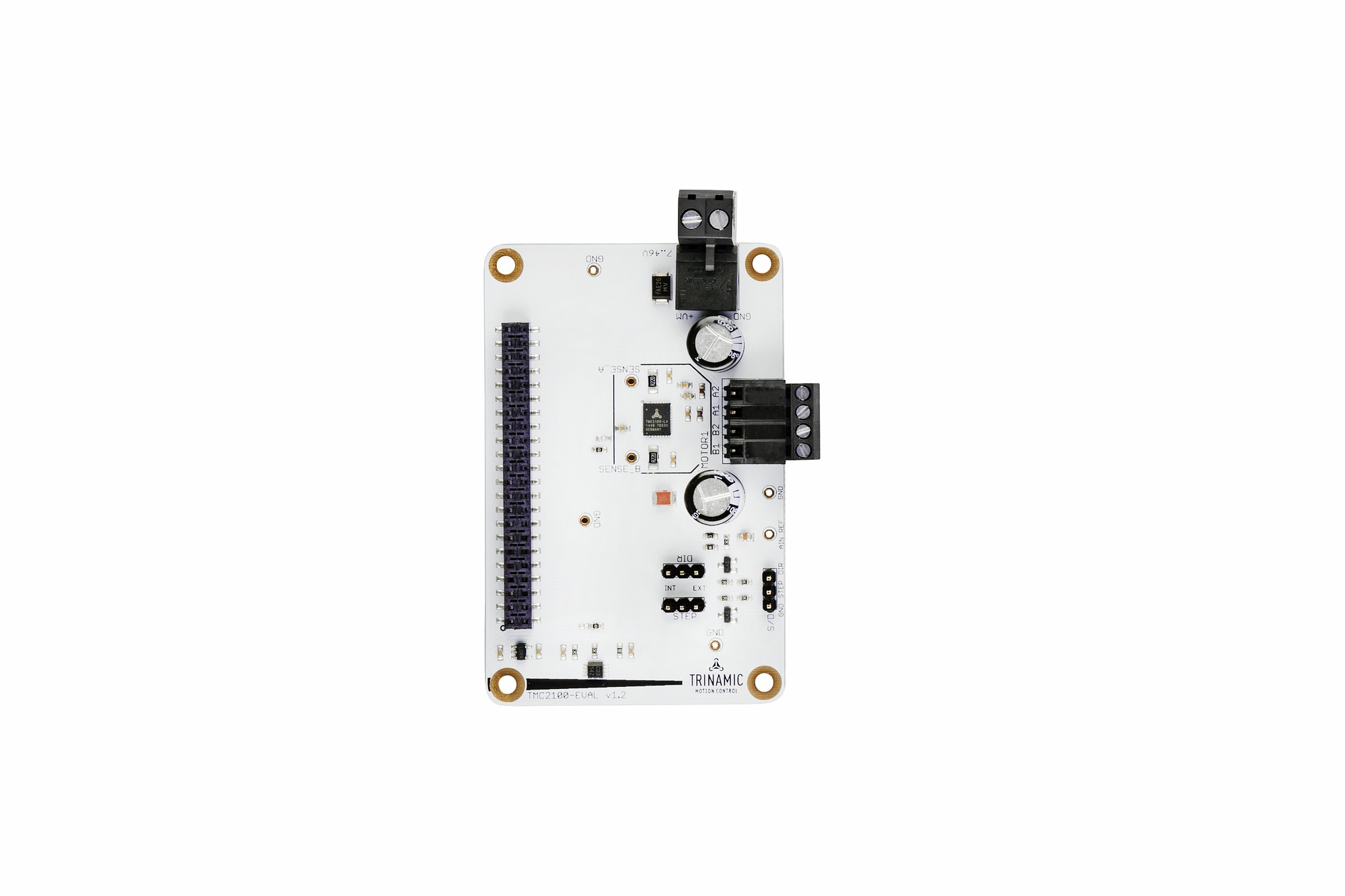

TMC2100-EVAL

Evaluation Board for TMC2100

zoom

TMC2100-EVAL

Evaluation Board for TMC2100

Evaluation Board for TMC2100

特性和优点

  • Step/Dir
  • MicroPlyer™
  • SpreadCycle™
  • StealthChop™
  • 1 to 256 Microsteps
  • 0.96ARMS, 46V

产品详情

The TMC2100-EVAL allows you to explore all functions of the TMC2100-LA.

The TMC2100-EVAL-KIT is a set of one MCU board Landungsbruecke, an Eselsbruecke bridge board and one TMC2100-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2100 are accessible with probes on the Eselsbruecke bridge board. To simplify the transfer to your own processor platform the MCU board can be disconnected.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE
