LTC4231

微功率热插拔控制器

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • 可将电路板安全插入电源,或从电源中移除
  • 电源电流:4µA
  • 关断电流:0.3µA
  • 宽工作电压范围:2.7V36V
  • 反向电源电压保护可达-40V
  • 带断路器的可调模拟电流限制功能
  • 发生电流故障时执行自动重试或锁定
  • 过压和欠压监控
  • 控制单沟道或背靠背N沟道MOSFET
  • 12引脚MSOP3mm × 3mm QFN封装
  • AEC-Q100通过汽车应用认证
  • 更多细节
    show more Icon

    LTC®4231 是一款微功率热插拔 (Hot Swap) 控制器,其允许在工作中的电源上安全地进行电路板的插拔操作。一个内部高压侧开关驱动器负责控制一个外部 N 沟道 MOSFET。背对背 MOSFET 可用于提供低至–40V 的反向电源保护。

    LTC4231 可提供一个防反跳延迟并允许 GATE 以一种可调速率斜坡上升。在启动之后,LTC4231 的静态电流在正常操作期间 (输出处于运行状态) 下降至 4μA。UVL、UVH、OV 和 GNDSW 周期性地监察过压和欠压情况,并将总静态电流保持在低水平。把 SHDN 拉至低电平可关断 LTC4231,此时静态电流减小至 0.3μA。

    在过流故障期间,LTC4231 在运行一个可调定时器的同时主动地限制电流。LTC4231-1 在电流故障之后保持关断状态,而 LTC4231-2 则在一个冷却周期之后自动重新施加电源。



    应用

    • 电池供电型设备
    • 太阳能供电型系统
    • 便携式仪器
    • 汽车电池保护
    • 能量收集

    产品技术资料帮助

    close icon

    ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

    参考资料

    参考资料

    产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
    LTC4231CMS-1#PBF
    • HTML
    • HTML
    LTC4231CMS-1#TRPBF
    • HTML
    • HTML
    LTC4231CMS-2#PBF
    • HTML
    • HTML
    LTC4231CMS-2#TRPBF
    • HTML
    • HTML
    LTC4231CUD-1#PBF
    • HTML
    • HTML
    LTC4231CUD-1#TRPBF
    • HTML
    • HTML
    LTC4231CUD-2#PBF
    • HTML
    • HTML
    LTC4231CUD-2#TRPBF
    • HTML
    • HTML
    LTC4231HMS-1#PBF
    • HTML
    • HTML
    LTC4231HMS-1#TRPBF
    • HTML
    • HTML
    LTC4231HMS-1#WPBF
    • HTML
    • HTML
    LTC4231HMS-1#WTRPBF
    • HTML
    • HTML
    LTC4231HMS-2#PBF
    • HTML
    • HTML
    LTC4231HMS-2#TRPBF
    • HTML
    • HTML
    LTC4231HMS-2#WPBF
    • HTML
    • HTML
    LTC4231HMS-2#WTRPBF
    • HTML
    • HTML
    LTC4231HUD-1#PBF
    • HTML
    • HTML
    LTC4231HUD-1#TRPBF
    • HTML
    • HTML
    LTC4231HUD-2#PBF
    • HTML
    • HTML
    LTC4231HUD-2#TRPBF
    • HTML
    • HTML
    LTC4231IMS-1#PBF
    • HTML
    • HTML
    LTC4231IMS-1#TRPBF
    • HTML
    • HTML
    LTC4231IMS-1#WPBF
    • HTML
    • HTML
    LTC4231IMS-1#WTRPBF
    • HTML
    • HTML
    LTC4231IMS-2#PBF
    • HTML
    • HTML
    LTC4231IMS-2#TRPBF
    • HTML
    • HTML
    LTC4231IMS-2#WPBF
    • HTML
    • HTML
    LTC4231IMS-2#WTRPBF
    • HTML
    • HTML
    LTC4231IUD-1#PBF
    • HTML
    • HTML
    LTC4231IUD-1#TRPBF
    • HTML
    • HTML
    LTC4231IUD-2#PBF
    • HTML
    • HTML
    LTC4231IUD-2#TRPBF
    • HTML
    • HTML

    根据型号筛选

    reset

    重置过滤器

    产品型号

    产品生命周期

    PCN

    2月 4, 2020

    - 20_0129

    Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

    LTC4231CMS-1#PBF

    量产

    LTC4231CMS-1#TRPBF

    量产

    LTC4231CMS-2#PBF

    量产

    LTC4231CMS-2#TRPBF

    量产

    LTC4231HMS-1#PBF

    量产

    LTC4231HMS-1#TRPBF

    量产

    LTC4231HMS-1#WPBF

    LTC4231HMS-1#WTRPBF

    LTC4231HMS-2#PBF

    量产

    LTC4231HMS-2#TRPBF

    量产

    LTC4231HMS-2#WPBF

    LTC4231HMS-2#WTRPBF

    LTC4231IMS-1#PBF

    量产

    LTC4231IMS-1#TRPBF

    量产

    LTC4231IMS-1#WPBF

    LTC4231IMS-1#WTRPBF

    LTC4231IMS-2#PBF

    量产

    LTC4231IMS-2#TRPBF

    量产

    LTC4231IMS-2#WPBF

    LTC4231IMS-2#WTRPBF

    10月 11, 2022

    - 22_0244

    Epoxy Change from Henkel 8290 to 8290A for MSOP Package

    LTC4231HMS-1#WPBF

    LTC4231HMS-1#WTRPBF

    LTC4231HMS-2#WPBF

    LTC4231HMS-2#WTRPBF

    LTC4231IMS-1#WPBF

    LTC4231IMS-1#WTRPBF

    LTC4231IMS-2#WPBF

    LTC4231IMS-2#WTRPBF

    7月 12, 2022

    - 22_0157

    UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages [With Modification in BOM]

    LTC4231HMS-1#WPBF

    LTC4231HMS-1#WTRPBF

    LTC4231HMS-2#WPBF

    LTC4231HMS-2#WTRPBF

    LTC4231IMS-1#WPBF

    LTC4231IMS-1#WTRPBF

    LTC4231IMS-2#WPBF

    LTC4231IMS-2#WTRPBF

    6月 21, 2022

    - 22_0050

    UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

    LTC4231HMS-1#WPBF

    LTC4231HMS-1#WTRPBF

    LTC4231HMS-2#WPBF

    LTC4231HMS-2#WTRPBF

    LTC4231IMS-1#WPBF

    LTC4231IMS-1#WTRPBF

    LTC4231IMS-2#WPBF

    LTC4231IMS-2#WTRPBF

    根据型号筛选

    reset

    重置过滤器

    产品型号

    产品生命周期

    PCN

    2月 4, 2020

    - 20_0129

    arrow down

    Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

    LTC4231CMS-1#PBF

    量产

    LTC4231CMS-1#TRPBF

    量产

    LTC4231CMS-2#PBF

    量产

    LTC4231CMS-2#TRPBF

    量产

    LTC4231HMS-1#PBF

    量产

    LTC4231HMS-1#TRPBF

    量产

    LTC4231HMS-1#WPBF

    LTC4231HMS-1#WTRPBF

    LTC4231HMS-2#PBF

    量产

    LTC4231HMS-2#TRPBF

    量产

    LTC4231HMS-2#WPBF

    LTC4231HMS-2#WTRPBF

    LTC4231IMS-1#PBF

    量产

    LTC4231IMS-1#TRPBF

    量产

    LTC4231IMS-1#WPBF

    LTC4231IMS-1#WTRPBF

    LTC4231IMS-2#PBF

    量产

    LTC4231IMS-2#TRPBF

    量产

    LTC4231IMS-2#WPBF

    LTC4231IMS-2#WTRPBF

    10月 11, 2022

    - 22_0244

    arrow down

    Epoxy Change from Henkel 8290 to 8290A for MSOP Package

    LTC4231HMS-1#WPBF

    LTC4231HMS-1#WTRPBF

    LTC4231HMS-2#WPBF

    LTC4231HMS-2#WTRPBF

    LTC4231IMS-1#WPBF

    LTC4231IMS-1#WTRPBF

    LTC4231IMS-2#WPBF

    LTC4231IMS-2#WTRPBF

    7月 12, 2022

    - 22_0157

    arrow down

    UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages [With Modification in BOM]

    LTC4231HMS-1#WPBF

    LTC4231HMS-1#WTRPBF

    LTC4231HMS-2#WPBF

    LTC4231HMS-2#WTRPBF

    LTC4231IMS-1#WPBF

    LTC4231IMS-1#WTRPBF

    LTC4231IMS-2#WPBF

    LTC4231IMS-2#WTRPBF

    6月 21, 2022

    - 22_0050

    arrow down

    UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

    LTC4231HMS-1#WPBF

    LTC4231HMS-1#WTRPBF

    LTC4231HMS-2#WPBF

    LTC4231HMS-2#WTRPBF

    LTC4231IMS-1#WPBF

    LTC4231IMS-1#WTRPBF

    LTC4231IMS-2#WPBF

    LTC4231IMS-2#WTRPBF

    软件和型号相关生态系统

    软件和型号相关生态系统

    评估套件

    评估套件 2

    reference details image

    DC2161A-A

    LTC4231IMS-1 Demo Board | Micropower Hot Swap Controller with Latch-Off

    zoom

    DC2161A-A

    LTC4231IMS-1 Demo Board | Micropower Hot Swap Controller with Latch-Off

    LTC4231IMS-1 Demo Board | Micropower Hot Swap Controller with Latch-Off

    产品详情

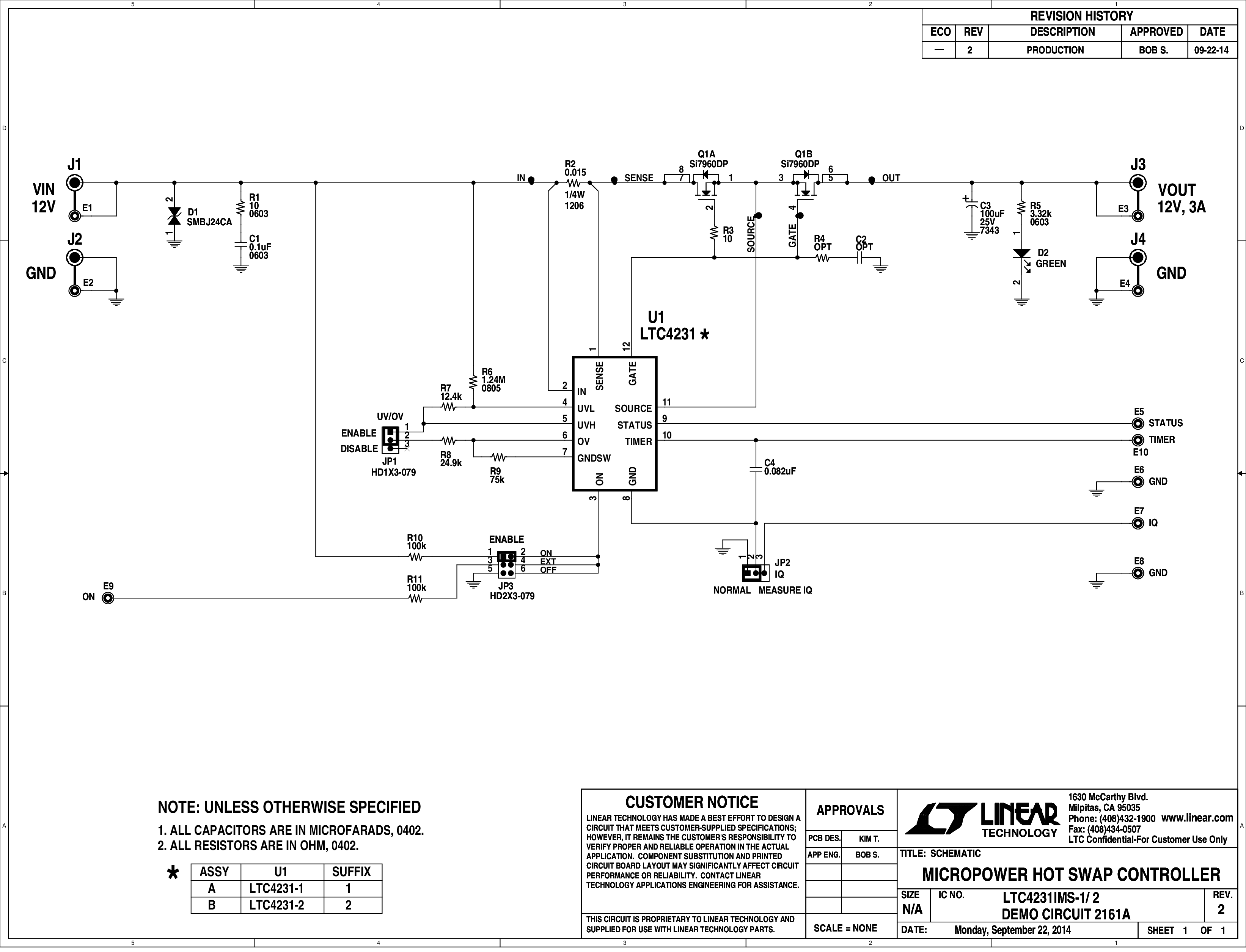

    Demonstration circuit 2161A showcases the LTC4231 Micropower Hot Swap™ Controller in a 12V, 3A application. Included on the board are input overvoltage and reverse voltage protection, input voltage dividers for UV and OV detection, an output voltage LED, jumpers to disable UV/OV, manual and remote enable control, and quiescent current measurement. There are turrets provided to monitor input voltage, output voltage, output status, quiescent current, several ground connections, timer pin, and control the ON pin. Input, output and return voltages are provided on banana jacks.

    reference details image

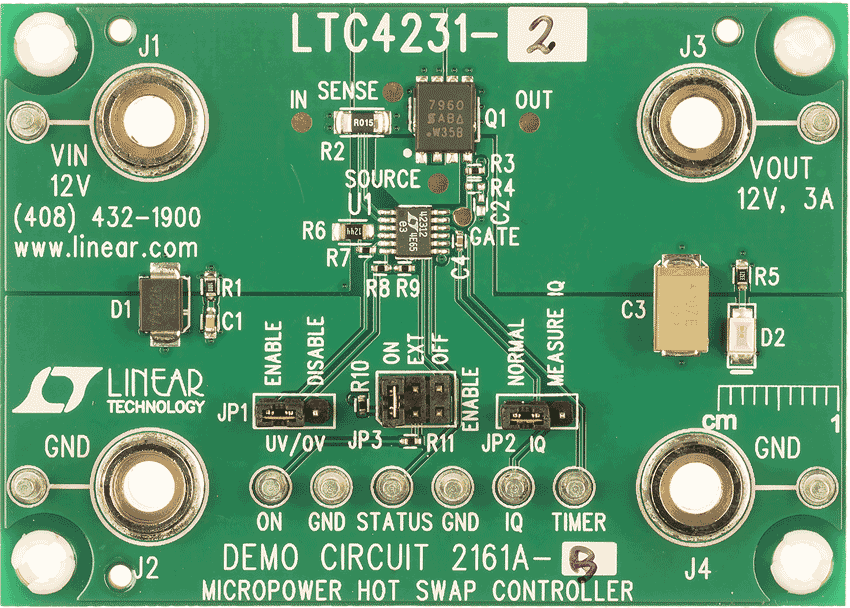

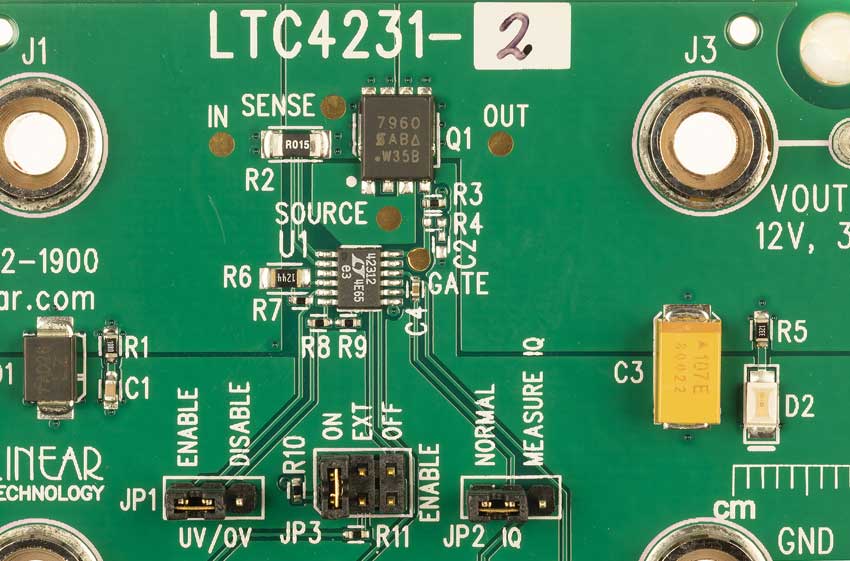

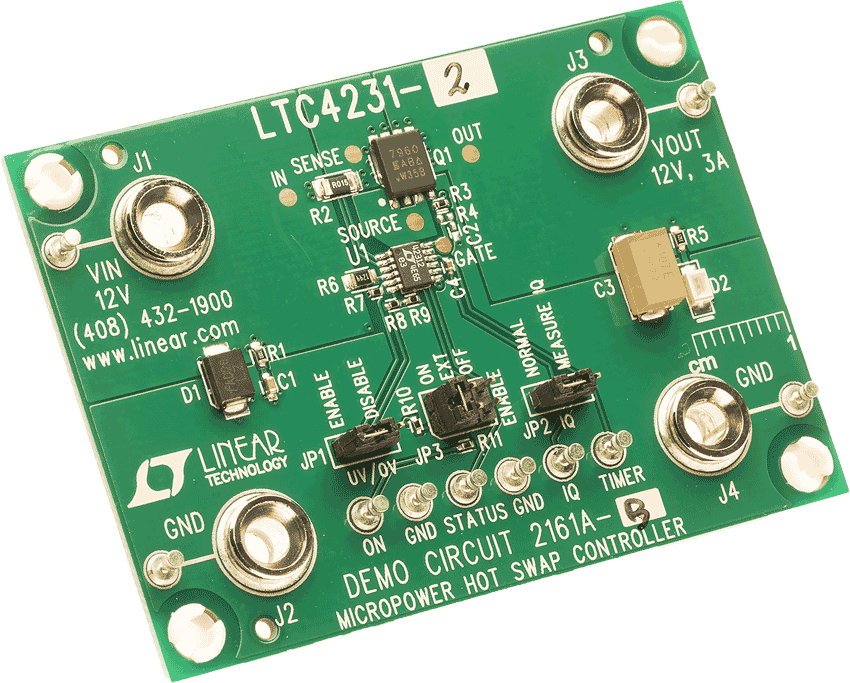

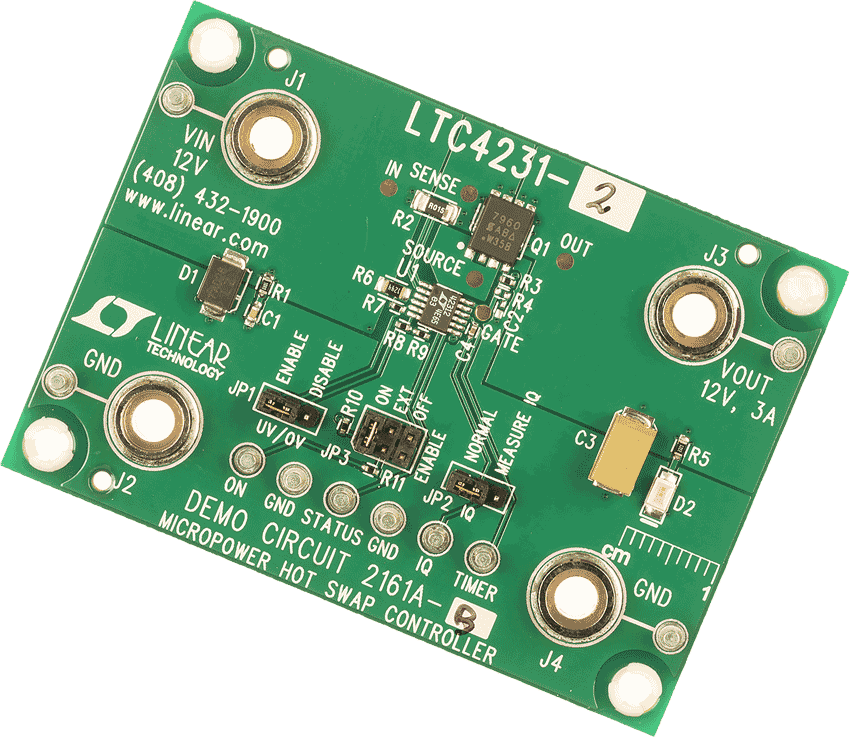

    DC2161A-B

    LTC4231IMS-2 Demo Board | Micropower Hot Swap Controller with Auto-Retry

    zoom

    DC2161A-B

    LTC4231IMS-2 Demo Board | Micropower Hot Swap Controller with Auto-Retry

    LTC4231IMS-2 Demo Board | Micropower Hot Swap Controller with Auto-Retry

    产品详情

    Demonstration circuit 2161A showcases the LTC4231 Micropower Hot Swap™ Controller in a 12V, 3A application. Included on the board are input overvoltage and reverse voltage protection, input voltage dividers for UV and OV detection, an output voltage LED, jumpers to disable UV/OV, manual and remote enable control, and quiescent current measurement. There are turrets provided to monitor input voltage, output voltage, output status, quiescent current, several ground connections, timer pin, and control the ON pin. Input, output and return voltages are provided on banana jacks.





    工具和仿真

    工具及仿真模型 1

    LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。
