LTC2000A

16 / 14 / 11 位、2.7Gsps DAC

更多 showmore-icon

Info: : 量产 tooltip
Info: : 量产 tooltip
产品详情
特性
  • 在 50MHz fOUT 具有 80dBc SFDR
  • 在 DC 至 1080MHz fOUT 范围内具有 >68dBc SFDR
  • 可兼容 40mA 标称全标度、±1V 输出
  • 10mA 至 60mA 可调全标度电流范围
  • 单或双端口 DDR LVDS 和 DHSTL 接口
  • 低延迟 (对于单端口为 7.5 个周期,对于双端口为 11 个周期)
  • 在 DC 至 1000MHz fOUT 范围内具有 >78dBc 双音调互调失真 (IMD)
  • 在用于 65MHz fOUT 的 1MHz 偏移频率下具有 –156dBc/Hz 附加相位噪声
  • 170 引脚 (9mm x 15mm) BGA 封装
更多细节
show more Icon

LTC®2000A 是一个 16 / 14 / 11 位 2.7Gsps 电流导引 DAC 系列,具有卓越的频谱纯度。

单 (1.35Gsps 模式) 或双 (2.7Gsps 模式) 端口源同步 LVDS 接口采用一个 675MHz DDR 数据时钟 (其可与数据正交或同相) 以支持高达 1.35Gbps 的数据速率。一个内部同步器可自动地使数据与 DAC 采样时钟对准。

诸如图形发生、LVDS 输出环路和结温检测等其他功能简化了系统开发和测试。

一个串行外设接口 (SPI) 端口提供了内部寄存器的配置和回读。LTC2000A 采用 1.86V 和 3.3V 电源供电运作,在 2.7Gsps采样速率下的功耗为 2.41W,而在 1.35Gsps 时功耗则为 1.43W。



Applications

  • 宽带通信系统
  • 电缆数据服务接口规范电缆调制解调器终端系统 (DOCSIS CMTS)
  • 直接 RF 合成
  • 雷达
  • 仪表
  • 自动测试设备

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTC2000ACY-11#PBF
  • HTML
  • HTML
LTC2000ACY-14#PBF
  • HTML
  • HTML
LTC2000ACY-16#PBF
  • HTML
  • HTML
LTC2000AIY-11#PBF
  • HTML
  • HTML
LTC2000AIY-14#PBF
  • HTML
  • HTML
LTC2000AIY-16#PBF
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

7月 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTC2000ACY-11#PBF

量产

LTC2000ACY-14#PBF

量产

LTC2000ACY-16#PBF

量产

LTC2000AIY-11#PBF

量产

LTC2000AIY-14#PBF

量产

LTC2000AIY-16#PBF

量产

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

7月 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTC2000ACY-11#PBF

量产

LTC2000ACY-14#PBF

量产

LTC2000ACY-16#PBF

量产

LTC2000AIY-11#PBF

量产

LTC2000AIY-14#PBF

量产

LTC2000AIY-16#PBF

量产

软件和型号相关生态系统

软件和型号相关生态系统


Verilog Code for Aligning 3 LTC2000s
Info:False

LinearLab Tools
Info:False

A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.


Demo Board Source Code (Quartus Archive)
Info:False

LTDACGen
Info:False

The LTDACGen System is designed to demonstrate and support the evaluation of high speed, high performance DACs.

找不到您所需的软件或驱动?

申请驱动/软件
评估套件

评估套件 6

reference details image

DC2085A-E

LTC2000A-14 Demo Board | 14-Bit, 2.7Gsps DAC with DDR LVDS Interface

zoom

DC2085A-E

LTC2000A-14 Demo Board | 14-Bit, 2.7Gsps DAC with DDR LVDS Interface

LTC2000A-14 Demo Board | 14-Bit, 2.7Gsps DAC with DDR LVDS Interface

产品详情

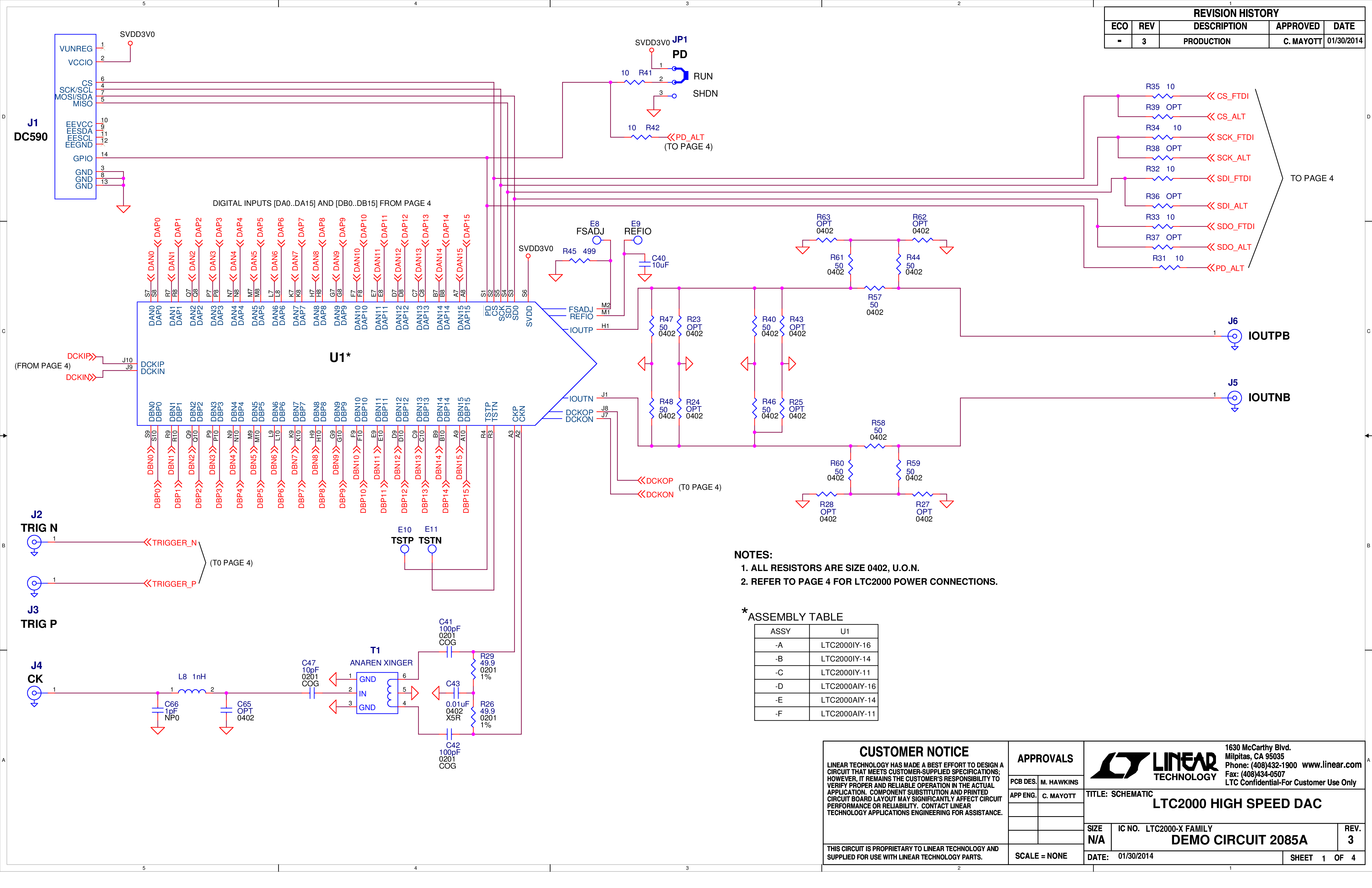

Demonstration circuit 2085 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2085 supports the complete family of the LTC2000 including 16, 14 and 11 bit parts.


Companion Board : Stratix board

reference details image

DC2085A-F

LTC2000A-11 Demo Board | 11-Bit, 2.7Gsps DAC with DDR LVDS Interface

zoom

DC2085A-F

LTC2000A-11 Demo Board | 11-Bit, 2.7Gsps DAC with DDR LVDS Interface

LTC2000A-11 Demo Board | 11-Bit, 2.7Gsps DAC with DDR LVDS Interface

产品详情

Demonstration circuit 2085 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2085 supports the complete family of the LTC2000 including 16, 14 and 11 bit parts.


Companion Board : Stratix board

reference details image

DC2303A-E

LTC2000A-14 Demo Board (FMC) | 14-Bit 2.7Gsps DAC with DDR LVDS Interface

zoom

DC2303A-E

LTC2000A-14 Demo Board (FMC) | 14-Bit 2.7Gsps DAC with DDR LVDS Interface

LTC2000A-14 Demo Board (FMC) | 14-Bit 2.7Gsps DAC with DDR LVDS Interface

产品详情

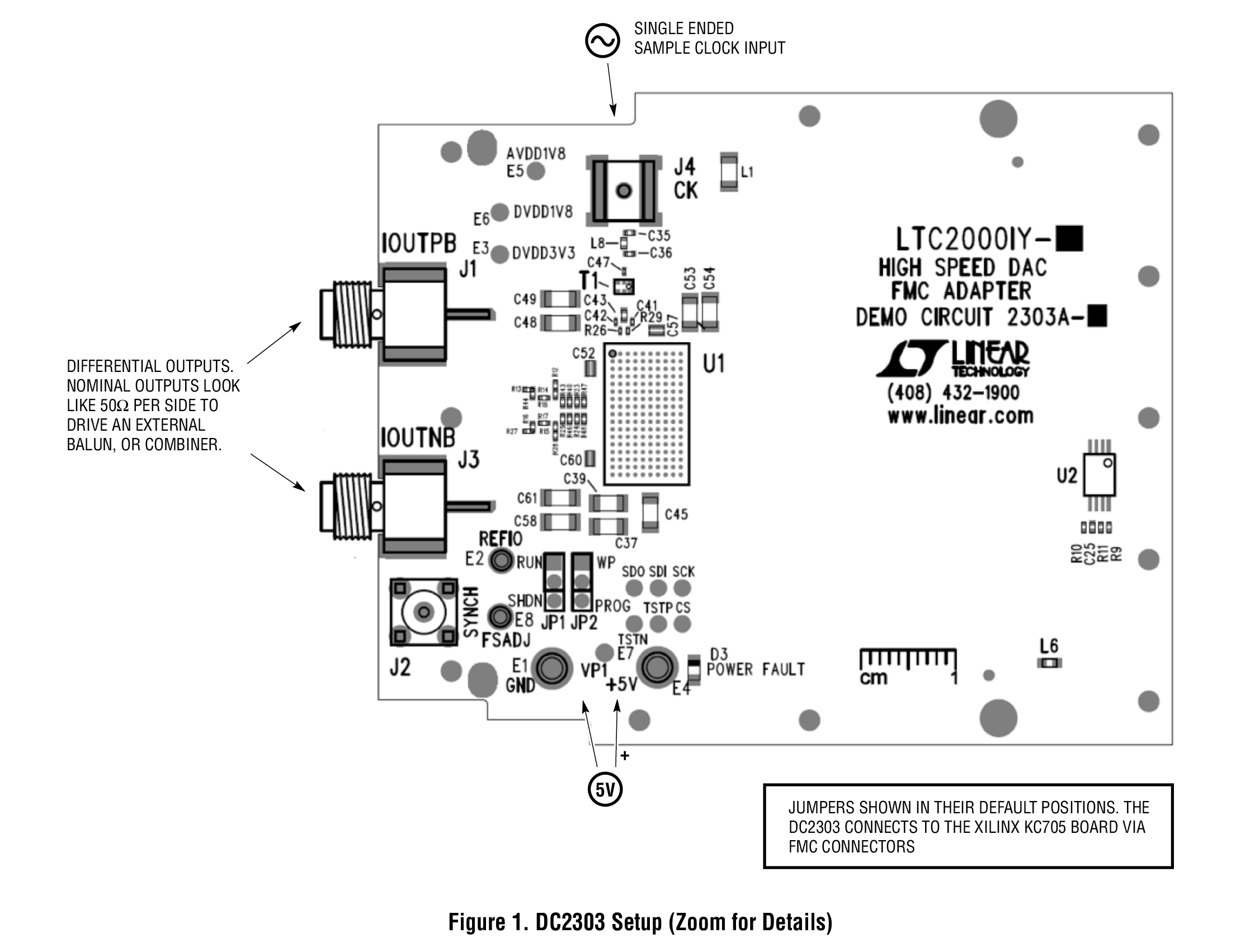

Demonstration circuit 2303 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2303 supports the complete family of the LTC2000 including 16-, 14- and 11-bit parts.

Companion Board: Kintex Board
reference details image

DC2303A-D

LTC2000A-16 Demo Board (FMC) | 16-Bit 2.7Gsps DAC with DDR LVDS Interface

zoom

DC2303A-D

LTC2000A-16 Demo Board (FMC) | 16-Bit 2.7Gsps DAC with DDR LVDS Interface

LTC2000A-16 Demo Board (FMC) | 16-Bit 2.7Gsps DAC with DDR LVDS Interface

产品详情

Demonstration circuit 2303 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2303 supports the complete family of the LTC2000 including 16-, 14- and 11-bit parts.

Companion Board: Kintex Board
reference details image

DC2303A-F

LTC2000A-11 Demo Board (FMC) | 11-Bit 2.7Gsps DAC with DDR LVDS Interface

zoom

DC2303A-F

LTC2000A-11 Demo Board (FMC) | 11-Bit 2.7Gsps DAC with DDR LVDS Interface

LTC2000A-11 Demo Board (FMC) | 11-Bit 2.7Gsps DAC with DDR LVDS Interface

产品详情

Demonstration circuit 2303 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2303 supports the complete family of the LTC2000 including 16-, 14- and 11-bit parts.


Companion Board: Kintex Board


reference details image

DC2085A-D

LTC2000A-16 Demo Board | 16-Bit, 2.7Gsps DAC with DDR LVDS Interface

zoom

DC2085A-D

LTC2000A-16 Demo Board | 16-Bit, 2.7Gsps DAC with DDR LVDS Interface

LTC2000A-16 Demo Board | 16-Bit, 2.7Gsps DAC with DDR LVDS Interface

产品详情

Demonstration circuit 2085 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2085 supports the complete family of the LTC2000 including 16, 14 and 11 bit parts.


Companion Board : Stratix board
