切換開關模式電源電流感測——第一部分：基本知識

作者: Henry Zhang、Mike Shriver和Kevin B. Scott

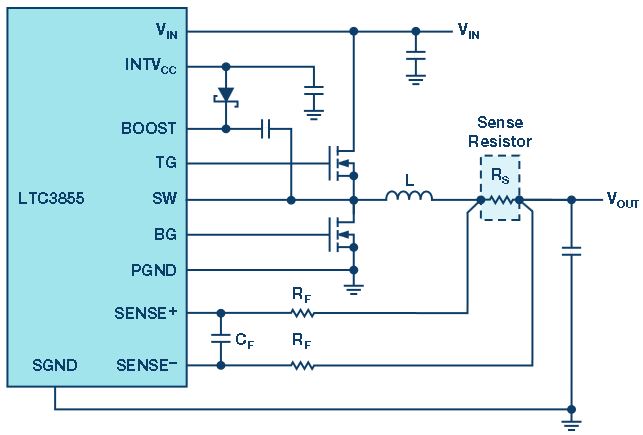

電流模式控制由於其高可靠性、迴路補償設計簡單、負載分配功能簡單可靠的特點，而被廣泛用於切換開關模式電源。電流感測訊號是電流模式切換開關模式電源設計的重要組成部分，它用於調節輸出並提供過流保護。圖1顯示了 LTC3855 同步切換開關模式降壓電源的電流感測電路。LTC3855是一款具有周期對周期限流功能的電流模式控制元件。感測電阻RS監測電流。

Figure 1

圖1.切換開關模式電源電流感測電阻(RS)

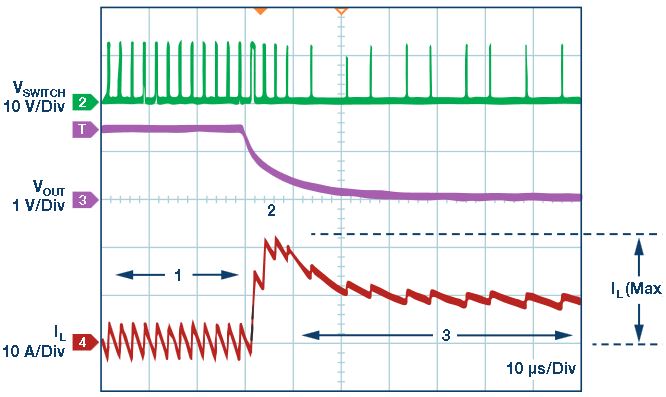

圖2顯示了兩種情況下電感電流的示波器圖像：第一種情況使用電感電流能夠驅動的負載（紅線），而在第二種情況下，輸出為短路（紫線）。

Figure 2

圖2.LTC3855限流與折返示例，在1.5 V/15 A供電軌上測量。

最初，峰值電感電流由選定的電感值、電源切換開關導通時間、電路的輸入和輸出電壓以及負載電流設置（圖中用"1"表示）。當電路短路時，電感電流迅速上升，直至達到限流點，即RS × IINDUCTOR (IL)等於最大電流感測電壓，以保護元件和下游電路（圖中用"2"表示）。然後，內建的電流折返限制（圖中數位"3"）進一步降低了電感電流，以將熱應力降至較低。

電流感測還有其他的作用。在多相電源設計中，利用它能實現精確均流。對於輕負載電源設計，它可以防止電流反向流動，從而提高效率（反向電流指反向流過電感的電流，即從輸出到輸入的電流，這在某些應用中可能不合需求，甚至具破壞性）。另外，當多相應用的負載較小時，電流感測可用來減少所需的相數，從而提高電路效率。對於需要電流源的負載，電流感測可將電源轉換為定電流源，以用於LED驅動、電池充電和驅動鐳射等應用。

在本系列的第二部分"何處放置電流感測電阻"中，我們將說明在電路的哪一個分支中放置電流感測電阻，以及其如何影響操作。
