概览

产品详情

Demonstration circuit 2263A is a high current, high efficiency, dual output/polyphase synchronous buck converter featuring the LTC3887EUJ, a dual-phase current mode controller. The LTC3887 has the PMBus interface and the power system management functions. The DC2263A uses discrete MOSFETs in the power stage. The input range of this board is from 7V to 14V. The output voltage can be programmed from 0.8V to 1.8V (1.0V default) with an output current up to 25A per phase. The DC2263A has two versions: The DC2263A-A uses a sense resistor and provides two outputs while the DC2263A-B uses DCR current sensing and provides a dual-phase single output.

相关产品

文档

  • 查看全部 (3)

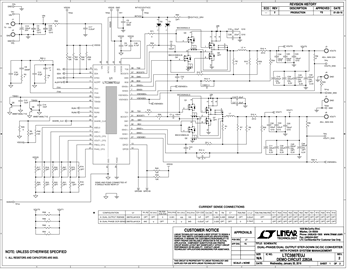

  • 演示板电路图 (1)
  • 用户手册 (1)
  • 评估板设计文件 (1)
    • Document Type

    软件

    设计工具

    LTpowerPlay®
    LTpowerPlay®是一款功能强大且基于Windows的开发环境，支持凌力尔特的数字电源系统管理(PSM)产品。
