概览

产品详情

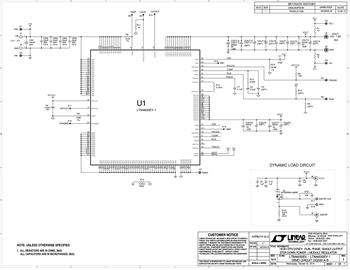

Demonstration circuit 2081A-B features the LTM4630EY-1, the high efficiency, high density, dual 18A, switch mode step-down μModule® regulator with ±0.8% total DC output accuracy. The input voltage is from 4.5V to 15V. The output voltage is programmable from 0.6V to 1.8V. DC2081A-B is configured as dual-phase, single-output, which can deliver up to 36A maximum. With the help of external compensation, ±3% transient accuracy can be achieved with 25% load step. The board designs with minimum components to demonstrate this high efficiency, high density μModule.

相关产品

文档

  • 查看全部 (3)
  • 演示板电路图 (1)
  • 用户手册 (1)
  • 评估板设计文件 (1)
    • Document Type

    软件

    在线购买

    所示报价为单片价格

    以上评估板报价仅供人民币结算及大陆购买使用， ADI均提供正规发票，如需美金结算及其他地区购买请直接跳转至英文页面进行购买。
