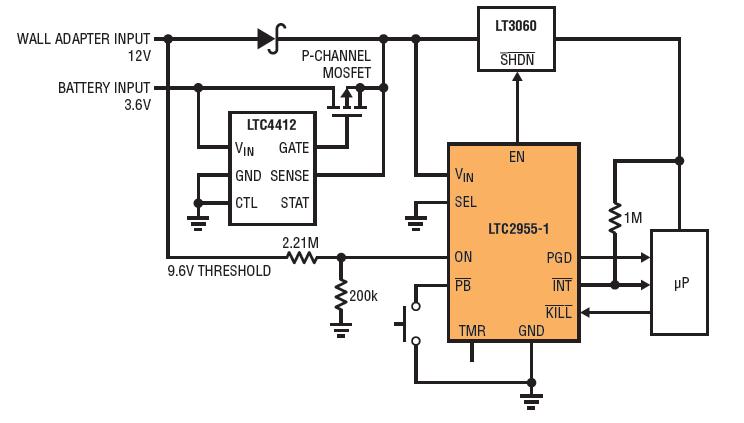

Pushbutton on/off control for battery-powered device, with automatic turn-on when the device is plugged in

This circuit shows a typical LTC2955-1 application for a handheld device. The 3.6V supply is produced directly from the handheld’s battery; the 12V secondary supply comes from a wall adapter. Both the 3.6V and 12V inputs are connected to the LT3060 regulator input via diode-OR so that either supply can power the system. The LTC4412 is an ideal diode controller that controls the P-channel MOSFET to reduce the voltage drop across the diode connected to the 3.6V supply.

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
